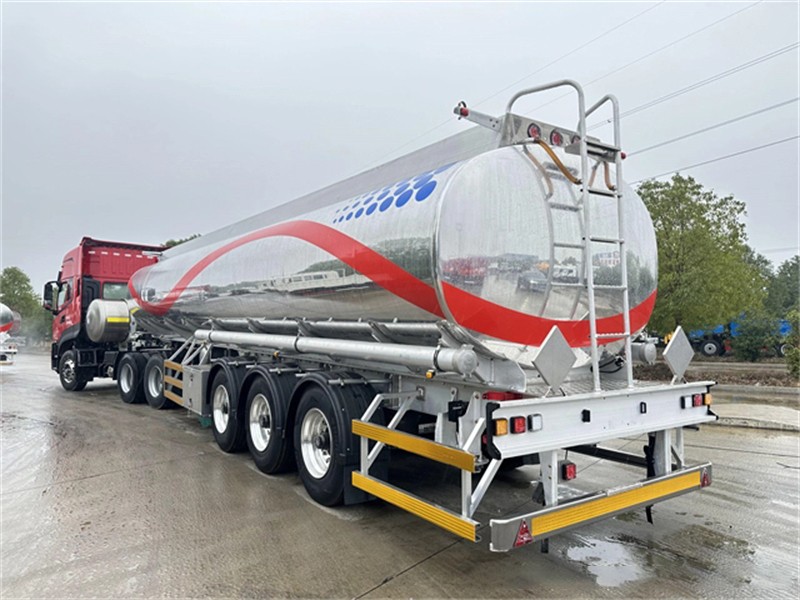

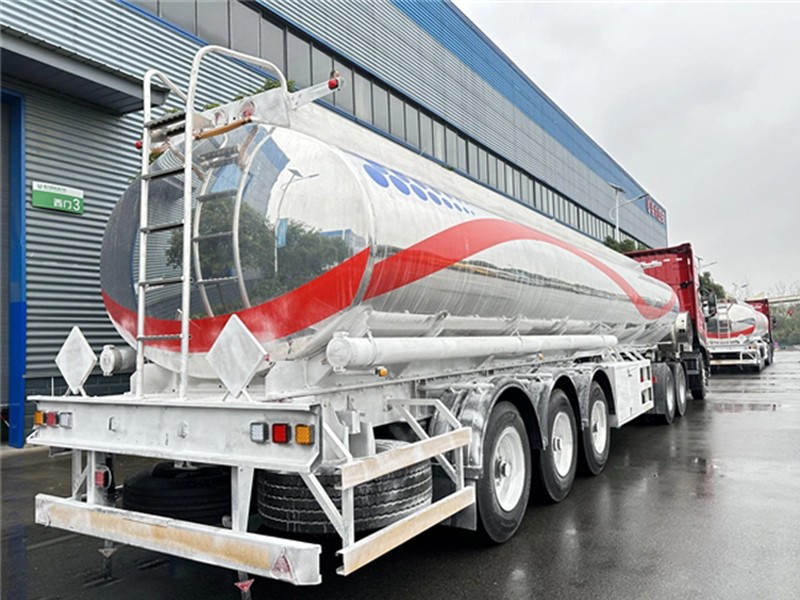

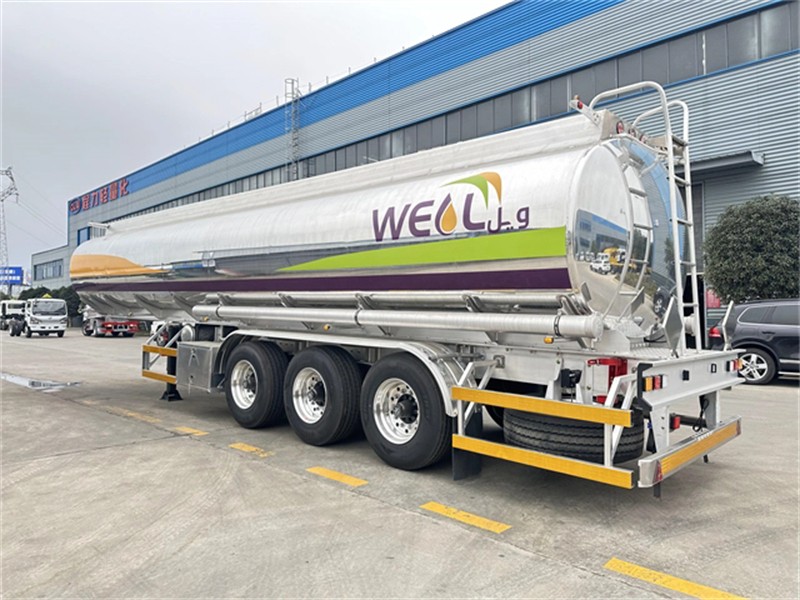

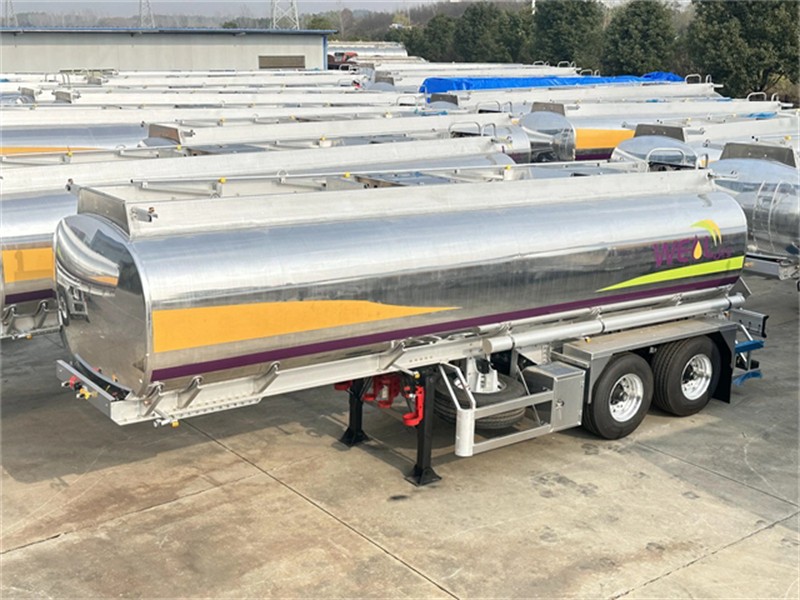

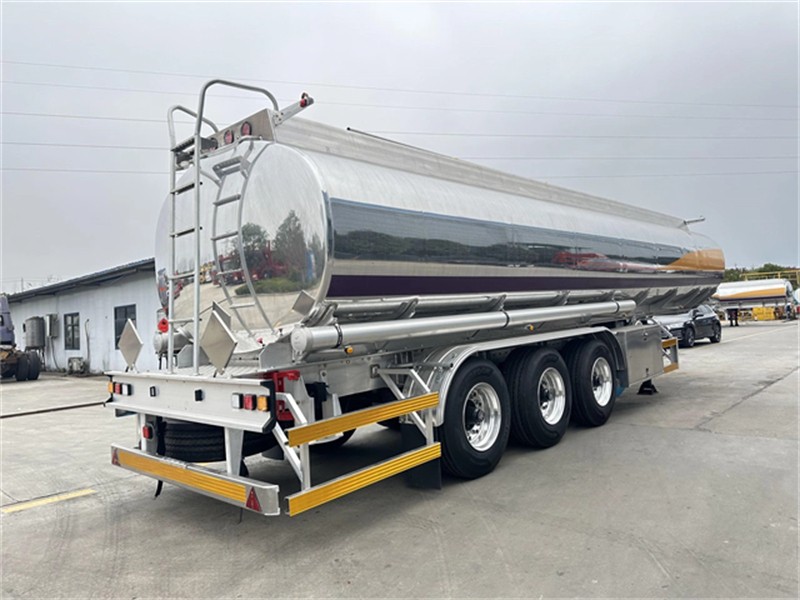

The tank of this product is meticulously crafted from high-quality mirror aluminum alloy. It is produced with the utmost precision and in strict accordance with saber standards, ensuring exceptional quality and reliability. For the axles, there are several excellent options available, including BPW and Fuwa brands of air suspension axles. These renowned brands offer superior performance and stability. The volume of the tank can range from a substantial 24,000 liters to a generous 38,000 liters, providing ample capacity to meet various needs. The tank is equipped with an API valve, an oil and gas recovery system, an anti-overflow device, and an emergency shut-off safety valve. These advanced features work in harmony to ensure the safety and durability of the product. With such comprehensive safety measures in place, users can have full confidence in the reliability and longevity of this remarkable tank.
Main Technical Parameters:
MODEL | 32000L Fuel tanker |
Material | Aluminum （5454） |
Type | Tank Semi-trailer for Transporting Petrol Product with Density @0.8 |
Overall dimension(mm) | 11870*2500*3350mm(32cbm); |
A， Tanker Barrel | |
Thickness（mm） | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
Volume（L） | 32cbm(32000 liters); plus expansion space of 3%-5% |
Compartments | 1 compartment |
Shell painting | The surface of the tanker should be shiny |
B. Frame | |
Material | Alloy Aluminum profile |
Axle | BPW brand 3 axles drum brake, front axle with lift function. |
Suspension | BPW air bag suspension |
Landing legs | JOST brand two speed with flat, collapsible shoe, |
Traction pin | JOST brand 2.5 inches diameter, |
braking system | Wabco brand twin lines air brake system. Brake chambers , 3 pcs 40 liter aluminum air tanks. With ABS. |
Tire | Hankook brand, 385/65R22.5, 6+1 units, aluminum Rim 6+1 units |
D. Accessories and Fitting | |
Manhole | 1. 2x20 inches diameter manhole with 20 inches manhole overs; 10 inches fill/vent, pressure vacuum vent and emergency vent are included in manhole assembly 2. Protecting covers for manholes are provided. |

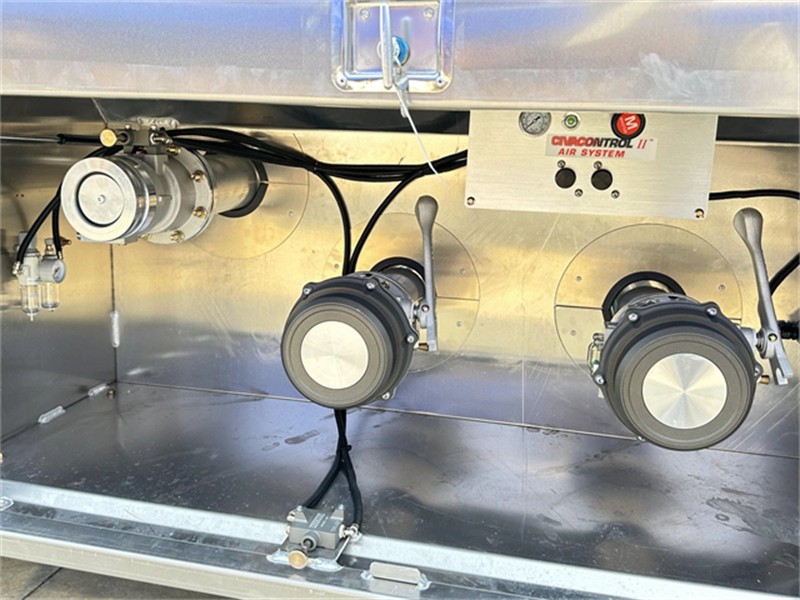

Discharge system | Bottom loading & gravity discharge system, 1. Bottom Valve: 2* 4” pneumatic bottom valves on the bottom of the tanker. 2. 4” aluminum alloy pipe line 3. 2* 4” API adaptors with aluminum dust cap on the right side of tanker. Horizontal installation. 4. All outlets are in the aluminum alloy box. 5. Outlets box equipped with collapsible door with lock |
Vapor Recovery System: | 1.2 units sequential pneumatic control air vents. 2.3” aluminum alloy pipe line from the 2 units manholes to the middle bottom of the tank. 3. 1 unit vapor recovery adaptors Installed at the middle bottom of the tank right, |
Overfill Protect System | 1. 5 wire optic overfill prevent system. 2. 5 wire optic probe installed to manhole cover. 3. 6 pin, 3J shot socket to be installed near vapor recovery adaptor |
Extinguisher | 2 units |
Valve box | In accordance with the requirement of Aaudi Aramco, one door which is opened by flat push than up straightly |
Ladder | Standard aluminum |
Walkway | Standard aluminum |
Hand rail | Standard aluminum |
Hose Carriers | Standard |
Rear Bumper / Under Run | Standard aluminum |
Mudguard | Standard |
Electrics system & reflectors | 24 volt light system with LED lights at both sides and rear of the tanker. |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
