Technical Specifications of the CLW 12cbm garbage compactor truck:
Main Technology Parameter | |
Model Name | CLW Brand Dongfeng captain 4x2 skip loader truck |
Driving Type | 4x2 |
Color | White and blue color or based on client’s request. |
Weights | |
GVW(kg) | 11995 |
Rated payload weight(kg) | 6800 |
Curb weight(kg) | 5000 |
Dimensions | |
Wheelbase(mm) | 3800 |
Overall Dimension(mm) | 6930*2370*3220 |
Max speed(km/h) | 89 |
Engine | |
Engine model | B170 33 |
Emission standard | Euro 3 |
Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
No. of cylinders | straight-4 cylinders, diesel |
Displacement(L) | 5.9 |
Max. output (kw) | 125(170hp) |
Drive Line | |
Transmission | Fast Brand;6 forwards,2 reverse gear, manual operation |
Steering | Power steering |
Brake | Air brake with vacuum pump |
Axle | |
Front axle | Dena 4.35 tons |
Rear axle | Dena 7.645 tons |
Tire specification | |
Tire specification | 245/70R19.5 |
Garbage compactor box | |

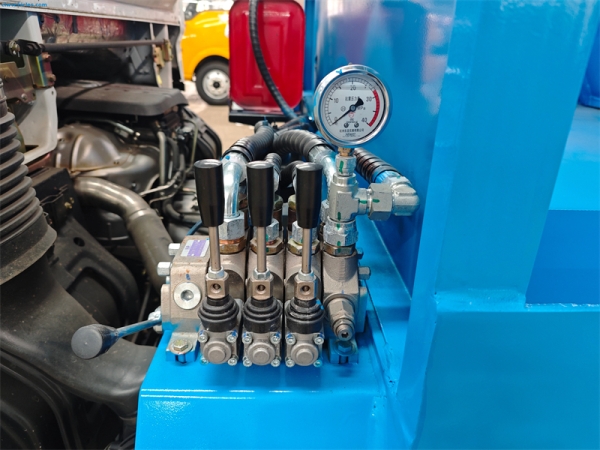

Standard configuration | The operating system of the swing-arm garbage truck is composed of a power take-off, balance valve, oil pipe, oil tank, oil pump, manual multi-way directional valve, balance valve, one-way hydraulic lock, etc. Its system generates power from the gearbox and power take-off. |
Optional configuration | Optional rear flipping mechanism. The side protection is made of cold-formed channel steel/Q235-A and connected by bolts. The rear protection is made of cold-formed channel steel/Q235-A and connected by welding. It is replaced by a special device. |
1. Garbage Bin with different size options of waste collection truck: 2cbm to 18cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Product Description:

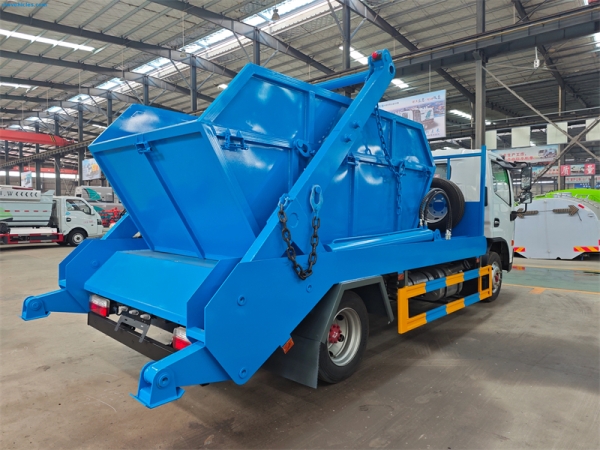

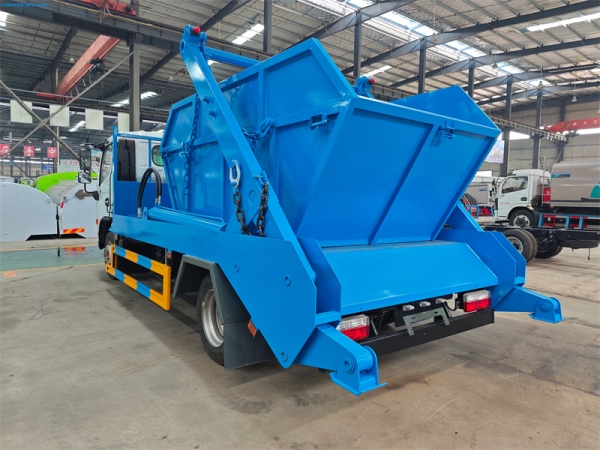

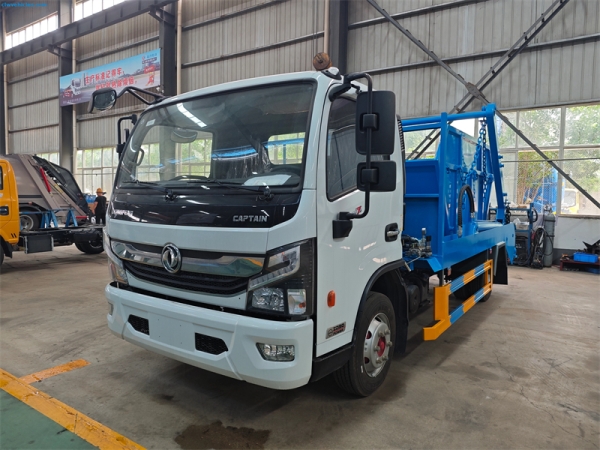

Dongfeng swing arm garbage truck: The chassis adopts Dongfeng Captur chassis. The tires used are 245/70r 19.5. The overall vehicle size is 6930x2370x3220mm, with a wheelbase of 3800mm. The engine is b170 33, with a horsepower of 170 and a displacement of 5.9L.
Special device: swing arm mechanism, mainly used for the collection and transportation of urban sanitation garbage.
2. Side protection material: Q235B carbon steel. Connection method: The left and right side protections are both connected by welding. The rear protection is replaced by a special device. The ground clearance is (mm): 500.
3. Optional cab style, optional fuel tank, battery, urea tank, and air reservoir installation positions on the left and right.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
