25cbm Lpg Tansportation on HOWO Truck
Product Description:

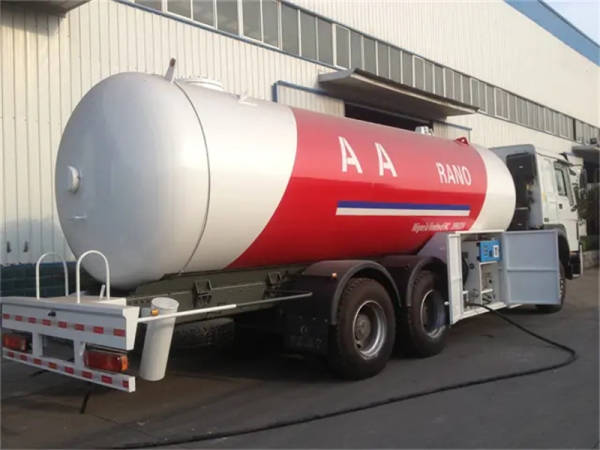

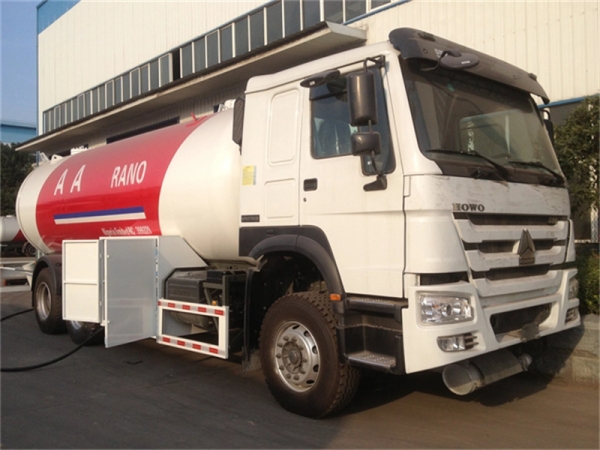

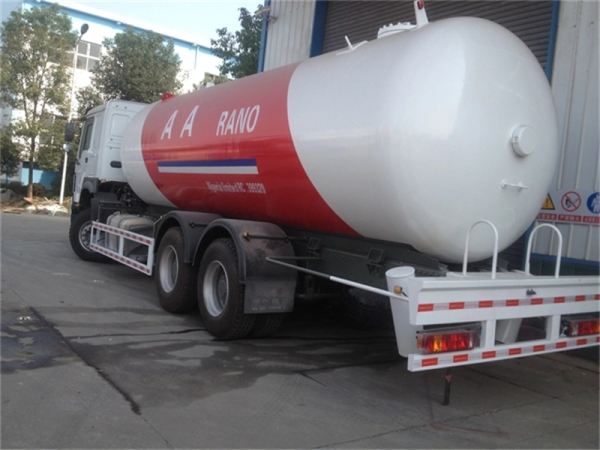

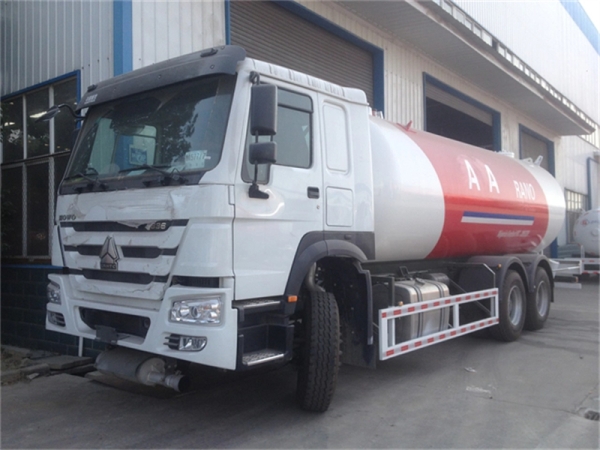

This model is a Sinotruk HOWO 6*4 25cbm liquefied gas transport vehicle. The chassis adopts the HOWO chassis. The overall vehicle size is 9200x2500x3200mm, with a wheelbase of 4325+1350mm. The engine is WD615.95E, with 336 horsepower and a displacement of 9.726L. It has 10 forward gears and 2 reverse gears, and is equipped with 12.00R20 tires. The upper-mounted device is mainly the liquefied gas storage tank. The tank size is 7534x2100x2100mm, with a volume of 25cbm. The material is 12mm Q345R. It is equipped with a safety valve, inlet and outlet ports, a discharge valve and a toolbox. The body color and cab color can be customized.
Main Technical Parameters：
Weight Parameter | Complete Vehicle Kerb Mass（kg） | 11380 | |
Maxim Umperissible gross laden Weight（kg） | 25000 | ||
Gross Combination Weight(kg） | 24000 | ||
Dimension Parameter | External Dimensions(mm) | Length | 9200 |
Wide | 2500 | ||
High | 3200 | ||
wheelbase(mm) | 4325+1350 | ||
Minimum Ground Clearance(mm) | 260 | ||
Performance Parameter | Maximum Speed(km/h) | 90 | |
Economical Speed(km/h) | 72 | ||
Maximum Gradability(%) | 70 | ||
Turning diameter(m) | 20 | ||
Recommended | Engine | Engine Type | WD615.95E (336HP) |
6 cylinder in-line with water cooling, Turbo-charging & inter-cooling, 4-stroke | |||
Rated power(kW)/Rev(r/min) | 247/2200, | ||
Maximum Torque(N*m)/Rev(r/min) | 1350/1100-1600, | ||
Gear-box | HW15710 (10 forward &2 Reverses) | ||
Clutch(mm) | 430 | ||
Front Axle | Type | HF7 (7 Ton) | |
Rear Axle | Type | HC16 (16Ton) with ABS | |
Speed Ratio | 4.42 | ||
Oil Box(L) | 400 | ||
Chassis Cross-section(mm) | 300 | ||
Suspension(Front ,Back) | 10/12 | ||
Tire | 12.00R20 | ||
Cabin | Single cabin with sleeper；Passengers allowed：2； Air-condition：Have. | ||
Dimension Parameter of the tanker | External Dimensions(mm) | Length | 7534mm |
Wide | 2100mm | ||
High | 2100mm | ||
Raw material | 12 mm Q345R | ||
Loading capacity ( Liter ) | 25000 | ||
Compartment | NA | ||
Manhole cover | 1 set | ||
Other key accessories | Safety valve | ||
Inlet port and outlet port | |||
Discharge valve and tool box | |||
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
