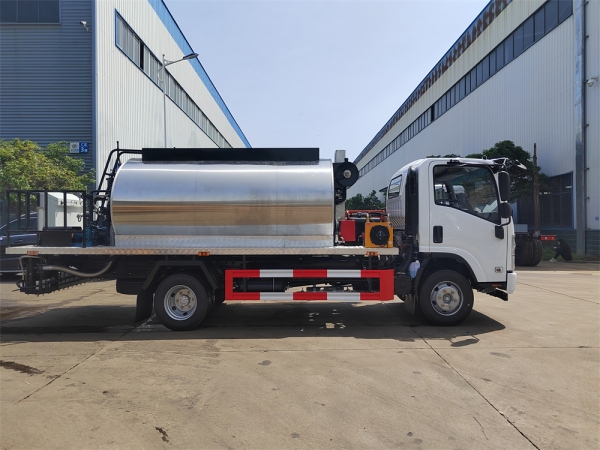

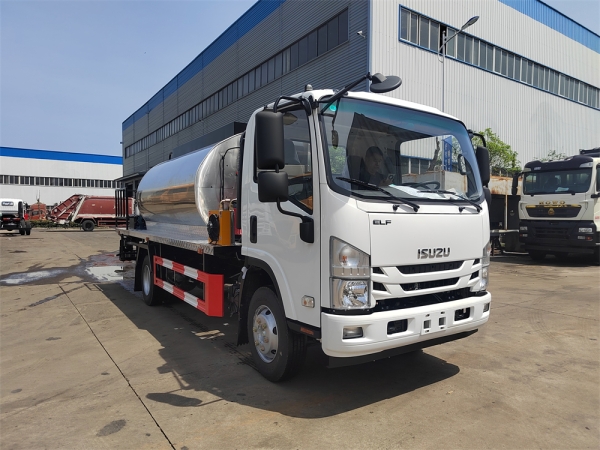

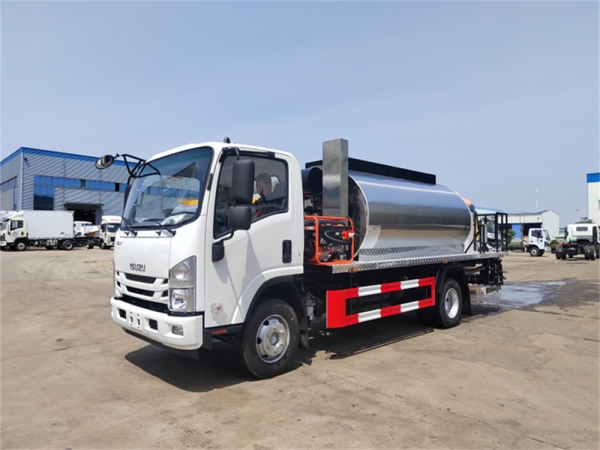

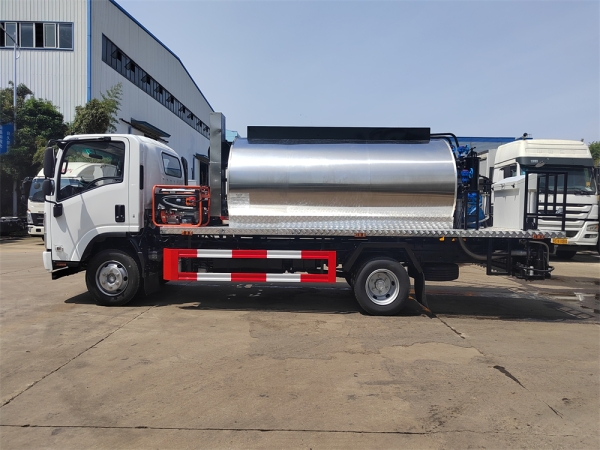

This Isuzu asphalt distributor is supported by an Isuzu 4x2 chassis and is equipped with 8.25r20 14pr tires. The overall vehicle size is 6980×2170×2410mm, and the wheelbase reaches 3815mm. Its power is provided by the 4hk1-tc51 engine, with 190 horsepower and a displacement of 5.913L.

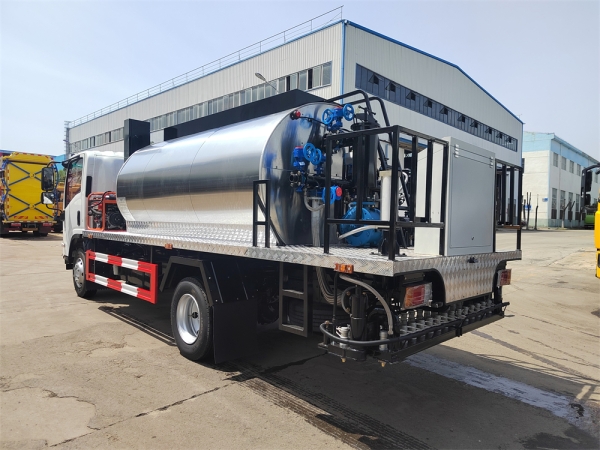

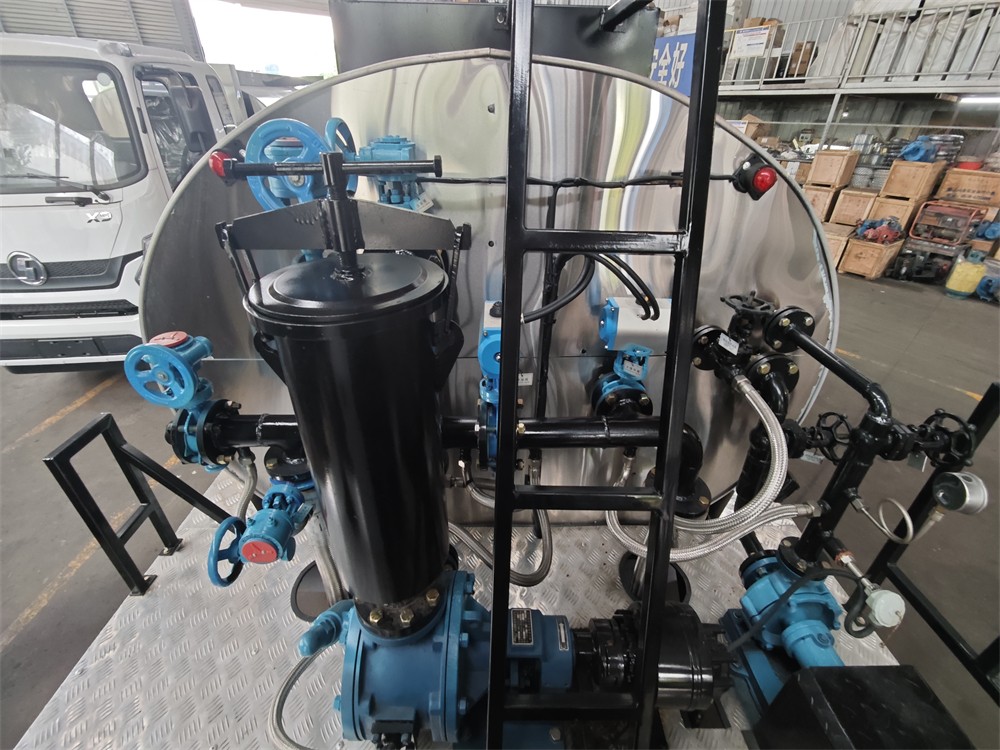

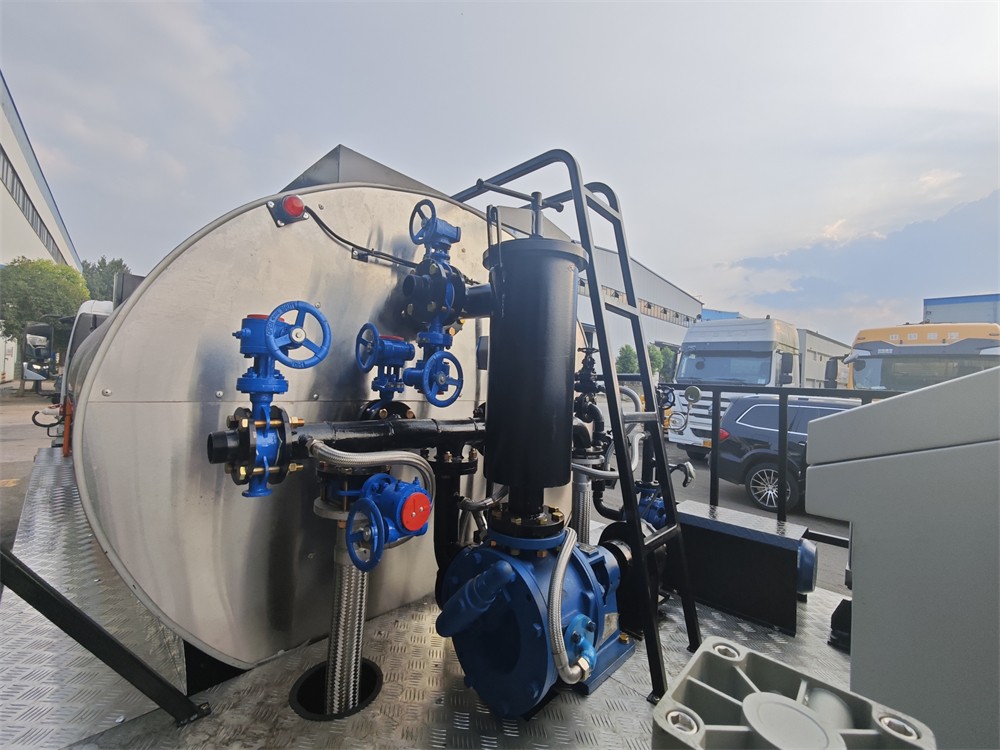

The upper-mounted part is mainly composed of an asphalt tank and an asphalt spraying system. The tank volume is 5.83cbm. The outer layer of the tank is made of 1mm thick stainless steel, which has good corrosion resistance and aesthetics. The thickness of the insulation layer of the tank is 50mm, which can effectively maintain the temperature of asphalt and ensure the fluidity of asphalt during construction. The interior is made of 4mm thick carbon steel, which is strong and durable. The protective material is Q235b carbon steel, which is connected by welding to ensure the structural strength of the tank.
In addition, this vehicle provides a variety of optional configurations. For example, different tank appearances can be selected to meet the personalized needs of users and make the vehicle more beautiful. Different styles of steps can be selected to facilitate operators to inspect and maintain the tank. Arc-shaped mudguards can also be optionally installed, which can not only prevent mud and sand from splashing, but also enhance the overall appearance of the vehicle. In short, this Isuzu asphalt distributor has certain advantages in performance and configuration and can meet the needs of asphalt spraying in road construction.
Main technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 11995 | |
| Curb Weight(kg) | 6120 | |
| Overall Dimension(mm) | 6980*2170*2410 | |
| Wheelbase(mm) | 3815 | |
| Axle Load(kg) | 3350/6650 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | ISUZU | |
| Chassis Model | QL1100A8KAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1-TC51 |
| HP | 190 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(ml/kw) | 5193/141 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 510 | |
| Maximum Torque Speed(rpm) | 1600 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 8.25R20 14PR | |
| Tank Description | Tank Material | Q235B,According to Customer needs |
| Tank Volume(m³) | 6cbm | |
| Outer Layer Thickness(mm) | 1 | |
| Insulation Layer Thickness(mm) | 50 | |
| Internal Carbon Steel Thickness(mm) | 5 | |
| Oil Pressure Pump | CBQ500-L | |
| Heater Brand | Riello Diesel Burner | |
| Heating Method | Heat Conduction | |
| Asphalt Pump Motor | 05-110-B031 | |
| Asphalt Pump Flow(L/min) | 680 | |
| Nozzle Number | 30 | |
| Spreading Width(m) | 4.5 | |
| Amount of Asphalt Spread(L/m²) | 0.25-3 | |
Matters to note when using device：
When the asphalt distributor truck finishes an operation or changes the construction site,the asphalt pump and pipeline must be cleaned thoroughly;other it cannot operate next time.
Before spraying,the asphalt distributor truck must check whether the valve position is correct.When adding hot asphalt to the asphalt tank,the working temperature must reach 160-180°C.

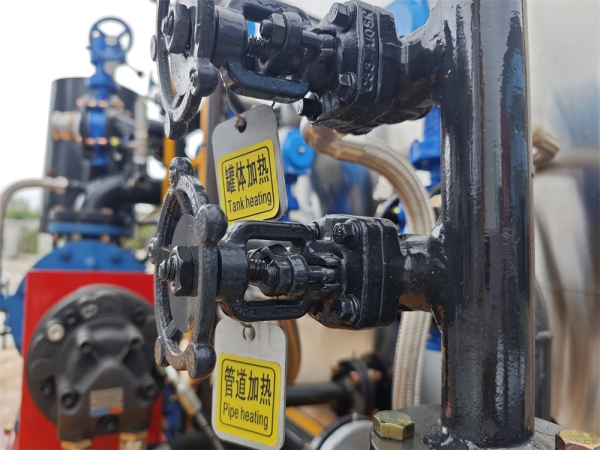

For long-distance transportation or long working hours,the heating device can be used for heat presevation,but it cannot be used as a furnase.Avoid asphalt overflow.
When heating the asphalt in the tank with a burner,the asphalt height must exceed the upper plane of the combustion chamber;otherwise,the combustion chamber will be burned.
If the asphalt pump and pipeline are blocked by solidified asphalt,do not force the pump to rotate.User can use a blowtorch for baking,but avoid directly baking the ball valve and rubber parts.
At the begginning of spraying asphalt,user must start slowly at the begginning,and the car must maintain low-speed driving.Do not step on the accelerator pedal to avoid damaging components such as the clutch and asphalt pump.
After the end of daily operations,if there is remaining asphalt,it must be put back into the asphalt pool;otherwise,it will not solidify in the tank and cannot be operated next time.If there is a malfunction in the car or working device and it is determined that it cannot be repaired in a short time,all the asphalt in the tank must be drained.
