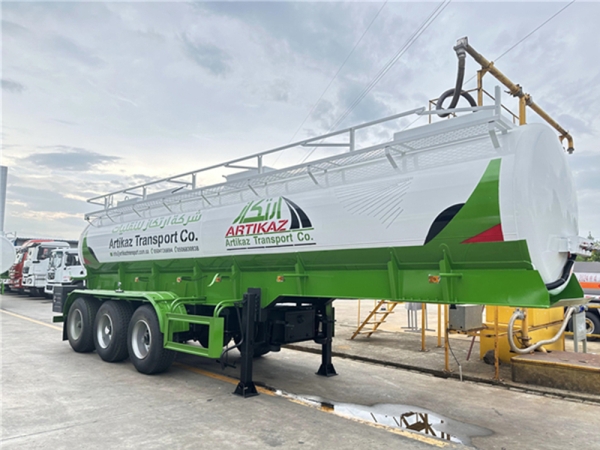

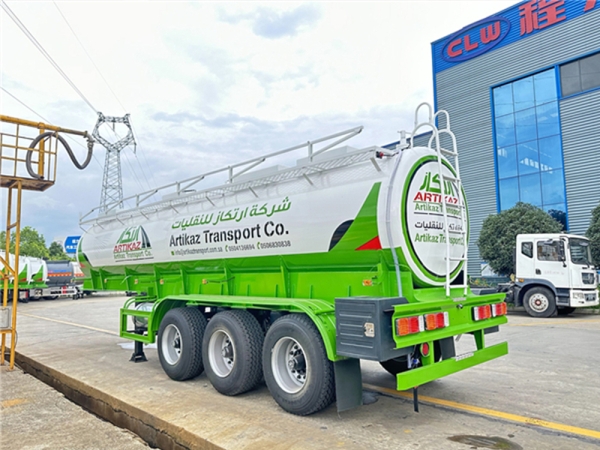

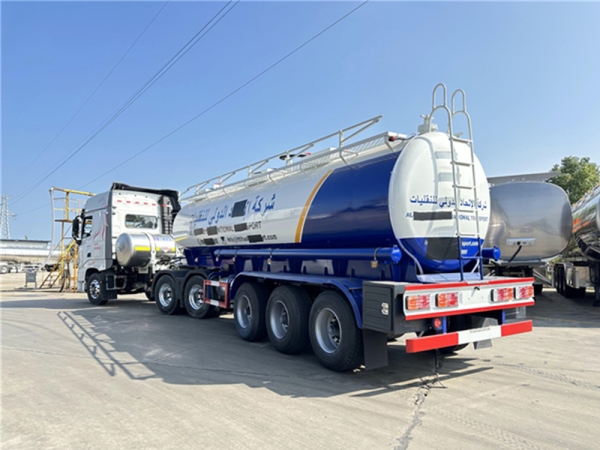

24-26cbm 3 axles Liquid chemical tank semi trailer
Our Liquid chemical tank body is lined with 12-20mm thick PE inside, which has high strength and corrosion resistance.
Stainless steel safety valve with voice alarm device, In emergency case, the safety valve can cut off the connection between the pipeline and the tank to avoid the leakage of chemical liquid from the tank.
Disc brakes with EBS, In emergency case, the braking distance can be quickly shortened to facilitate safe braking.
BPW or FAW Airbag suspension, The trailer weight is light, very suitable for the Saudi market
Main Technology Parameter | |
Model Name | CLW 26cbm hydrochloric acid tank semi trailer |
Color | Red, blue, White, yellow, etc. |
Weights | |
Rated payload weight(kg) | 29250kg |
Curb weight(kg) | 8000kg(Estimate) |
Dimensions | |
Wheelbase(mm) | 4460+1310+1310 |
Overall Dimension(mm) | 10300*2500*3550mm |
Max speed(km/h) | 75 |
Frame | |
Frame | Carbon steel |
Axle | |

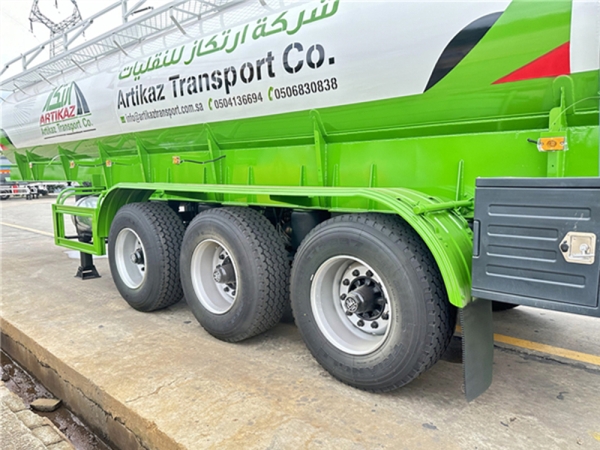

Axle | BPW airbag suspension 3x10tons, ( 2 axles with ABS) |
Landing gear | |
Landing gear | JOST brand two speed with flat, |
Braking system | |
Braking system | Wabco brand twin lines air brake system. Brake chambers , 3 pcs 40 liter aluminum air tanks. |
Tire specification | |
Tire | Hankook brand, 385/65R22.5, 6+1 units, aluminum Rim 6+1 units |
Acid tank | |
Tank volume | 26 m3 |
Tank material (out side) | Carbon steel Q235; Disc head :4.75mm; body:4.2mm ;Wave breaker 3.5mm |
Box material (inside) | 16mm PPE |
Section | 1 section |
Safety valve | 1 unit 4 inch, stainless steel fluorine-lining |
Loading valve | 3 units, plastics |
Discharge valve | 3 units, 3 inch, PP |

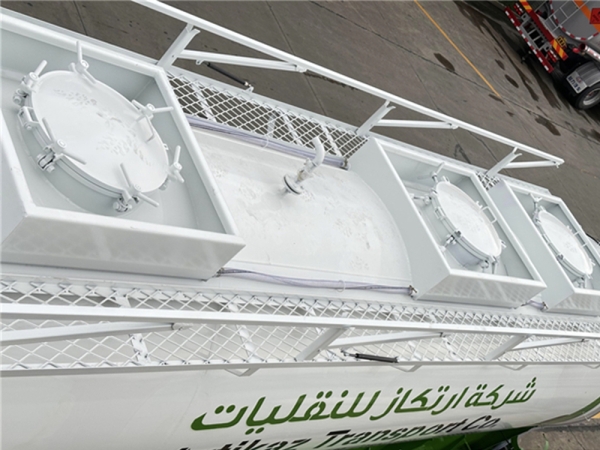

Man hole | 3 units |

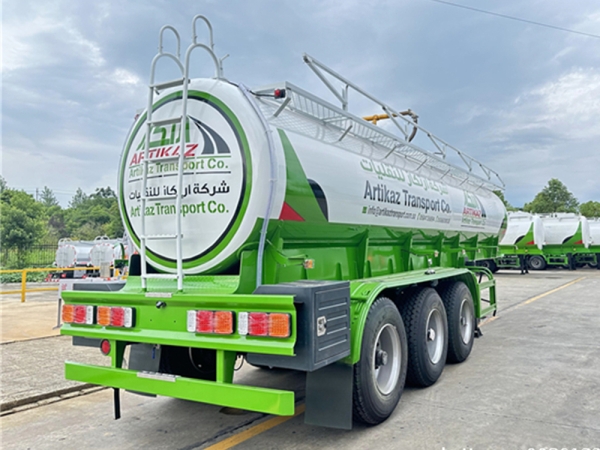

Ladder | One is on the side of tank, one is on the rear of tank. |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
