Product Description：
Tank Body:
Made of TWR300TP steel, 3.5mm thick. Geometric volume 14.32m³, max level-road mixing volume 11m³. Mixing drum: clockwise for feed/mix/agitate, counterclockwise for discharge. 450mm+ manhole, well-sealed. Blades well-welded, welds reliable and defect-free.
Feeding & Discharging:
Feeding hopper ≤ 3880mm from ground. Taillight for night. Discharging chute: 180° horizontal rotation, vertical adjustment. Extended chute, easy on/off. Locking mechanism. Rotatable (180°) receiving hopper with lock.
Cleaning:
300L aluminum alloy tank, well-sealed. Pressure relief & overflow valves, ≤ 0.4MPa, withstands 1.5 times max pressure. Chassis air supply, sequence valve. Level measurer, convenient inlet. Stable pipelines, switches. Tank cleaner & reel at rear.
Sub-frame:
Q355B steel, supports/ beams/plates. Lightweight and strong, rear ladders for access.
Side & Rear Protection & Wheel Housings:
Side Q235B, bolted, lightweight. Rear Q235B (120×60mm), bolted, strong. Rear wheel housing: aluminum alloy. Front: plastic. Anti-splash for urban roads.
Emergency Rescue:
Superstructure has interface at motor rear. For external equipment in case of power failure, reducing losses.
Sandblasting & Painting:
Superstructure parts shot blasted, painted. 30 - 40μm paint film, anti-corrosion, extends life.

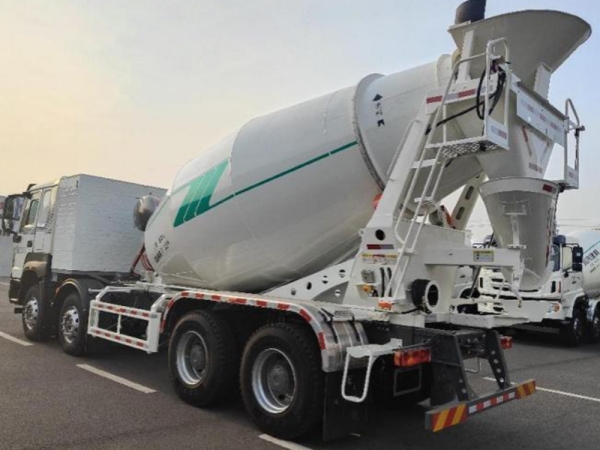

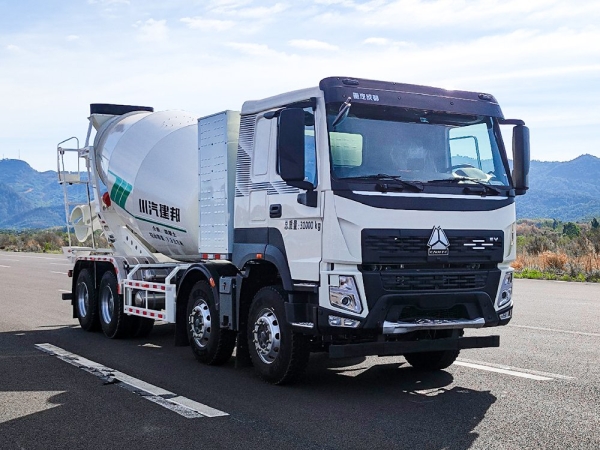

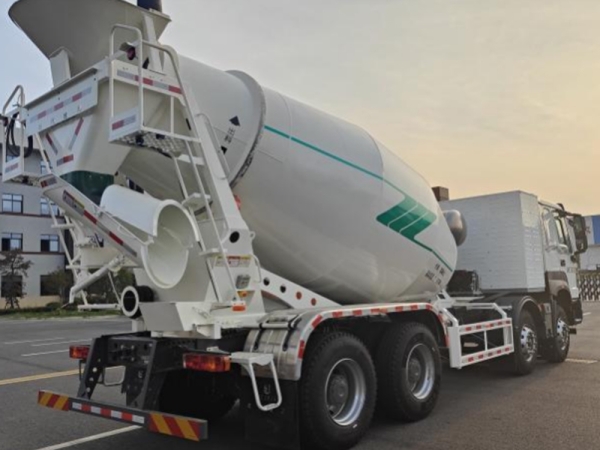

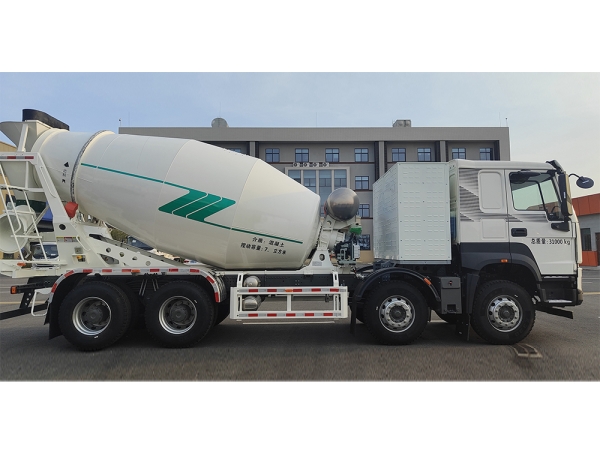

Technical Specifications of the CLW E Hook Arm Collect Garbage Truck：
| Main Technology Parameter | |
| Model Name | CLW Brand E 31T Concrete Mix Truck |
| Driving Type | 4x2 |
| Color | white and green or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 31000 |
| Rated Payload Weight(kg) | 15950 |
| Curb Weight(kg) | 14920 |
| Dimensions | |
| Wheelbase(mm) | 1800+3525+1350 |
| Front/Rear Overhang(mm) | 1500/2395 |
| Approach/Departure Angle | 17/22 |
| Overall Dimension(mm) | 10650x2550x3980 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | TZ400XS035 |
| Emission Standard | Electric |
| Engine Type | Permanent magnet synchronous motor |
| Max.Output(kw) | 250/360 |
| Drive Line | |
| Transmission | 8 forwards,1 reverse gear,AMT |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle | |
| Axle | 6500/7000/17500 |
| Tire Specification | |
| Tire Specification | 315/80R22.5 18PR |
| Front Wheel Track(mm) | 2022/2022 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 11/11/12, 5/5/5 |
| Upper Body | |
| Upper Body Total Weight | ≤3200kg |
| Agitating Volume | ≥7.3m³ |
| Maximum Loading Capacity | 11m³/Level Road |
| Maximum Rotation Speed of Mixing Drum | 16r/min |
| Transport Rotation Speed | 1~3r/min |
| Feeding Rotation Speed | 5~8r/min |
| Discharging Rotation Speed | 3~14r/min |
| Fast Mixing Rotation Speed | 10~15r/min |
| Reduction Ratio | 224 |
| Overall Length of Tank Body | 5310mm |
| Maximum Diameter of Tank Body | 2220mm |
| Installation Angle of Tank Body | 16° |
| Volume of The Clean Water Tank | 300L |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
