Product Description：

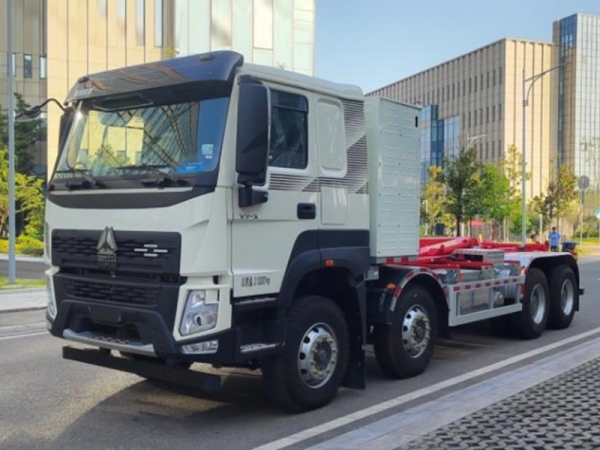

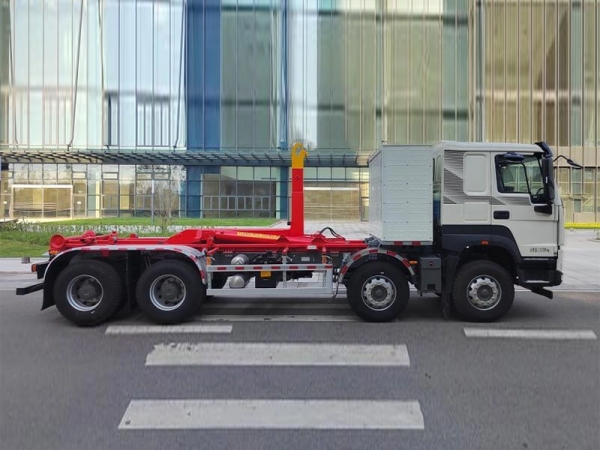

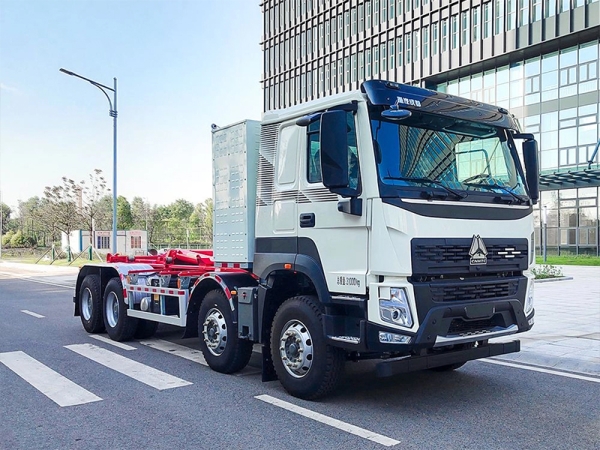

The E Hook Arm Collect Garbage Truck is a versatile and efficient waste collection solution designed for modern urban environments. Engineered with advanced technology, this truck features an innovative hook arm system that allows for quick and easy loading of garbage bins, enhancing operational efficiency. Its robust construction ensures durability, making it capable of handling heavy loads while maintaining stability on the road.
Equipped with a powerful engine and optimized for fuel efficiency, the E Hook Arm Truck minimizes operational costs while maximizing productivity. The spacious garbage compartment is designed for easy unloading, reducing downtime and ensuring a seamless waste management process. Additionally, the truck's user-friendly controls allow operators to maneuver effortlessly, even in tight spaces.
Safety is a priority, with features such as anti-slip steps and a reinforced chassis. Ideal for municipalities and waste management companies, the E Hook Arm Collect Garbage Truck combines strength, reliability, and advanced technology to meet the demands of efficient waste collection and contribute to cleaner communities.
Technical Specifications of the CLW E Hook Arm Collect Garbage Truck：
| Main Technology Parameter | |
| Model Name | CLW Brand E Hook Arm Collect Garbage Truck |
| Driving Type | 4x2 |
| Color | white and blue or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 31000 |
| Rated Payload Weight(kg) | 15630 |
| Curb Weight(kg) | 15240 |
| Dimensions | |
| Wheelbase(mm) | 1800+4625+1350 |
| Front/Rear Overhang(mm) | 1500/1400 |
| Approach/Departure Angle | 17/22 |
| Overall Dimension(mm) | 10675x2520x3125 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | TZ400XS035 |
| Engine Type | Permanent magnet synchronous motor |
| Rated/Peak Torque(Nm) | 1600/2500 |
| Rated/Peak Speed(rpm) | 1492/3500 |
| Max.Output(kw) | 250/360 |
| Drive Line | |
| Transmission | 8 forwards,1 reverse gear,AMT |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle | |
| Axle | 6500/7000/17500 |
| Tire Specification | |
| Tire Specification | 315/80R22.5 18PR |
| Front Wheel Track(mm) | 2022/2022 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 11/11/12,5/5/5 |
| Upper Body | |
| Lifting Capacity | 26T |
| Dumping Angle | 47° |
| Self-weight | 2675kg |
| Hydraulic Oil Tank Volume | 110L |
| Maximum Working Pressure | 32MPa |
| Horizontal Sliding Distance of The Hook Arm | 1400mm |
| Installation Height | 280mm |
| Hook Center Height | 1570mm |
| Clearance Height of The Box Body Track | ≥130mm |
| Outer Width of The Box Body Track | 1067mm |
| Installation Time | ≤52s |
| Unloading Time | ≤65s |
| Lifting and Unloading time | ≤57s |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
