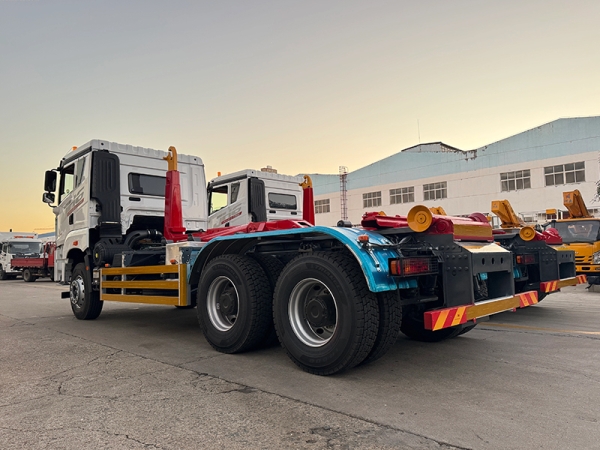

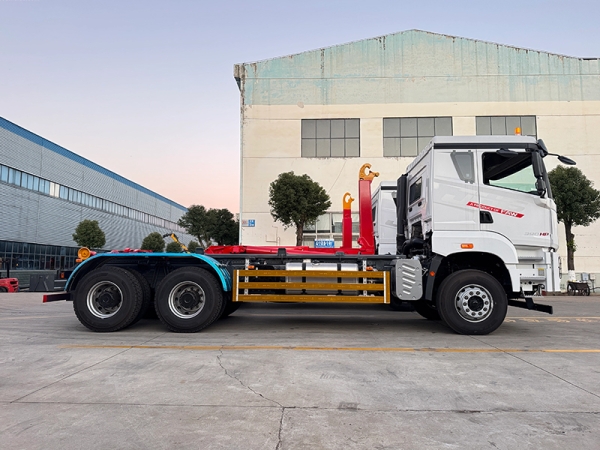

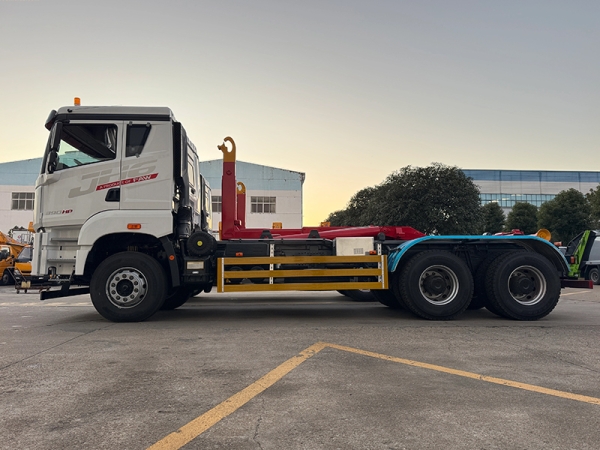

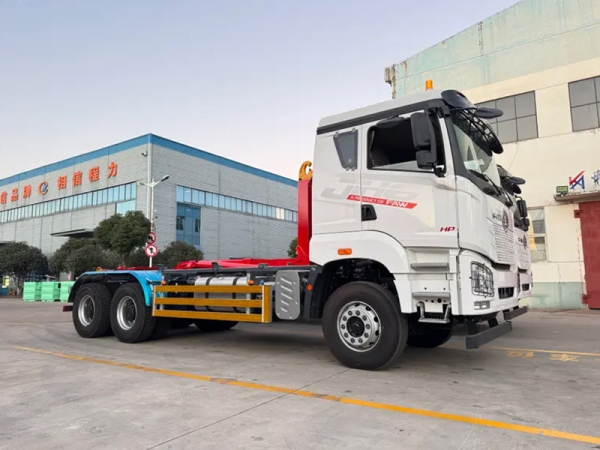

Technical Specifications of the CLW Hook arm garbage truck：
| Main Technology Parameter | |
| Model Name | CLW Brand FAW 6x4 roll-on-off garbage Transport truck |
| Driving Type | 6x4 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 13880 |
| Curb Weight(kg) | 10990 |
| Dimensions | |
| Wheelbase(mm) | 4350+1350 |
| Overall Dimension(mm) | 8220x2521x3130 |
| Front/Rear Overhang(mm) | 1400/1120 |
| Approach/Departure Angle | 22/19 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | CA6DM2-39E52 |
| Emission standard | Euro 6 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 11.05 |
| Max. output (kw) | 290(390hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 7 tons |
| Rear axle | Dena 18 tons |
| Tire specification | |
| Tire specification | 315/80R22.5 |
| Front Wheel Track(mm) | 1928 |
| Rear Wheel Track(mm) | 1878/1878 |
1. Garbage Bin with different size options of waste collection truck: 2cbm to 18cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Product Description：
1. This vehicle realizes the functions of loading, transporting and unloading the garbage compartment through the pull-arm device and hydraulic system.
2. Only the wheelbase of 4350mm + 1350mm is selected. The side protection material is Q235B. Aluminum alloy can be optionally selected. When Q235B is selected, the side guardrail is pressed into a shape. The rear protection material is Q345B and is connected to the vehicle by bolts. The cross-sectional dimension of the rear protection is 180mm×60mm and the ground clearance is 450mm.
3. Select the speed-limiting device according to the chassis. The maximum speed (km/h) is 80 or 89. Select the cab according to the chassis. A work light is installed at the rear. This light is used for lighting during night operations and can only be lit when the vehicle is in operation and cannot be lit when in driving state.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
