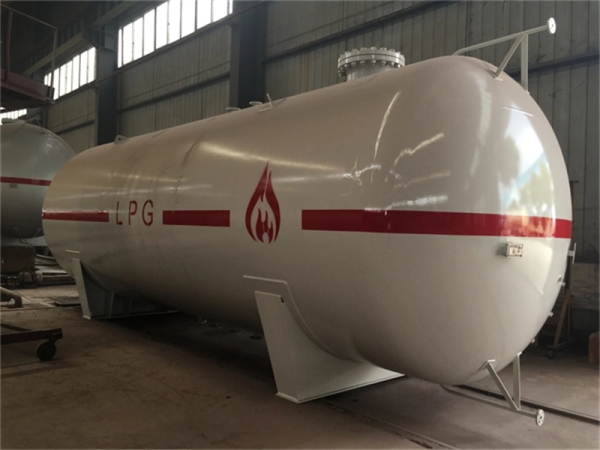

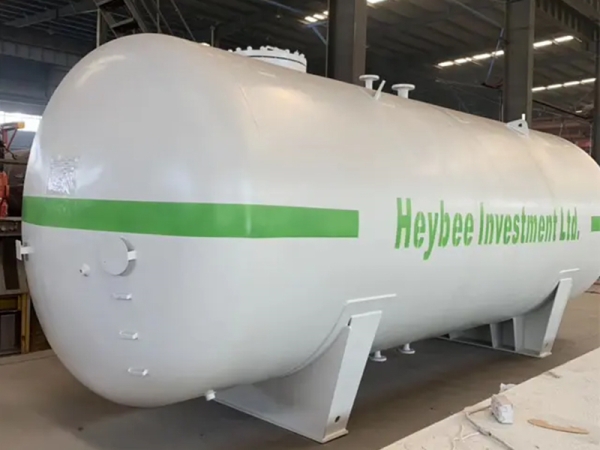

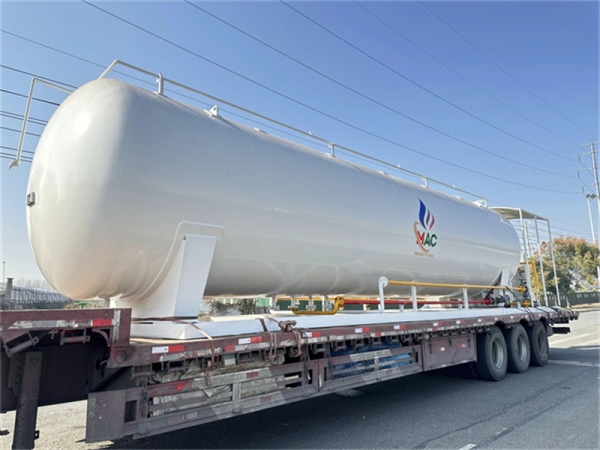

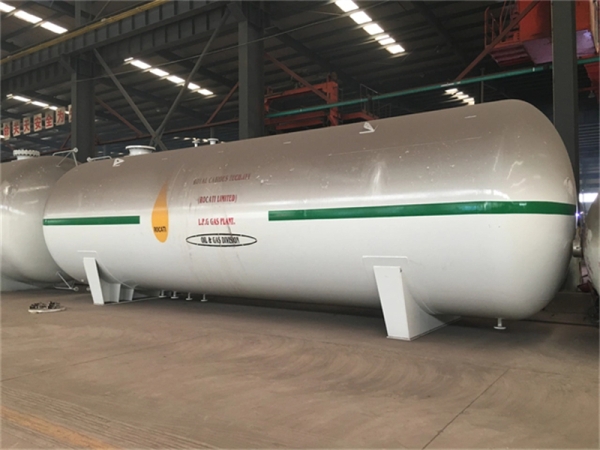

ASME Standard 1-150cbm LPG Gas Storage Tank
Item | Unit | Parameter | |
Product name | LPG storage tank | ||
Product model | |||
Filling medium | LPG（propane） | ||
Loading capacity | CBM | 100 | |
Overall dimension （L*W*H） | mm | 13866*3132*3722 | |
Tank volume （inner diameter*tank thickness * length） | mm | DN3100*18*13866 | |
Curb weight | kg | 20410 | |
Design pressure | Mpa | 1.77 | |
Working pressure | Mpa | ≤1.6 | |
Working temperature | ℃ | ≤50 | |
Hydrostatic test | Mpa | 2.22 | |
Airtight test pressure | Mpa | 1.77 | |
Tank and the main pressure parts materials | Q345R、16MnIII | ||
Produce standard | GB150 STEEL PRESSURE VESSEL、Pressure Vessel Safety technical monitoring procedures | ||
Optional accessories | Safety valve、SCL-UHZ(magnetic flap gauge)、pressure gauge、thermometer、cut-off valve etc. | ||
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
