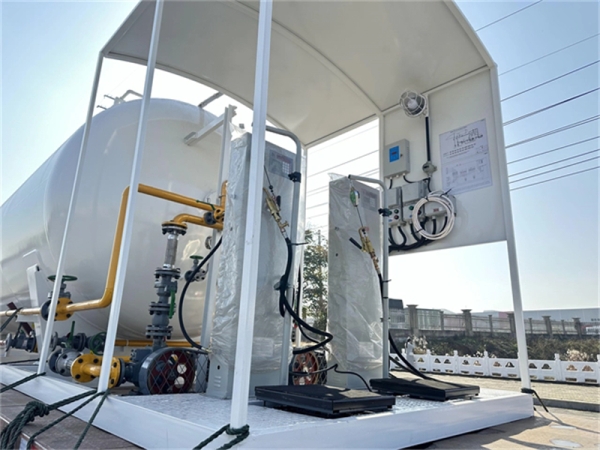

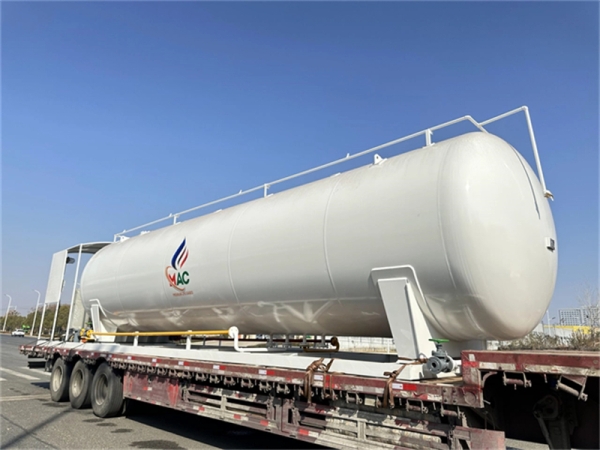

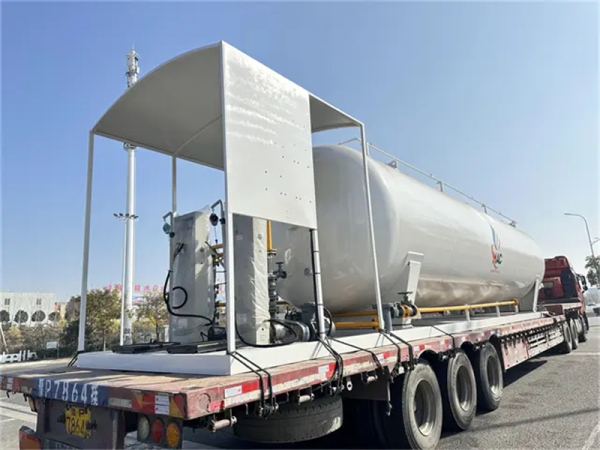

Production name | 42tons 100cbm lpg skid station | 12 tons lpg skid station | ||
Over size (mm) | 13000*2200*3200 | 8300*2200*3200 | ||
Tank size (mm) | 12900*2224*2814 | 8158*2324*914 | ||
Raw material | Q345R | |||
Thickness (mm) | 14mm | 14mm | ||
Loading capacity | 42 tons 100cbm | 12 tons 30 cbm | ||
Design pressure (Mpa) | 1.77 Mpa | |||
Working pressure (Mpa) | ≤1.6 Mpa | |||
Working temperature | ≤50 ℃ | |||
Hydrostatic test (Mpa) | 2.22 Mpa | |||
Airtight test pressure (Mpa) | 1.77Mpa | |||
Gas dispenser | Model:JQ060L-C-1G Flow rate: 10-40L/min Nominal pressure: 2.5Mpa Power dissipation:66w Conformity certificate of protection: GYB01231 Expertise Rating:1 Minimum detection value:5L Flow meter Lpg filling nozzle Electronic calculator with keyboard and display board | 1 | ||
Lpg pump | Model: YQB15-5 Operating pressure differential<=0.5Mpa Flow rate: 15.5cbm/h Entrance pressure:<=1.0Mpa Shaft horsepower: 3.60kw Number of revolutions: 780 r/min Matched power: 5.5kw | 1 | ||
Explosion proof motor | Model:YB3-132S-4 Power: 5.5kw Voltage :AC380V | |||
Filter before pump | 2 | |||
Safety valve for pipe | DN50 or DN80 | 1 | ||
Safety valve for tank | DN50 or DN80 | 1 | ||
Magnetic level gauges | UH2 | 1 | ||
Thermometer | 1 | |||
Manometer | 1 | |||

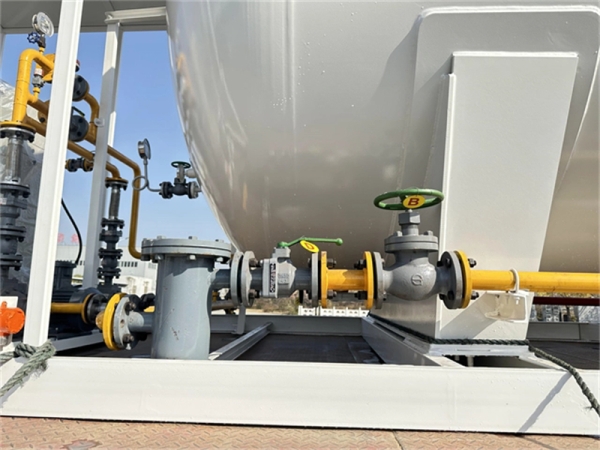

Ball valve | DN80 | 1 | ||
Ball Valve | DN50 | 8 | ||
Ball valve | DN25 | 2 | ||
Ball valve | DN20 | 2 | ||
Flame retardant valve | DN50 | 1 | ||
Explosion-proof controlling box | 1 | |||
Cooper valve | 2G1/2 | 3 | ||
Cooper valve | 2G2# | 3 | ||
Shock absorption pipe | DN20 or DN25 | 2 | ||
Angle stop valves | DN20 | 2 | ||
Angle stop valves | DN25 | 1 | ||
Angle stop valves | DN50 | 5 | ||
DIN Y type strainer | DN50 | 2 | ||
Flang check valve | DN50 | 2 | ||
Check valve | DN50 | 2 | ||
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
