Product Description：

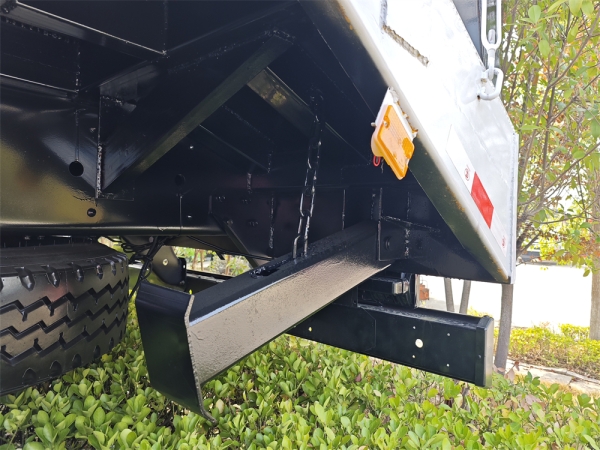

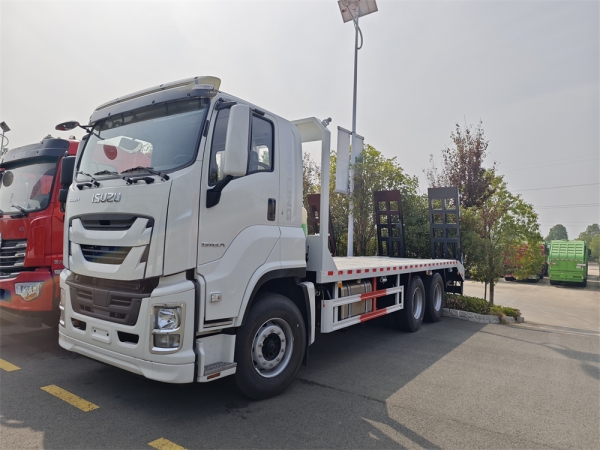

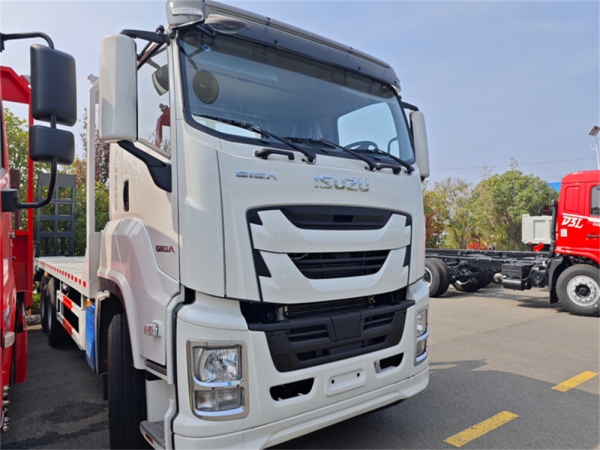

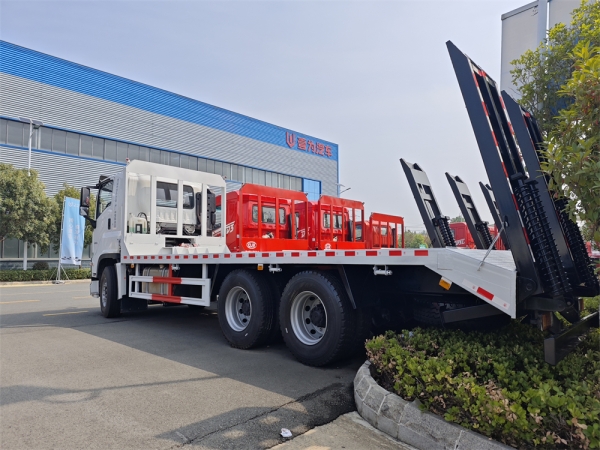

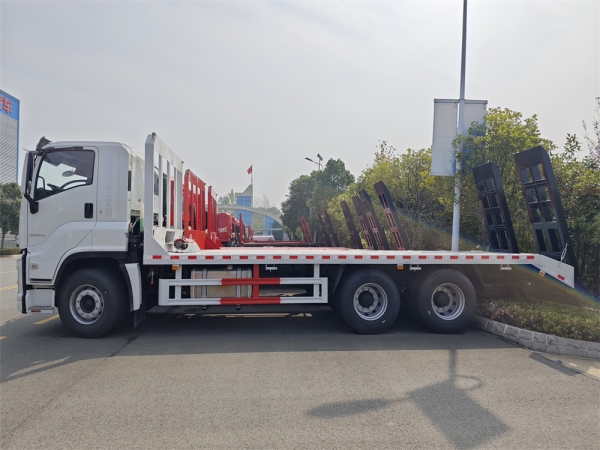

This ISUZU GIGA Wrecker Truck is mainly used for towing road breakdown vehicles and illegal vehicles. The main special devices are flat plates, winches, steel wire ropes. Optional equipment includes towing arms and lifting cranes. The materials of the left and right side protection devices are Q235 carbon steel. The connection method is bolt connection. The rear lower protection is replaced by the special device towing arm. The ground clearance is 470mm.
Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 16500 | |
| Overall Dimension(mm) | 9800x2540x3055 | |
| Wheelbase(mm) | 4565+1370 | |
| Axle Load(kg) | 7000/13000 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | ISUZU | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 6WG1-TCG51 |
| HP | 460 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(ml/kw) | 15681/338 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2060 | |
| Gearbox | 10Forward/2Reverse Gear | |
| Tyre | 12.00R20 18PR | |
| Wrecker Structure Parameters | ||
| Flatbed System | Flatbed Load Capacity (kg) | 20000 |
| Flatbed External Size(LXW) (mm) | 7600x2500 | |
| Min angle between flatbed and floor | 8° | |
| Towing System | Max Towing Capacity (kg) | 25000 |
| Max Towing capacity under full extension (kg) | 1800 | |
| Max effecitve length of towing arm (mm) | 1700 | |
| Extension stroke of towing arm (mm) | 1340 | |
| Extend-retract of folding angle (°) | -6~8 | |
| Max distance from towing folk to the floor under full extension (mm) | 1000 | |

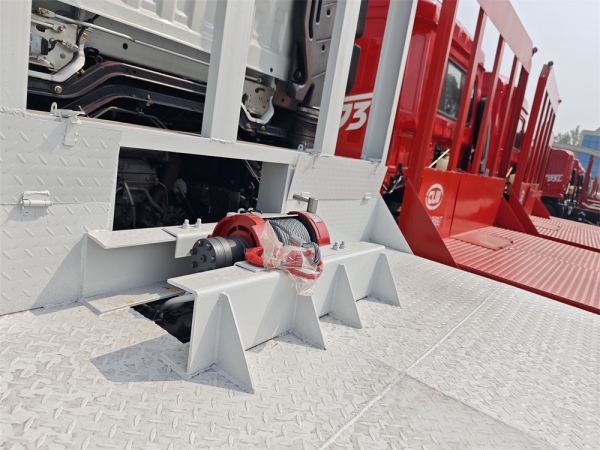

| Winch System | Quantity (pcs) | 1 |
| Rated Tractive force for each (kN) | 100 | |
| Steel Wire Rope Spec. | 12-6X19S-FC1670BZS | |
| Dia. of Steel wire rope (mm) | φ12 | |
| Length of Steel wire rope (m) | 25 | |
| Min linear speed of Steel wire rope(m/min) | 3.23 | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
