Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 15065 | |
| Loading Weight(kg) | 9805 | |
| Overall Dimension(mm) | 9600*2550*3450 | |
| Wheelbase(mm) | 4325+1350 | |
| Axle Load(kg) | 7500/18000 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | HOWO | |
| Chassis Model | ZZ3257V434GF1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10H400E62 |
| HP | 400 | |
| Emission Standard | Euro 3/Euro 6 | |
| Displacement/Output(ml/kw) | 9500/294 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 1900 | |
| Maximum Torque(N·m) | 1900 | |
| Maximum Torque Speed(rpm) | 1200-1300 | |
| Gearbox Brand | HOWO | |
| Gearbox | 12Forward/2Reverse Gear | |
| Tyre | 12.00R20 16PR | |
| Fuel Tank | Capacity(cbm) | 20/22/24/25 |
| Tank material | Carbon steel Q235 | |
| Compartment Quantity(pcs) | 1/2 | |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium | |
| thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm | |
| Compartments | 9 | |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. | |

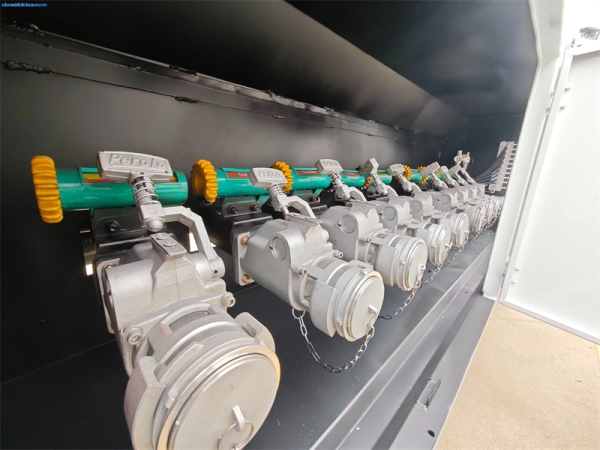

| Discharge system | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. | |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
