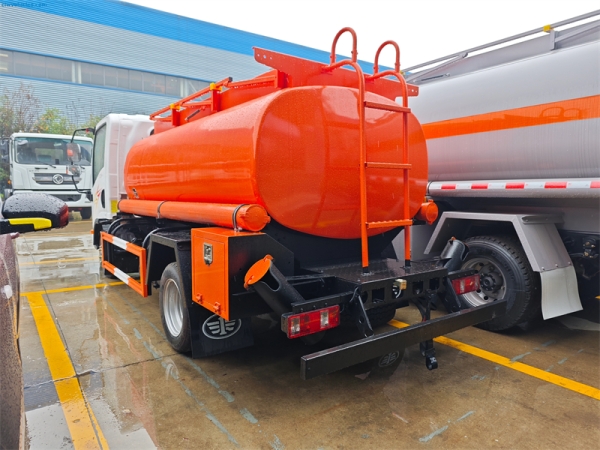

This vehicle is a specialized dangerous goods transport vehicle, classified as FL type. Designed to comply with stringent safety standards, it is ideal for transporting hazardous materials efficiently and securely.
Effective Volume: 2.5 m³
Permitted Medium Density: Up to 735 kg/m³
Tank Dimensions: 3700 mm (length) × 1500 mm (long axis) × 1000 mm (short axis)
The tank's optimized design ensures maximum capacity while maintaining a compact and manageable structure for easy handling and operation.
Constructed with aluminum alloy bolts, securely attached to the girder.
Rear Protection Dimensions: 120 mm × 50 mm
Ground Clearance: 440 mm
These protective systems enhance safety during transport, offering robust resistance to potential impacts.
Exhaust Pipe Location: Positioned in the front to minimize risks.
Braking System: Equipped with front disc brakes for superior control.
Speed-Limiting Device: Ensures compliance with transport regulations.
Rear Axle Suspension: Air suspension for a smoother and safer ride.
Enhance the vehicle’s functionality and aesthetics with multiple customization choices:

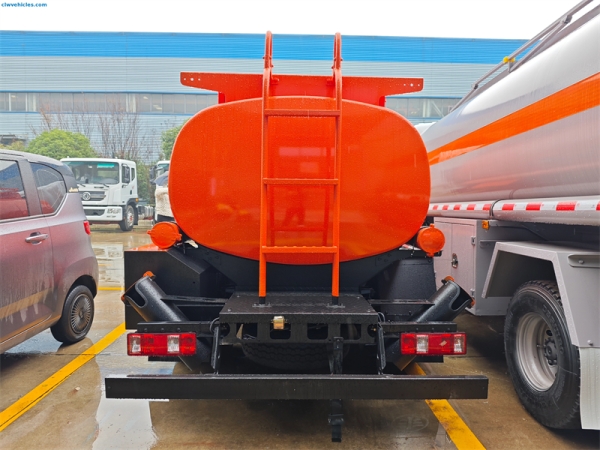

Rear Ladder Styles: Tailor designs to specific operational needs.
Side and Rear Body Appearances: Various options to suit branding or utility preferences.

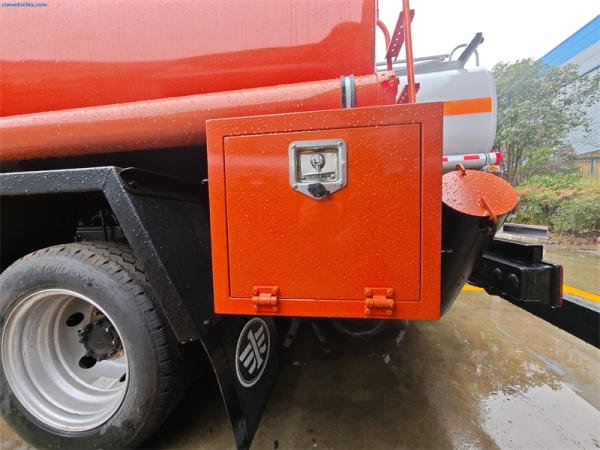

Pump Box and Toolbox Lock Styles: Multiple secure and durable configurations.
Safety Notice Boards: Custom placement options on both sides or the rear for improved visibility and compliance.
| Main Technology Parameter | |

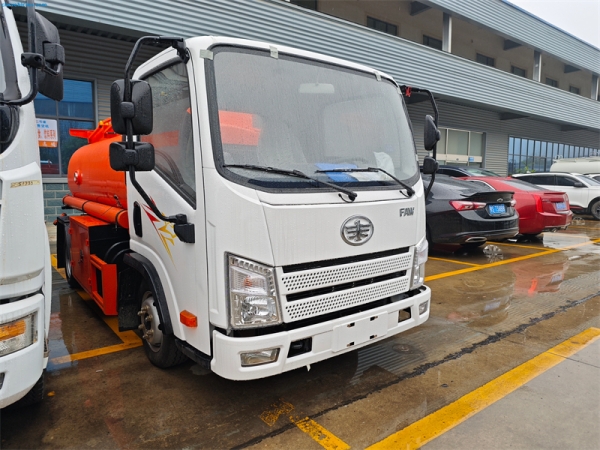

| Model Name | CLW Brand Faw 4x2 Oil Tank Truck |
| Driving Type | 4x2 |
| Color | White and orange or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 7360 |
| Rated Payload Weight(kg) | 3500 |
| Curb Weight(kg) | 3665 |
| Dimensions | |
| Wheelbase(mm) | 3300 |
| Front/Rear Overhang(mm) | 1115/1575 |
| Approach/Departure Angle | 20/14 |
| Overall Dimension(mm) | 5990x2040x2500 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP2.3NQ130E61 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 96(130hp) |
| Drive Line | |
| Transmission | 5 forwards,1 reverse gear |
| Axle | |
| Axle | 2640/4720 |
| Tire Specification | |
| Tire Specification | 7.00R16LT 14PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1580 |
| Rear Wheel Track(mm) | 1525 |
| Number of Leaf Springs | 3/3+3 |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 3700x1500x1000mm; 2.5cbm |
| Tank Material | Carbon steel Q235(Aluminum alloy) |
| Compartment Quantity(pcs) | 1/2 |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 2 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |
| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
