Production Description:

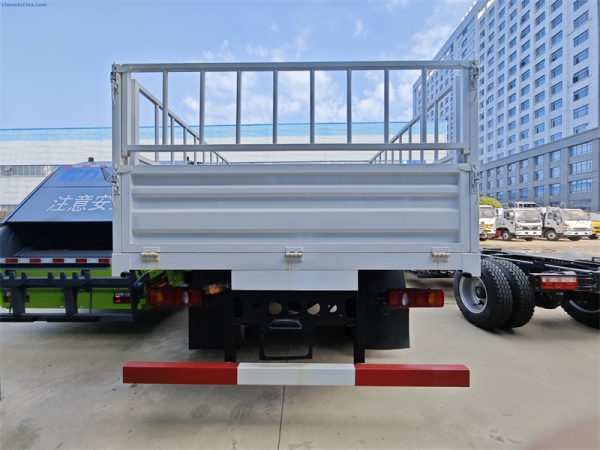

The material of the side protection and rear protection devices is Q235B carbon steel. The side protection is welded to the bottom of the box. The rear protection device is welded to the frame. The rear protection section size (mm): 140×50. The ground clearance is 500mm.
Optional parts for the cab include the front grille and side window glass. The three decorative lights in the middle of the cab roof, front fog lights, and the front spoiler of the cab are all optional. Optional wheel rim styles can be selected according to the chassis. Optional battery, urea tank, and air reservoir installation positions on the left and right. When a tailgate is selected, the material of the lower rear protection is Q235A carbon steel. The connection method is welding plus bolt connection. The section size (width × height) (mm): 50×120.
The ground clearance is 500mm. The horizontal length of the tailgate in the retracted state is 300mm. The weight of the tailgate is 440kg. This vehicle is equipped with disc brakes on the front wheels, a front-mounted exhaust pipe, and a tire burst emergency protection device on the steering wheels. The rear axle of this vehicle adopts an air suspension.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 6700 | |
| Loading Weight(kg) | 11105 | |
| Overall Dimension(mm) | 8600x2550x3130 | |
| Wheelbase(mm) | 4700 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFH1180EX9 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B190 33 |
| HP | 190 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 5900/140 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 640 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 11.00R22.5 16PR | |
| Dump | Box Dimension(mm) | 6200x2350x600 |
| Box | Manufacturers | ChengLi Special Automobile Co.,Ltd |
| Volume(cbm) | 8.7 | |
| Configuration(mm) | side:3,bottom:4 | |
| Material | Carbon steel | |
| Side Door | According to costomer | |
| Cabin | Brand | DongFeng |
| Model | Flat proof | |
| Seat | 3 | |
| Color | According to costomer | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
