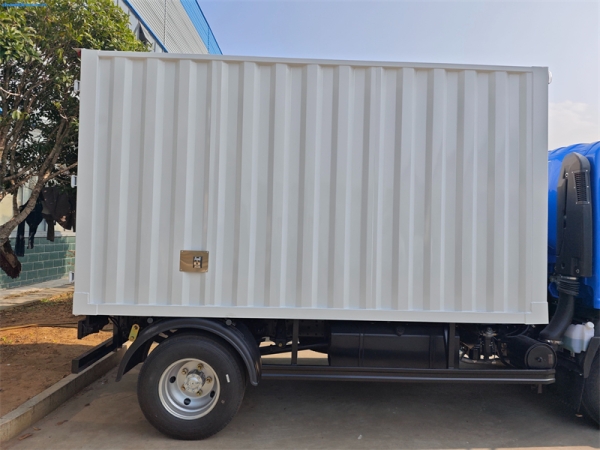

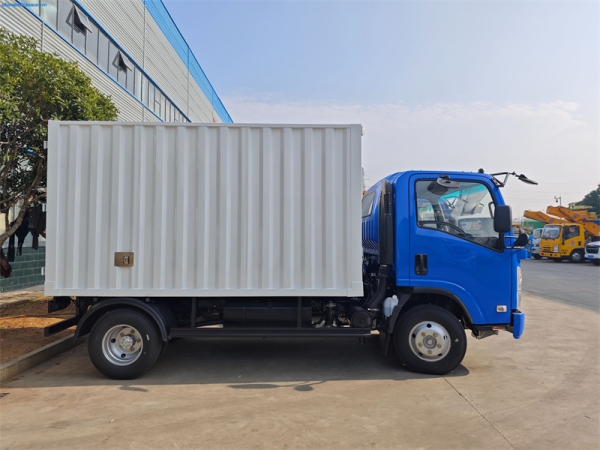

This van-type transport vehicle features a completely closed top, ensuring maximum security and protection for the cargo during transport. The top cannot be opened, making it ideal for transporting sensitive goods that require additional protection from the elements.
Side Protection: Made from durable Q235 steel plate, bolted securely to the bottom of the cargo box.

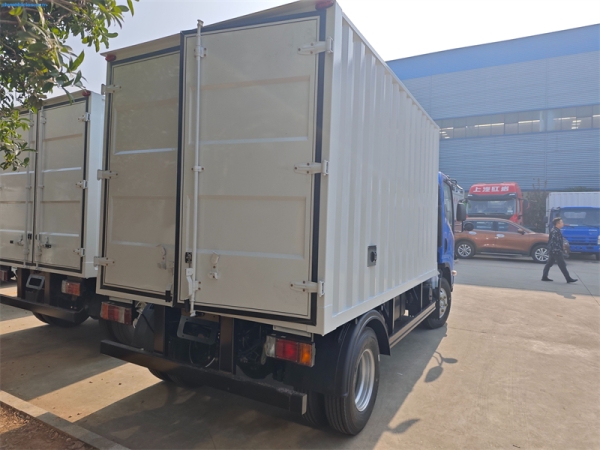

Rear Protection: Crafted from a 3.2 mm thick Q235 steel plate, the rear protection bracket is bolted to the rear end of the frame’s longitudinal beam. The cross-sectional dimension of the rear protection measures 143×55 mm, with a ground clearance height of 460 mm for added durability and safety.
The vehicle can be equipped with various rear-view mirrors, available in different styles.
Optional aluminum or iron rims are available, allowing for a more personalized aesthetic and improved performance.
Customers can also opt for a spare tire or choose the vehicle without one for cost-efficiency.
The transport vehicle offers flexibility in its cargo compartment design, available with single-sided or bilateral opening styles.
You can choose between a variety of side door and tail door styles to suit your needs.
The cargo compartment can be fitted with steel, aluminum flat plates, corrugated plates, or composite plate bodies, offering different appearance styles such as deep grooves or shallow grooves for efficient loading and unloading.
The vehicle can be fitted with different styling options, including chrome-plated corner plates, grilles, and wheel arches to enhance its overall appearance.
Nameplates in various styles can be added to give the vehicle a personalized touch.
Other optional components include the positioning of urea tank, battery, fuel tank, and various air filter styles.
Different styles of front bumpers and tail door designs are also available to further customize the vehicle to your specifications.
| Vehicle Description | Brand | CLW |
| GVW(kg) | 4460 | |
| Curb Weight(kg) | 2860 | |
| Loading Weight(kg) | 1400 | |
| Overall Dimension(mm) | 6010*1920*2880 | |
| Wheelbase(mm) | 3365 | |
| Front/Rear Overhang(mm) | 1015/1620 | |
| Approach/Departure Angle | `24/16 | |
| Axle Load(kg) | 3000/5280 | |
| Number of Cabs | 3 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | ISUZU | |
| Chassis Model | QL1080BUHAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4KH1CN6HB |
| HP | 132 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(ml/kw) | 4160/147 | |
| Fuel Type | 2999/97 | |
| Rate Speed(rpm) | Diesel | |
| Maximum Torque(N·m) | 290 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 6+1spare tire;7.00R16LT 14PR | |
| Front Wheel Track(mm) | 1504 | |
| Rear Wheel Track(mm) | 1525 | |
| Van | Box Size(mm) | 4015*1850*2100 |
| Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
