This van-type transport vehicle features a completely closed top, ensuring maximum security and protection for the cargo during transport. The top cannot be opened, making it ideal for transporting sensitive goods that require additional protection from the elements.
Side Protection: Made from durable Q235 steel plate, bolted securely to the bottom of the cargo box.

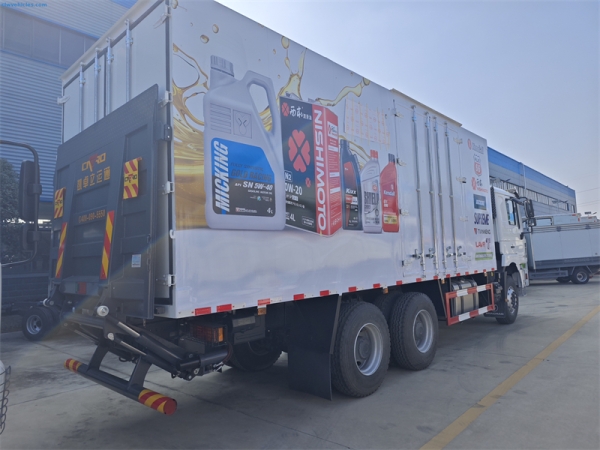

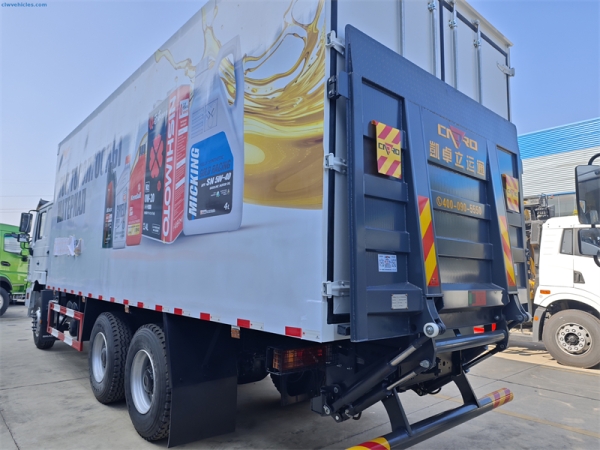

Rear Protection: Crafted from a 3.2 mm thick Q235 steel plate, the rear protection bracket is bolted to the rear end of the frame’s longitudinal beam. The cross-sectional dimension of the rear protection measures 143×55 mm, with a ground clearance height of 480 mm for added durability and safety.
The vehicle can be equipped with various rear-view mirrors, available in different styles.
Optional aluminum or iron rims are available, allowing for a more personalized aesthetic and improved performance.
Customers can also opt for a spare tire or choose the vehicle without one for cost-efficiency.
The transport vehicle offers flexibility in its cargo compartment design, available with single-sided or bilateral opening styles.
You can choose between a variety of side door and tail door styles to suit your needs.
The cargo compartment can be fitted with steel, aluminum flat plates, corrugated plates, or composite plate bodies, offering different appearance styles such as deep grooves or shallow grooves for efficient loading and unloading.
The vehicle can be fitted with different styling options, including chrome-plated corner plates, grilles, and wheel arches to enhance its overall appearance.
Nameplates in various styles can be added to give the vehicle a personalized touch.
Other optional components include the positioning of urea tank, battery, fuel tank, and various air filter styles.
Different styles of front bumpers and tail door designs are also available to further customize the vehicle to your specifications.
| Main Technology Parameter | |
| Model Name | CLW Brand Shacman 6x4 Van Body Truck |
| Driving Type | 6x4 |
| Color | white or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 14820 |
| Curb Weight(kg) | 10050 |
| Dimensions | |
| Wheelbase(mm) | 5575+1400 |
| Front/Rear Overhang(mm) | 1525/2600 |
| Approach/Departure Angle | 17/11 |
| Overall Dimension(mm) | 11500x2550x3800 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.340E32 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Rated Torque(Nm) | 1250 |
| Rated Speed(rpm) | 2200 |
| Max.Output(kw) | 250(340hp) |
| Drive Line | |
| Transmission | 10 forwards,2 reverse gear,10JSD180 |
| Axle | |
| Axle | 7500/13000/13000 |
| Tire Specification | |
| Tire Specification | 12.00R20 18PR; 10+1 spare tire |
| Front Wheel Track(mm) | 2036 |
| Rear Wheel Track(mm) | 1860/2200 |
| Number of Leaf Springs | 3/2+-/2+- |
| Upper Body | |
| Van Box Size(mm) | 8600x2500x2500 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Thickness(mm) | 6mm |
