Production Description:

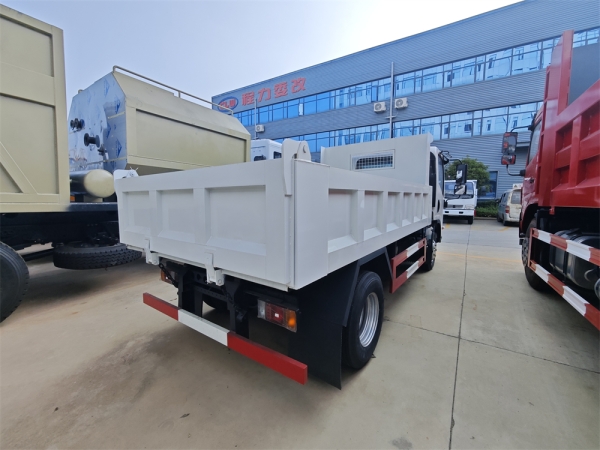

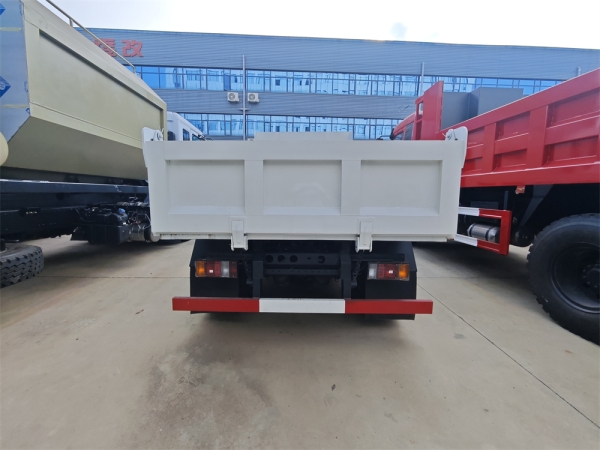

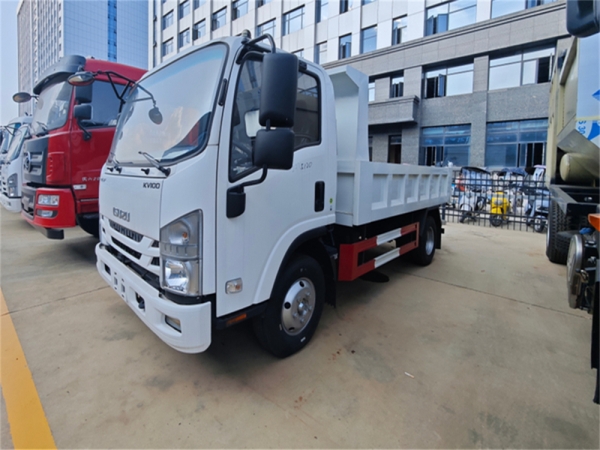

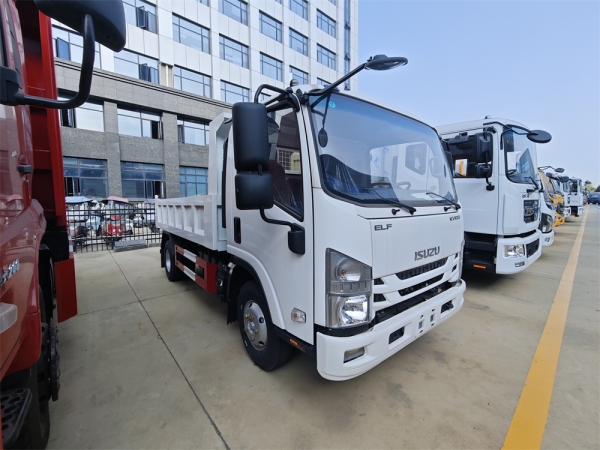

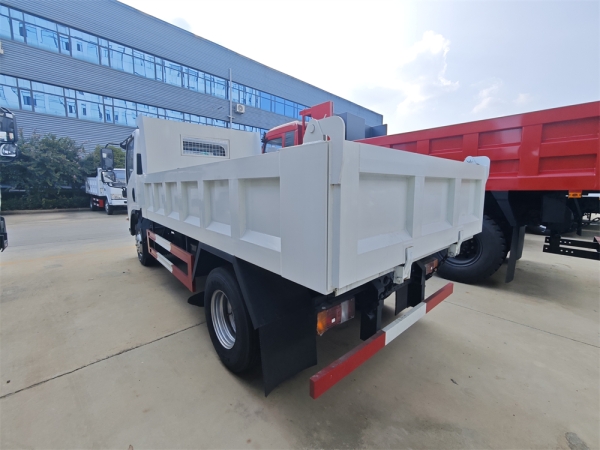

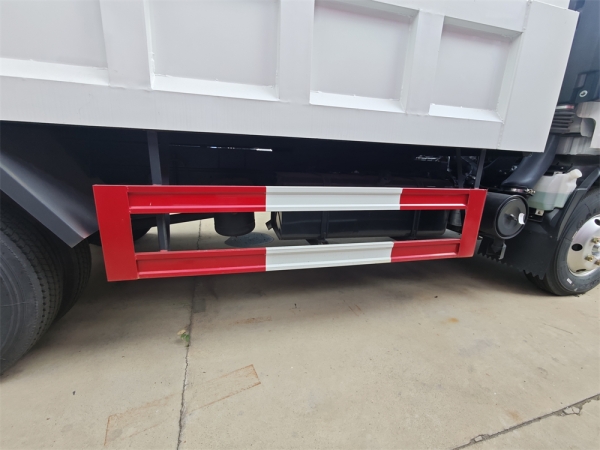

This Isuzu dump truck is based on the Isuzu ELF KV100 chassis and has excellent stability and reliability. The equipped 7.00R16LT 8PR tires can adapt to various road conditions and provide good support for the vehicle's driving. The overall vehicle size is 599521502380mm, which is relatively compact and flexible on the road, and can easily shuttle through various narrow areas.
Its power core is the 4KH1CN6LB engine, which has strong power of 120 horsepower and a power of 88kW. This engine provides abundant power output for the vehicle and is sufficient to handle various transportation tasks. Whether it needs strong torque when climbing or pursues stable power supply when driving at high speed, it can perform well. In actual use, this engine has good fuel economy and reduces operating costs. At the same time, its reliability has also been tested by the market and can maintain stable performance during long-term work, reducing the number of maintenance and time costs.
The upper part is a self-unloading cargo box. The cargo box size is 4205x2050x380mm. The cargo box is made of carbon steel with a thickness of 3mm on the side and 4mm on the bottom, which is sturdy and durable. The design of double cylinders 150 improves the efficiency and stability of unloading. At the same time, the thickness of the cargo box can be adjusted according to the specific requirements of users to meet the personalized needs of different users. In addition, a side door can be optionally installed to facilitate the loading and unloading of goods. The color of the cargo box and the color of the front of the vehicle can be customized according to customer needs, making the vehicle more personalized and meeting the aesthetic requirements of different customers. Whether transporting materials on a small construction site or transporting goods in other scenarios, this Isuzu dump truck can perform excellently.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 7300 | |
| Curb Weight(kg) | 2905 | |
| Loading Weight(kg) | 4200 | |
| Overall Dimension(mm) | 6840*2150*2380 | |
| Wheelbase(mm) | 3815 | |
| Axle Load(kg) | 2580/4720 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | QL | |
| Chassis Model | QL1080BUKAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4KH1CN6LB |
| HP | 120 | |
| Emission Standard | Eu 5 | |
| Displacement/Output(ml/kw) | 2999/88 | |
| Fuel Type | Diesel | |
| Maximum Torque(N·m) | 290 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 7.00R16LT 14PR | |
| Dump | Box Dimension(mm) | 4980*2050*380 |
| Box | Manufacturers | ChengLi Special Automobile Co.,Ltd |
| Volume(cbm) | 5 | |
| Configuration(mm) | side:3,bottom:4 | |
| Material | Carbon steel | |
| Side Door | According to costomer | |
| Cabin | Brand | Isuzu |
| Model | Flat proof | |
| Seat | 3 | |
| Color | According to costomer | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
