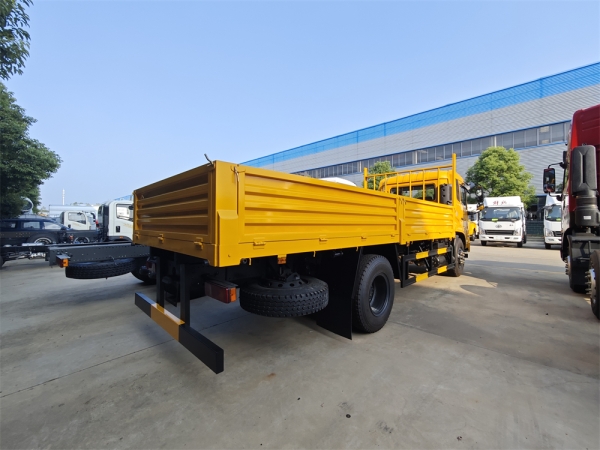

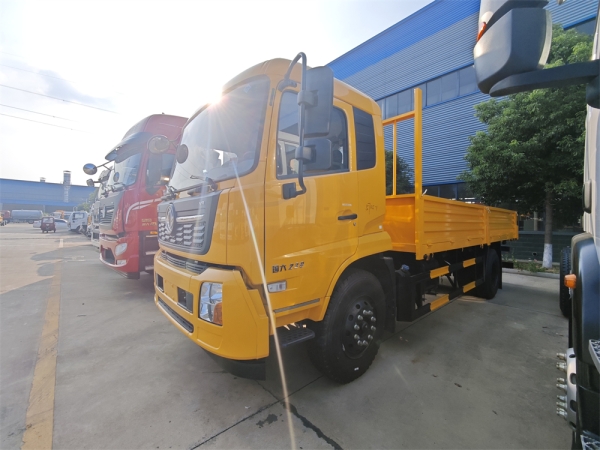

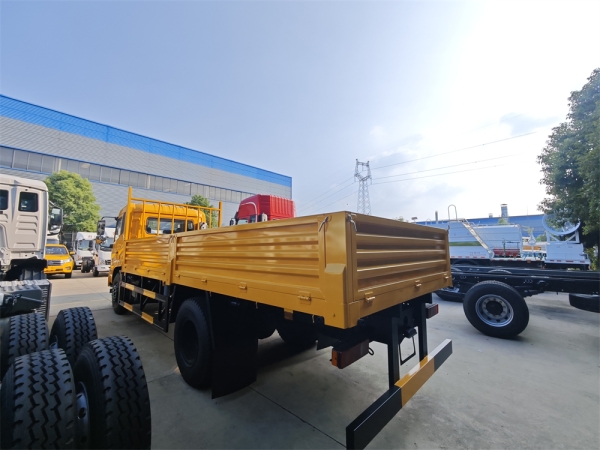

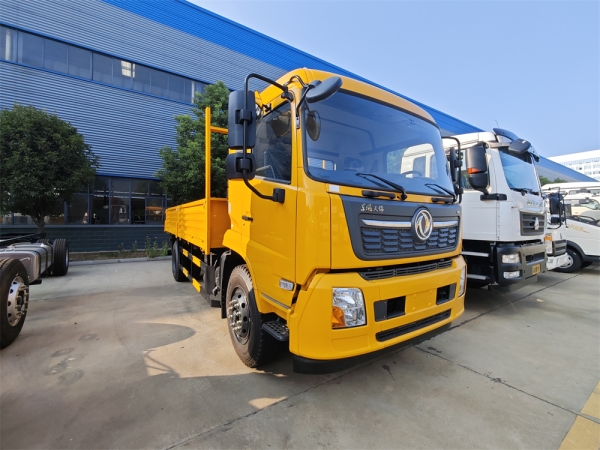

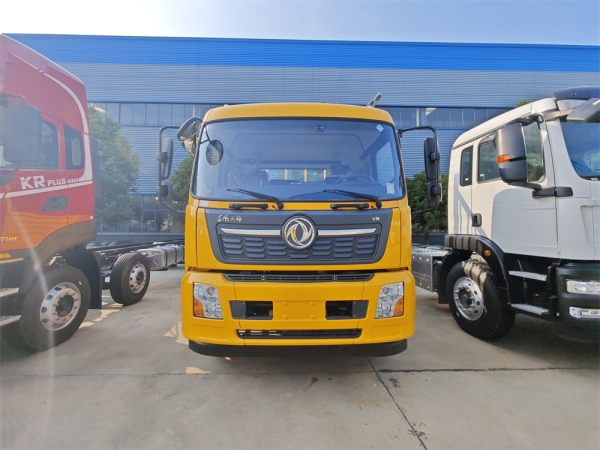

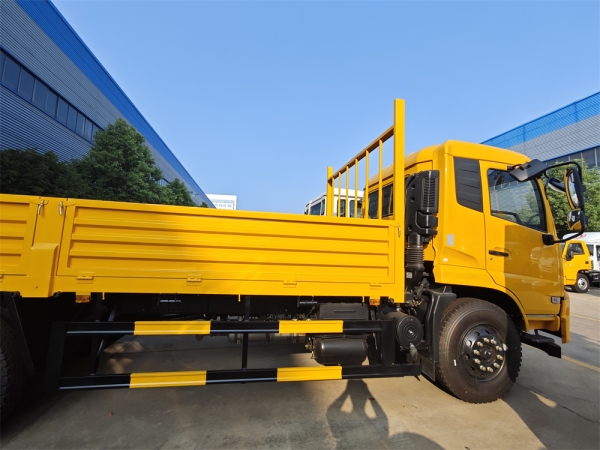

DongFeng KR 4x2 6 Wheels 10 Tons Dump Truck
Product Description:
The Dongfeng kr 4x2 6 wheels 10tons dump truck is a remarkable vehicle. The chassis is specifically designed using the Dongfeng chassis, which provides a solid and reliable foundation. The tires that are installed on this vehicle are of the 10.00R20 18PR type. In terms of the overall size of the vehicle, it measures 7120 millimeters in length, 2550 millimeters in width, and 3150 millimeters in height. The wheelbase is set at 3800 millimeters, ensuring a balanced and stable driving performance.
The engine of this dump truck is the B190 33 model. This engine is capable of generating a powerful horsepower of 190, and it has a displacement of 5.9 liters, enabling the vehicle to operate efficiently and smoothly.
When it comes to the upper-mounted device, the main component is the cargo box body. The self-unloading mechanism of this truck adopts a rear unloading approach. The cargo box has specific dimensions, with a length of 6000 millimeters, a width of 2300 millimeters, and a height of 600 millimeters. The volume of the cargo box is calculated to be 8.29 cubic meters.
The material used for the cargo box is carbon steel. The thickness of the side panels is 3 millimeters, while the bottom panel has a thickness of 4 millimeters. Moreover, it is made of T700 ultra-high-strength automotive steel, which endows the cargo box with outstanding durability and strength. The color of the vehicle body as well as the color of the cab can be customized according to specific requirements. Regarding the protection parts, the materials used for both the side protection and the rear protection are Q235A. The connection method between these protection parts and the vehicle body is by means of bolt connection, which ensures a firm and secure attachment.
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 8500 | |
| Loading Weight(kg) | 9370 | |
| Overall Dimension(mm) | 7120*2550*3150 | |
| Wheelbase(mm) | 3800 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFH1180EX8 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B190 33 |
| HP | 190 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 5900/140 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 640 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 10.00R20 18PR | |
| Dump | Box Dimension(mm) | 6000*2300*600 |
| Box | Manufacturers | ChengLi Special Automobile Co.,Ltd |
| Volume(cbm) | 8.28 | |
| Configuration(mm) | side:3,bottom:4 | |
| Material | Carbon steel | |
| Side Door | According to costomer | |
| Cabin | Brand | DongFeng KR |
| Model | Flat proof | |
| Seat | 3 | |
| Color | According to costomer | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
