Production Description:
1. The self-unloading method is rear unloading, equipped with a manual locking mechanism.
2. Optional appearance of the cargo box, optional appearance and layout type of the air reservoir, optional appearance of the battery box, optional door decals, optional appearance of the front wheel housing, optional appearance of the front lower protection.
3. The side guardrails and the rear guard are both formed by pressing with Q235 material and are connected by bolts. The maximum ground clearance height of the lower edge of the rear protection device is 320mm, 350mm, 380mm, and the cross-sectional dimensions are 120mm×60mm, 120mm×50mm.
Main Technical Parameters：
| Main Technology Parameter | |

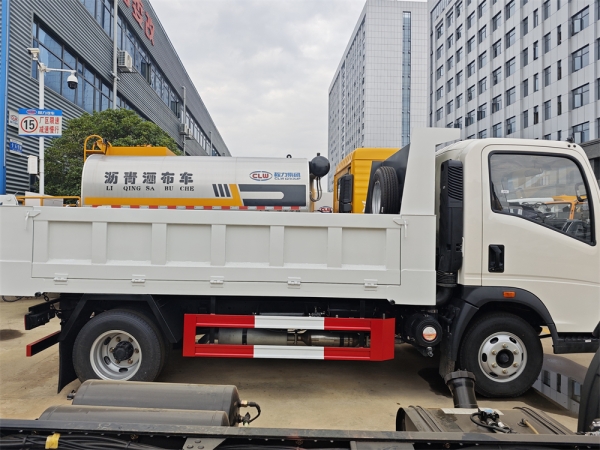

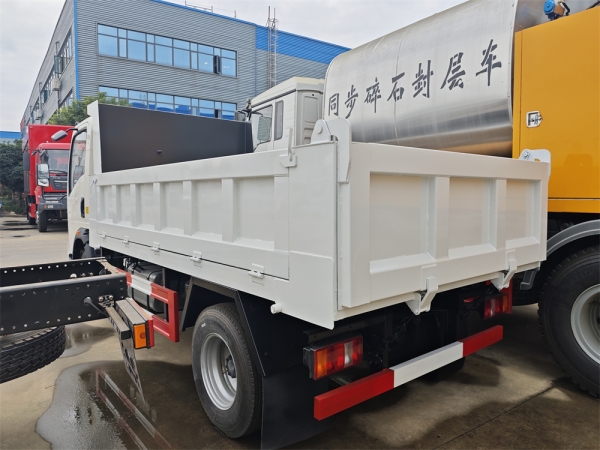

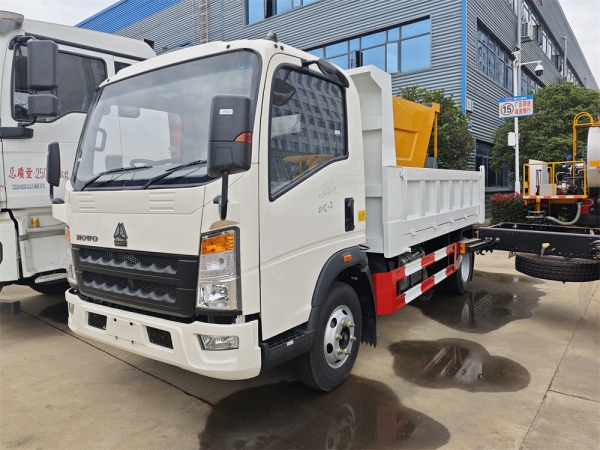

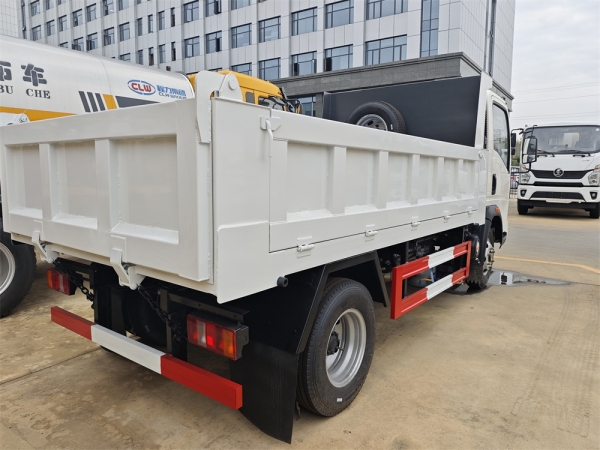

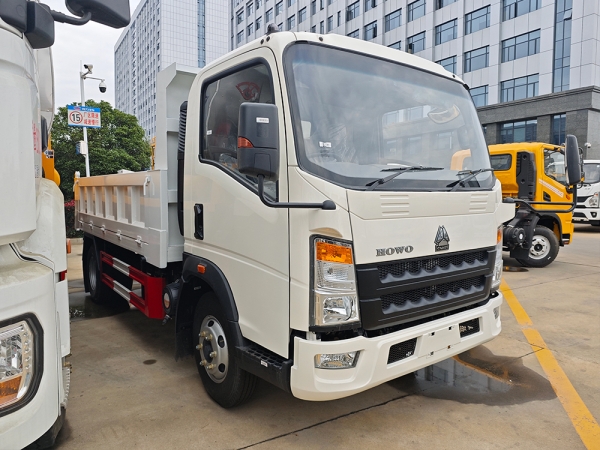

| Model Name | CLW Brand HOWO 4x2 Dump Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 11995 |
| Rated Payload Weight(kg) | 7765 |
| Curb Weight(kg) | 4100 |
| Dimensions | |
| Wheelbase(mm) | 3000 |
| Front/Rear Overhang(mm) | 1180/1115 |
| Approach/Departure Angle | 17/11 |
| Overall Dimension(mm) | 5195x2260x2175 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP3NQ170E62 |
| Engine Type | In-line 4-cylinder, common rail, DOC+DPF+SCR |
| Rated Torque(Nm) | 520 |
| Rated Speed(rpm) | 2800 |
| Max.Output(kw) | 125(170hp) |
| Drive Line | |
| Transmission | 5 forwards,1 reverse gear |
| Axle | |
| Axle | 4240/7755 |
| Tire Specification | |
| Tire Specification | 245/70R17.5 18PR |
| Front Wheel Track(mm) | 1605 |
| Rear Wheel Track(mm) | 1550 |
| Number of Leaf Springs | 5/7+5 |
| Upper Body | |
| Van Box Size(mm) | 3700x1900x600 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Thickness(mm) | 5 |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
