Technical Specifications of the CLW 5.25m³ Milk Tank Truck：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 9100 | |
| Curb Weight(kg) | 3820 | |
| Overall Dimension(mm) | 5990x2150x2520 | |
| Wheelbase(mm) | 3280 | |
| Axle Load(kg) | 3300/5800 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | HOWO | |
| Chassis Model | ZZ1097H3815F191Z | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | YC4D130-30 |
| HP | 130 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 4214/96 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2800 | |
| Maximum Torque(N·m) | 420 | |
| Maximum Torque Speed(rpm) | 1400-1800 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 7.50R16LT 16PR | |
| Fuel Tank | tank Capacity | 1.4000 liters to 10000 liters |
| 2.12000liters to 20000 liters | ||
| Tank shape | Oval shape | |
| Fuel tanker size | 3500x1800x1350 | |
| 5500x2000x1450 | ||
| Tank material | Mild steel/Stainless steel/Aluminium alloy | |
| Standard equipment | With oil pump, oil loading and discharging system. Equipment opting China standard or EURO or US standard..The tank could be separated several compartment. | |
| Also could modify in refuel or transport fuel tank truck. | ||
Product Description：

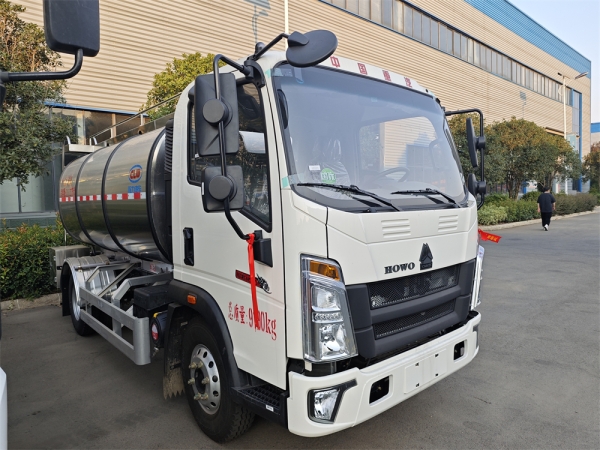

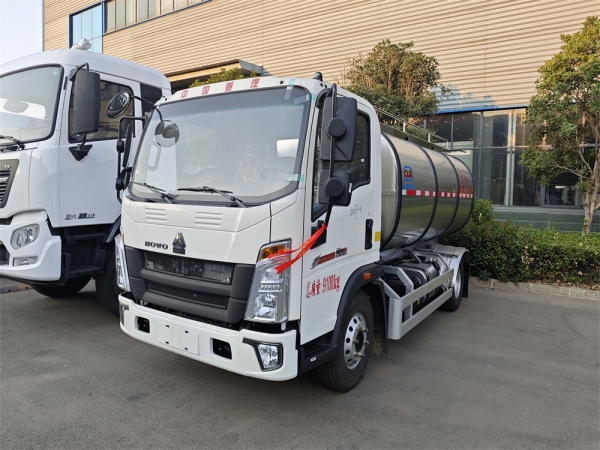

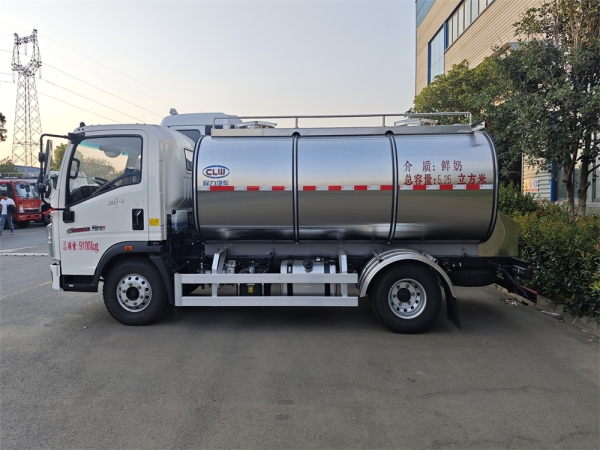

This bulk milk tank truck has a HOWO chassis. The tires equipped are 7.50R16LT 16PR. The overall vehicle size is 5990x2150x2520mm, and the wheelbase is 3280mm. Its engine is model YC4D130-30, with a horsepower of 130 and a displacement of 4.214L.

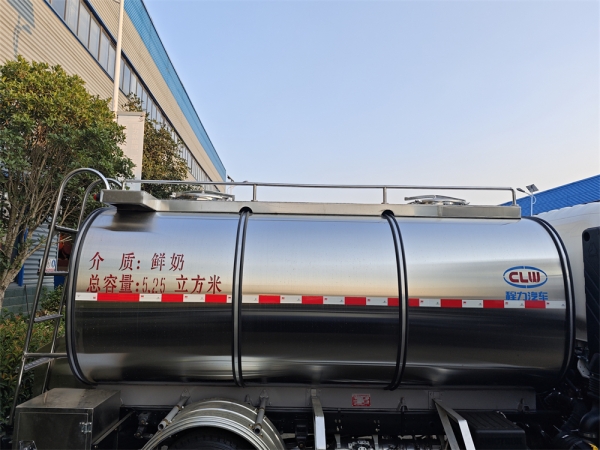

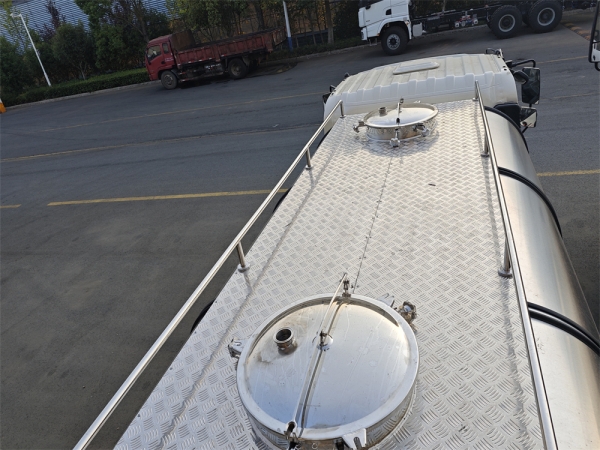

The upper-mounted part is a tank with a total capacity of 5.25 cubic meters and an effective volume of 5.085 cubic meters. The transport medium is fresh milk, with a density of 1000 kilograms per cubic meter. The external dimensions of the tank are 3820×1900×1350mm, and the thickness of the external insulation layer is 100mm. The internal dimensions of the tank are 3620×1700×1150mm.
The left and right side protections are connected by bolts, and the rear protection is connected by bolts and welding. The protection material is aluminum alloy. The protection section size is 100×50mm, and the ground clearance of the rear protection is 400mm.
This milk tank truck can be optionally equipped without a toolbox at the rear side and tail. Different tank mouth positions and cab appearance changes can also be selected to meet the needs and aesthetics of different users.
This HOWO 5.25 bulk milk tank truck can effectively maintain the temperature and quality of fresh milk during the transportation process, providing reliable guarantee for the safe transportation of fresh milk.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
