main technical parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 4495 | |
| Curb Weight(kg) | 3490 | |
| Overall Dimension(mm) | 5620*1700*2300 | |
| Front Axle(mm) | 1190 | |
| Rear Axle(mm) | 1630 | |
| Top Speed(km/h) | 110 | |
| Chassis Description | Chassis Brand | DongFeng |
| Chassis Model | EQ1045SJ16DC | |
| Wheelbase(mm) | 2800 | |
| Traction Type | 4X2 | |
| Engine Brand | QuanChai | |
| Engine Model | Q23-95E60 | |
| Emission Level | Eu 6 | |
| Displacement/Output(ml/kw) | 2300/70 | |
| Horsepower | 95 | |
| Fuel Type | Diesel | |
| Main Technical Configuration | Water Tank Volume(m³) | 1.5 |
| Dust Tank Volume(m³) | 1.8 | |
| Secondary Engine Model | RB8415 | |
| Output(kw) | 42 | |
| Wind Turbine Model | 5 | |
| Water Pump Model | DSG-5215 | |
| Water Pressure(Mpa) | 15 | |
| Water Pump Flow(L/min) | 52 | |
| Operation Parameters | Operating Speed(km/h) | 3.5-15 |
| Operating Width(mm) | 2050 | |
| Operating Area(m³) | 7175-30750 | |
| Maximum Suction Particle Size(mm) | 50 | |
| Dump Bin Tilting Angle | >42 | |
Main Functional Configurations:

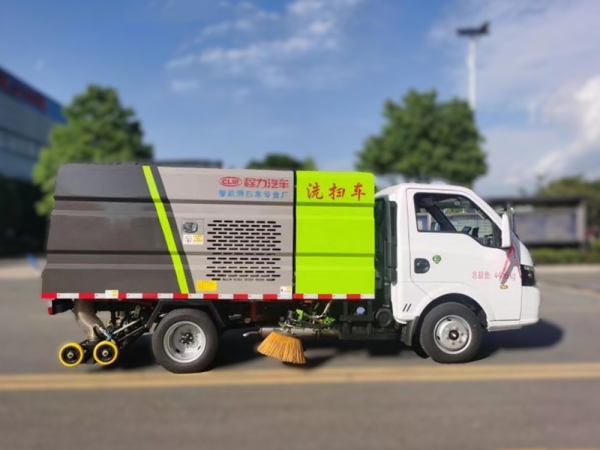

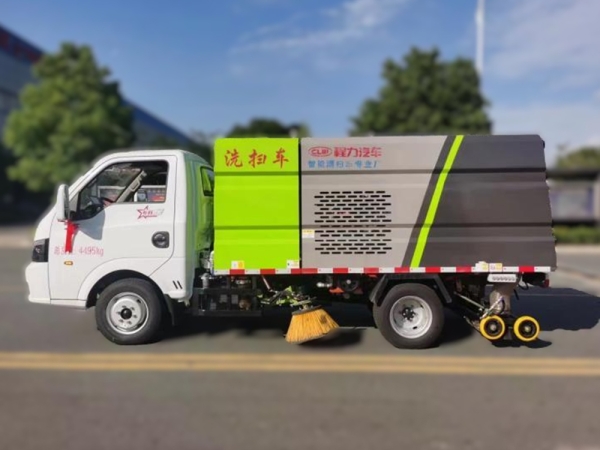

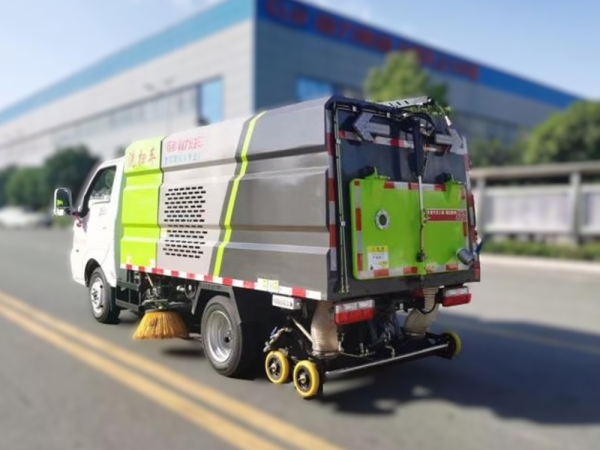

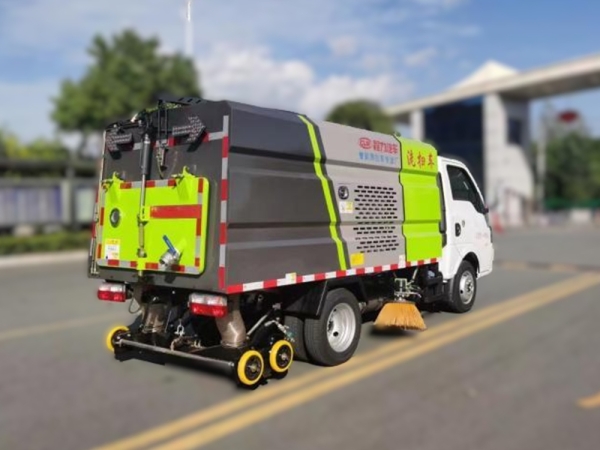

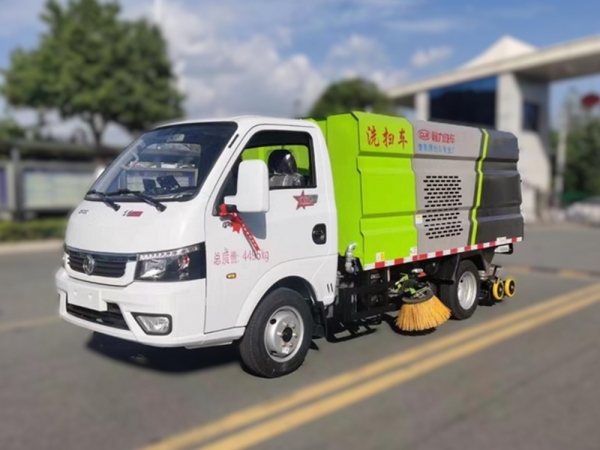

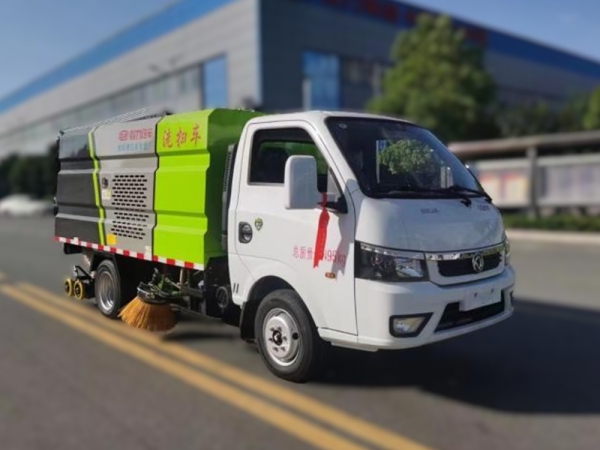

This 4x2 Road Cleaning Sweeper Truck use Yunnei 57-horsepower auxiliary engine, 5.0 high-pressure centrifugal fan, 50L high-pressure pump, China brand automatic clutch, 1.5 cubic meters clean water tank, 1.8 cubic meters stainless steel garbage bin. It has left and right vertical brooms in the middle, a suction cup at the rear, and a high-pressure gun rotating swing arm installed on the top of the box.
Working Principle:
The auxiliary engine drives the fan and the high-pressure pump to start working, combining high-pressure water spraying with suction and sweeping. Maximum Sweeping Width: 2050mm.
Sweeping System:
The sweeping system consists of left and right vertical brooms, cycloidal motors, and broom discs. The whole vehicle has two operation modes (full sweeping and right sweeping).
High-Pressure Water Spraying System:
The water spraying system of the whole vehicle consists of a high-pressure gun, suction cup water spraying, and left and right water spraying systems of the suction cup. The high-pressure gun pipeline is equipped with a 1.5-meter rotating swing arm. The left and right water spraying systems of the suction cup use a single nozzle for flushing. They can be manually turned on to work simultaneously, or be controlled separately, or all be turned off to extend the vehicle's operation time.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
