Product Description：

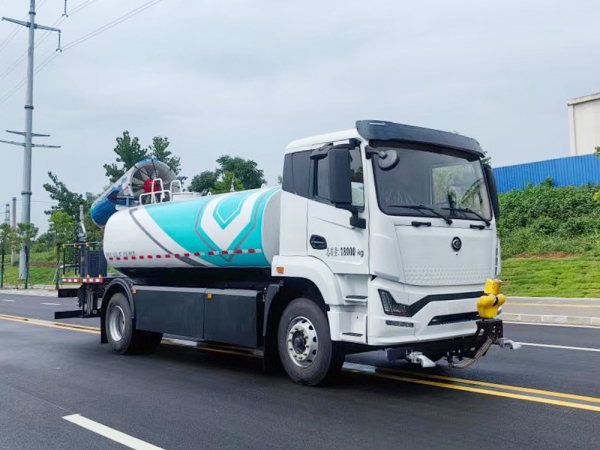

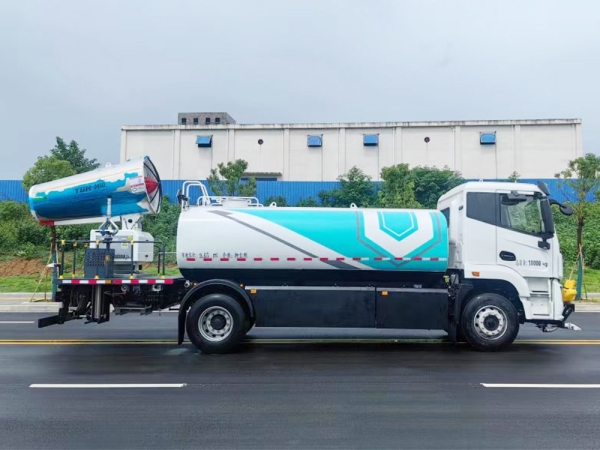

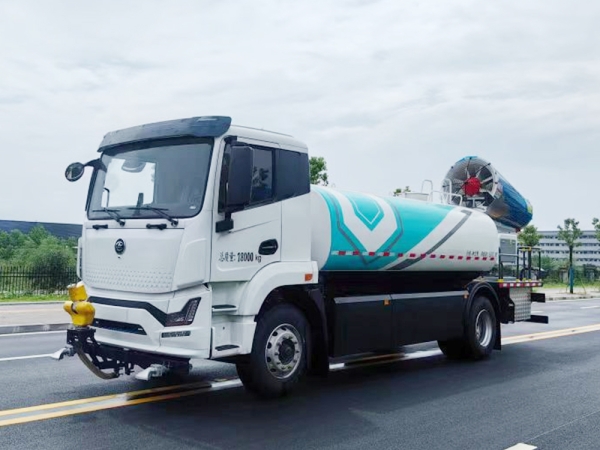

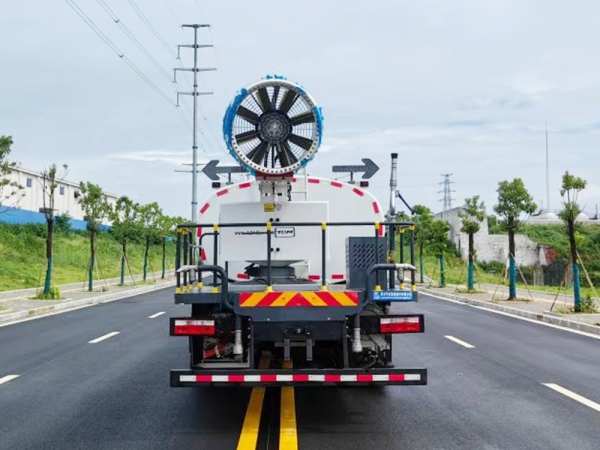

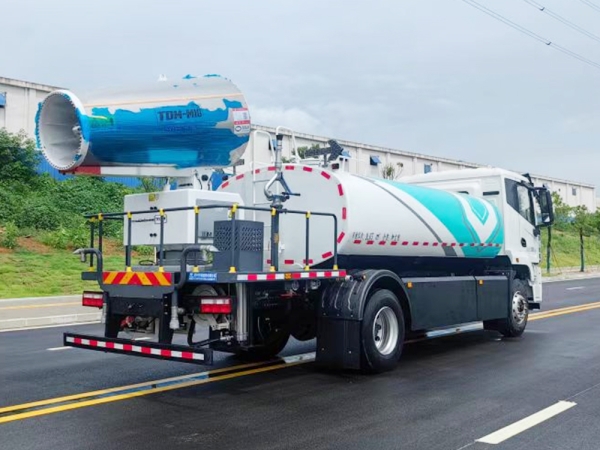

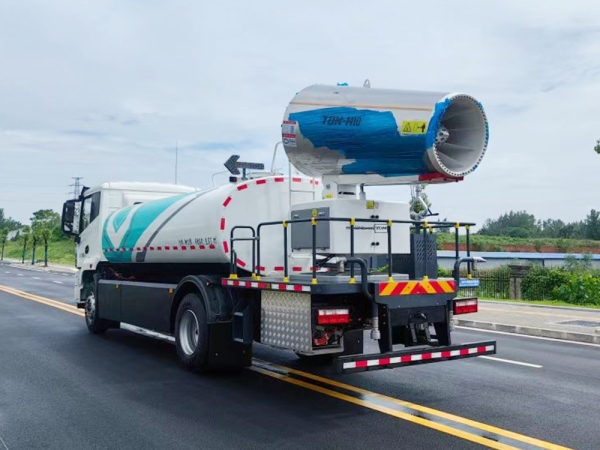

This electric dust suppression watering truck is equipped with special working devices such as water tanks and fog cannons, which are used to carry out road dust suppression operations.
Functional Configuration:
- Standard equipped with left and right front flushing duckbill nozzles (with universal adjustment), opposite-direction flushing nozzles (with universal adjustment), left and right rear sprinklers, left and right side sprayers, greening water cannons, and fog cannons.
- Front flushing width: ≥8m;opposite-direction flushing width: ≥24m; rear sprinkling width: ≥14m; water cannon shooting range: ≥40m; sprinkling speed: 7 - 20km/h.
- Side protection: Sheet metal battery cover + aluminum alloy side protection; large platform at the rear.
- On-board operation control: The cab is equipped with a knob control box and a low water level alarm device.
- Water filling methods: Top water filling and standard fire-fighting interface.
- On-board anti-corrosion: All structural parts are subject to internal and external electrophoresis + external painting, and the inside of the tank is anti-corrosive.
- Painting: Customizable painting schemes are available.
Other Configurations:
- Driver's seat: Airbag seat, four-way adjustable genuine leather seat.
- Central control: Remote control central control, electric window lifting.
- Steering wheel: Multi-functional steering wheel with cruise control.
- Display screens: 12.3-inch liquid crystal central control screen with 360-degree surround view function; 12.3-inch full liquid crystal digital instrument panel.
- Other functions: Vehicle traveling data recorder, automatic parking, tire pressure monitoring, ABS anti-lock braking system, electric hydraulic power assistance, air brake (front and rear drum brakes), single cold air conditioner + PTC, knob gear shifting, EPB electronic parking brake.
Technical Specifications of the CLW E High-pressure Water Sprinkle truck：
| Main Technology Parameter | |
| Model Name | CLW Brand E Dust Suppression Watering Truck |
| Driving Type | 4x2 |
| Color | white and blue or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 18000 |
| Rated Payload Weight(kg) | 7470 |
| Curb Weight(kg) | 10400 |
| Dimensions | |
| Wheelbase(mm) | 4800 |
| Front/Rear Overhang(mm) | 1490/3070 |
| Approach/Departure Angle | 16/8 |
| Overall Dimension(mm) | 10250x2550x3680 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | TZ366XS50E |
| Emission Standard | Electric |
| Engine Type | Permanent magnet synchronous motor |
| Max.Output(kw) | 120/200(272hp) |
| Drive Line | |
| Transmission | 4 forwards,1 reverse gear,AMT |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle | |
| Front Axle | Dena 6.5 tons |
| Rear Axle | Dena 11.5tons |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR |
| Front Wheel Track(mm) | 2016 |
| Rear Wheel Track(mm) | 1868 |
| Number of Leaf Springs | 8/10+7,3/4+3 |
| Upper Body | |
| Volume | 9.65m³ |
| Tank Size | 4800x2400x1450 |
| Raw Material | High-strength carbon steel |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 110m |
| Fog Cannon Model | TDM-M10 |
| Fog Cannon Power | 39kw |
| Water Consumption | 9.5m³/h |
