Product Description：

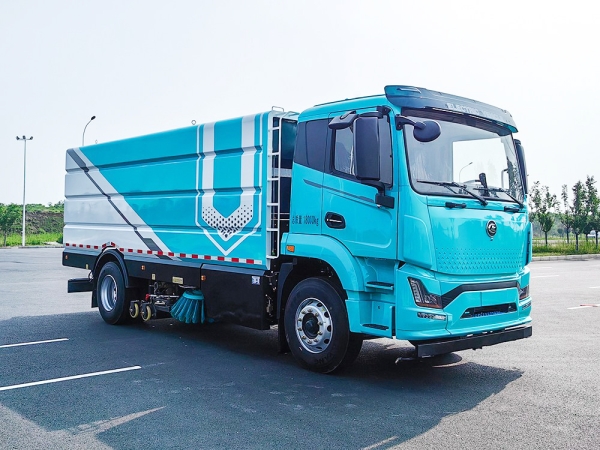

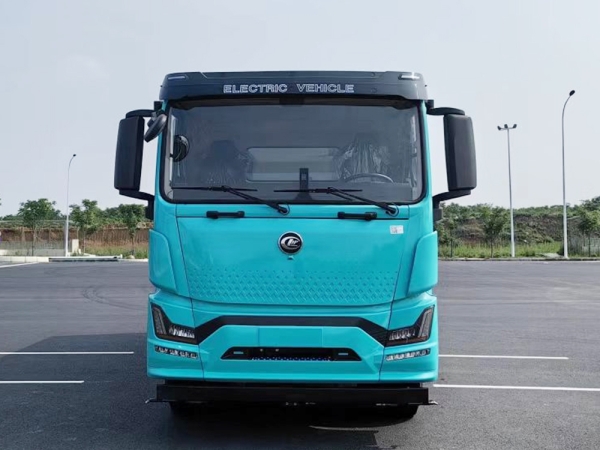

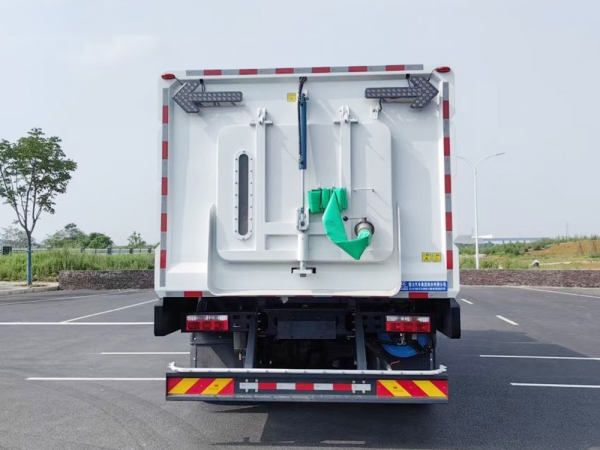

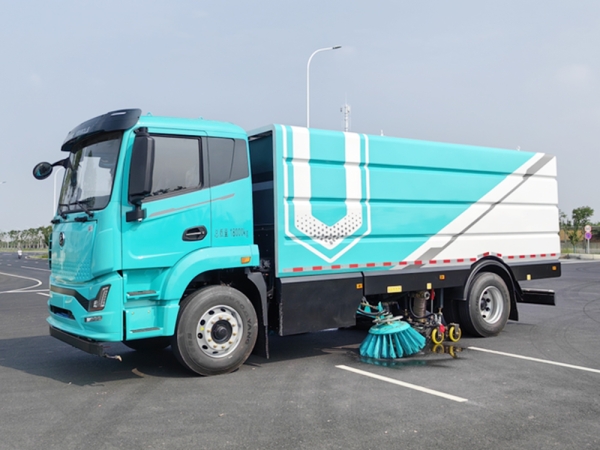

This vehicle is equipped with special working devices including a compartment body, sweeping discs, and suction cups, enabling it to perform road washing and sweeping operations.
I. Cab Amenities and Controls
- The driver's seat is an airbag seat with four-way adjustable genuine leather.
- It features remote control for the central locking system, electric window lifting, a multifunctional steering wheel with cruise control, a 12.3-inch liquid crystal central control screen, a 360-degree surround view function, an integrated electric rear-view mirror with heating function, a single-cooling air conditioner + PTC (Positive Temperature Coefficient), a rotary gear shift, EPB (Electric Parking Brake) electronic parking brake, a 12.3-inch full liquid crystal digital instrument panel, a driving recorder, automatic parking, tire pressure monitoring, ABS (Anti-lock Braking System) anti-lock braking, electric hydraulic power assistance, and air brake system (front and rear drum brakes).
II. Vehicle Operation Modes
- The cleaning vehicle adopts the mode of "two central sweeping discs + a central wide suction nozzle (with built-in high-pressure water spray bar) + a central high-pressure side spray bar".
- It has three operation function modes:
- Washing and sweeping mode.
- Washing and suction mode.
- Dry sweeping mode.
- Under each of these three operation function modes, there are three options for energy consumption modes:
- "High power".
- "Standard".
- "Energy-saving".
- Also, under the three operation function modes and three energy consumption modes, there are options for "full sweep" and "right sweep" respectively.
- The sweeping discs can select three rotation speeds: "high speed", "medium speed", and "low speed" under the various modes.
III. Additional Functions
- It has functions such as rear spray, left and right front corner spray, high-pressure handheld spray gun, self-cleaning, and winter drainage.
IV. Superstructure Operation and Anti-corrosion
- Operation control of the superstructure: central control screen in the cab + operation panel.
- Anti-corrosion of the superstructure: all structural parts are sprayed with standard glacier white powder coating, and powder coating with other colors for the finish coat needs to be customized.
V. Other Features
- Coating: Customizable coating schemes are available.
- It is equipped with a monitoring camera on the right side and has a 360-degree surround view function.
Technical Specifications of the CLW E High-pressure Water Sprinkle truck：
| Main Technology Parameter | |
| Model Name | CLW Brand E High-pressure Sweeper and Washing Truck |
| Driving Type | 4x2 |
| Color | white and blue or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 18000 |
| Rated Payload Weight(kg) | 6070 |
| Curb Weight(kg) | 11800 |
| Dimensions | |
| Wheelbase(mm) | 4800 |
| Front/Rear Overhang(mm) | 1490/2320 |
| Approach/Departure Angle | 16/15 |
| Overall Dimension(mm) | 8610x2530x3250 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | TZ366XS50E |
| Emission Standard | Electric |
| Engine Type | Permanent magnet synchronous motor |
| Max.Output(kw) | 120/200(272hp) |
| Drive Line | |
| Transmission | 4 forwards,1 reverse gear,AMT |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle | |
| Front Axle | Dena 6.5 tons |
| Rear Axle | Dena 11.5tons |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR |
| Front Wheel Track(mm) | 2016 |
| Rear Wheel Track(mm) | 1868 |
| Number of Leaf Springs | 8/10+7,3/4+3 |
| Upper Body | |
| Volume of Clean Water Tank | 8.9m³ |
| Volume of Dust Bin | 6.6m³ |
| Material of Dust Bin | 304 Stainless Steel |
| Material of Clean Water Tank | Q235 |
| Rated/Peak Power of the Motor | 50/100kw |
| Pumps Brand | PINFL |
| Pressure of Cleaning Water | 7MPa |
| Cleaning/Sweeping Width | 3.5m |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
