Product Description：

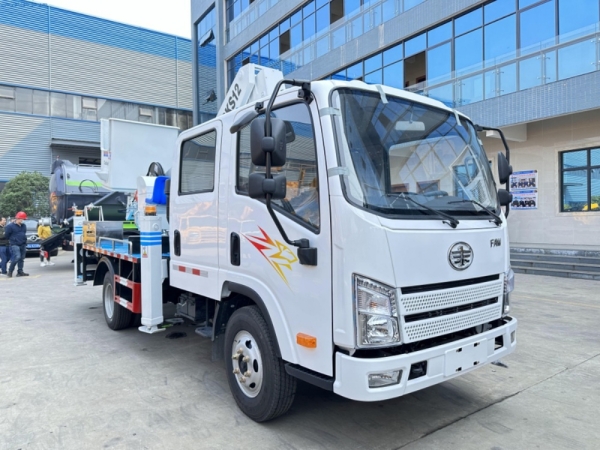

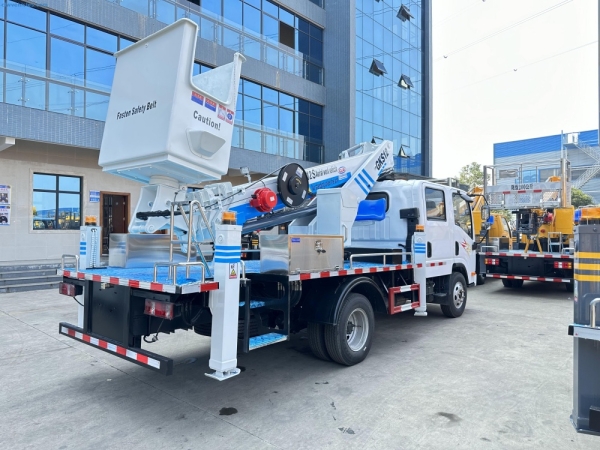

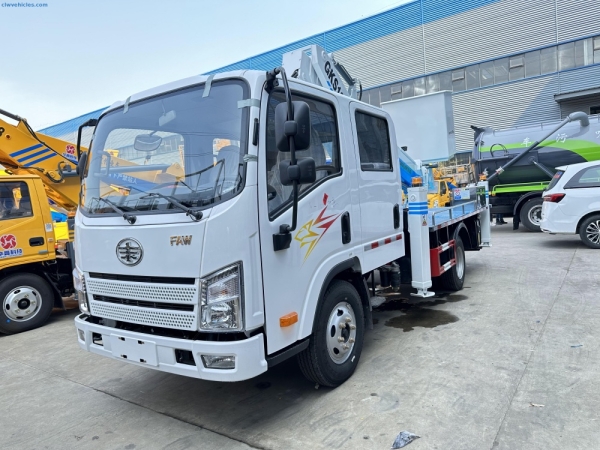

1. This FAW 4x2 12m Aerial Work Platform Truck is mainly used for high-altitude operations such as emergency repair of power, communications, and street lights. The special devices are the lifting platform and operating arm.
2. The side protection material is Q235, connected by bolts. The material of the rear lower protection device is Q235 carbon steel. The connection method is welding. The cross-sectional dimensions (width × height) of the rear lower protection device are (mm): 50×100. The ground clearance is 430mm.
3. Optional cab according to the chassis. Optional upper structure appearance of the operating arm style, optional operation bucket style, optional turntable special device control room style, optional upper operation style, winch and sensor style.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 4495 | |
| Curb Weight(kg) | 4365 | |
| Overall Dimension(mm) | 5998x2090x3250 | |
| Wheelbase(mm) | 3300 | |
| Axle Load(kg) | 1950/2545 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | FAW | |
| Chassis Model | CA1043P40K50L2BE | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP2.5NQ160E61 |
| HP | 160 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(L/kw) | 2.49/118 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2900 | |
| Maximum Torque(N·m) | 450 | |
| Maximum Torque Speed(rpm) | 1400-2200 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 6.50R16LT 10PR | |
| Upper Body Configuration | Platform Working Height(m) | 12 |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic | |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers Span:4200mm horzontal,4000mm vertical | |

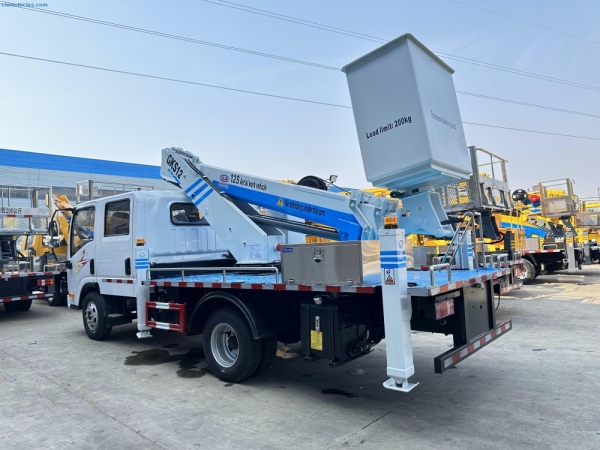

| Bucket | 200kg(optional insulation buket) | |
| Slewing Device | Two-way 360° continuous slewing | |
| 360° slewing bucket | ||

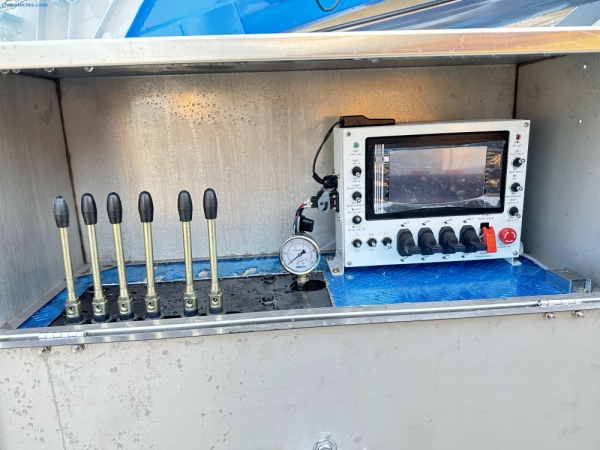

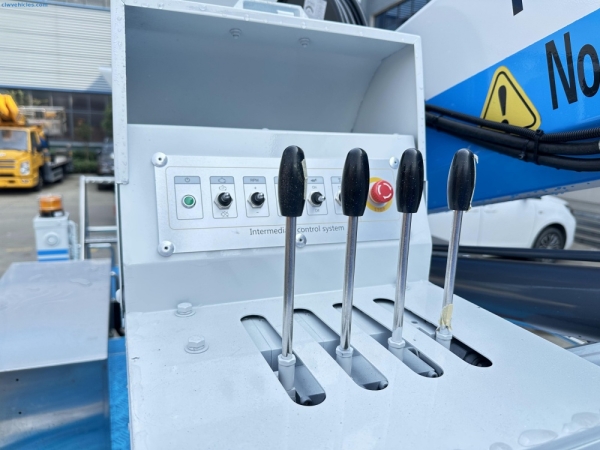

| Operating System | Up and down operation both on ground and in bucket | |
| Wireless remote control+platform operatio+manual 3 groups of operating | ||
| Emergency Device | yes | |
