Product Description：
1. This vehicle is mainly used for emergency repair of electricity, communications, street lights and other high-altitude operations. The special devices are lifting platforms and operating arms.
2. The chassis with a wheelbase of 2800 or 3280 mm is selected for modification. The corresponding relationship between the overall length/front overhang/wheelbase/rear extension/rear overhang of the vehicle (in mm) is: 5998/1160/3280/1558/0.
3. The side protection material is aluminum alloy, connected by welding and bolts. The material of the lower rear protection device is Q235 carbon steel. Connection method: welded connection. The cross-sectional dimensions (width × height) of the lower rear protection device (in mm) are: 50×100. Ground clearance: 440mm.
4. Select the cab with the chassis. Optional upper operation style, winch and sensor style, optional operation bucket style, optional turntable special device control room style. Optional side and rear appearance style.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 4495 | |
| Curb Weight(kg) | 4365 | |
| Overall Dimension(mm) | 5998x2100x3350 | |
| Wheelbase(mm) | 3280 | |
| Axle Load(kg) | 1790/2705 | |
| Top Speed(km/h) | 80 | |
| Chassis Brand | HOWO | |
| Chassis Model | ZZ1047C3313F145 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP2.5NQ150E61 |
| HP | 150 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(L/kw) | 2.49/110 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2900 | |
| Maximum Torque(N·m) | 400 | |
| Maximum Torque Speed(rpm) | 1400-2200 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 6.50R16LT 12PR | |
| Upper Body Configuration | Platform Working Height(m) | 12 |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic | |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers Span:4200mm horzontal,4000mm vertical | |
| Bucket | 200kg(optional insulation buket) | |
| Slewing Device | Two-way 360° continuous slewing | |
| 360° slewing bucket | ||

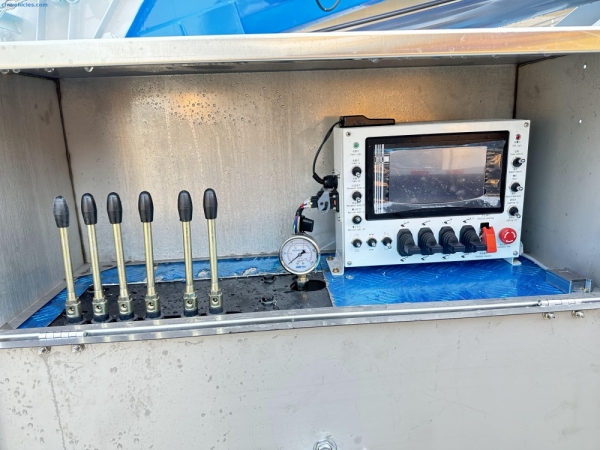

| Operating System | Up and down operation both on ground and in bucket | |
| Wireless remote control+platform operatio+manual 3 groups of operating | ||
| Emergency Device | yes | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
