Product Description：

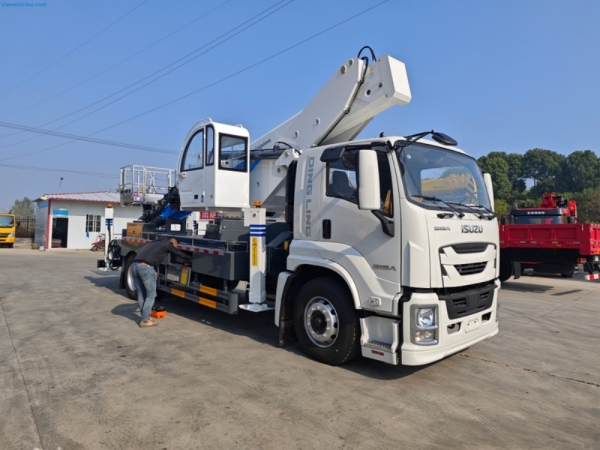

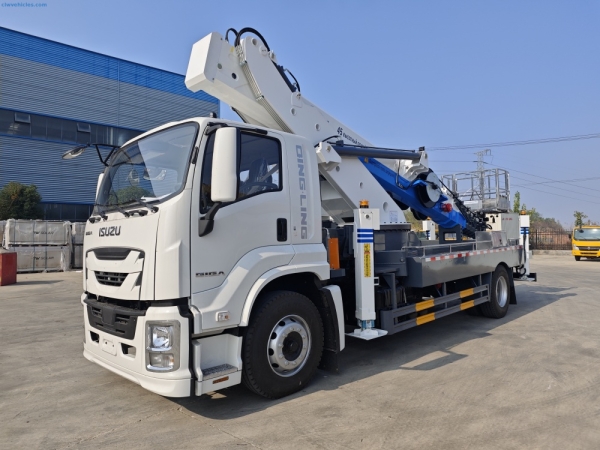

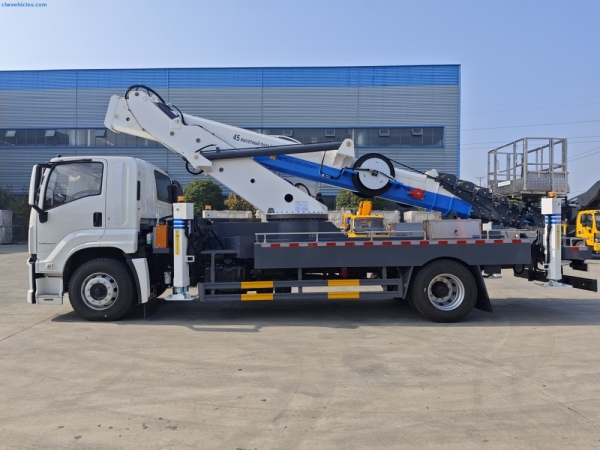

This vehicle is used for high-altitude operations such as emergency repair of electric power, communications and street lights.

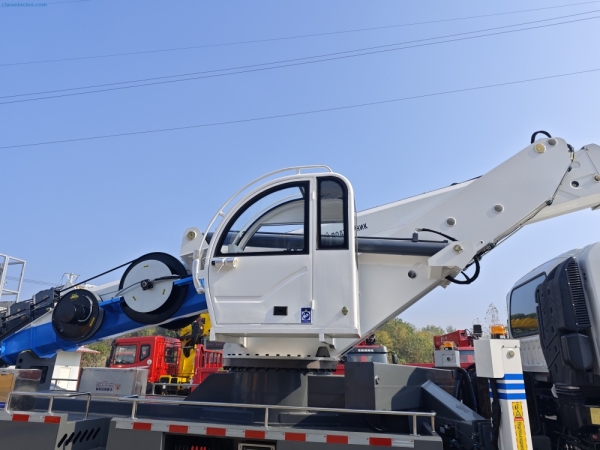

This vehicle is composed of hydraulic mechanisms, booms, turntables, work platforms, outriggers, etc. The work platform can be lifted to the working position by the rotation of the turntable.
The rear overhang of the vehicle is 500 mm. The material of the side protection is aluminum alloy, and the connection method is bolt connection. The material of the rear protection is Q235, and the connection method is welded connection. The cross-sectional dimension of the rear protection is 150 × 50 mm, and the height of the lower edge from the ground is 440 mm.
The outriggers are equipped with warning lights for operation, and the booms and baskets are equipped with lighting lamps, which are used for warning and illumination during operations. They can only be used when the vehicle is switched to the working state and cannot be turned on when the vehicle is in the driving state.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU Aerial Work Platform Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 18000 |
| Curb Weight(kg) | 17805 |
| Dimensions | |
| Wheelbase(mm) | 5550 |
| Front/Rear Overhang(mm) | 1335/2960 |
| Approach/Departure Angle | 15/8 |
| Overall Dimension(mm) | 10345x2550x3850 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 4HK1-TCG60 |
| Engine Type | Common rail system;EGR+DOC+DPF+SC |
| Rated Torque(Nm) | 647 |
| Rated Speed(rpm) | 2600 |
| Max.Output(kw) | 151(205hp) |
| Drive Line | |
| Transmission | 8 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 6500/11500 |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR; 6+1spare tire |
| Front Wheel Track(mm) | 1960 |
| Rear Wheel Track(mm) | 1855 |
| Number of Leaf Springs | 7/7+7 |
| Upper Body Configuration | |
| Working Platform Dimensions(mm) | 3200x850x1200 |
| Max Working Height(m) | 45 |
| Max Operating Range(m) | 28 |
| Rate Load(kg) | 200 |
| Operating Range at Max Working Height(m) | 3 |
| Working Boom | 7 section synchronous telescopic boom |
| Rotary Device | 360° continuous rotation |
| Outrigger | X-type hydraulic outrigger, separately controlled |
| Outrigger Span(TVS) | 8200mm |
| Outrigger Span(I) | 7300mm |
| Operation Mode | Remote/electric/manual |
| Emergency System | Automatic |
| Control Voltage | 24V |
