Product Description：

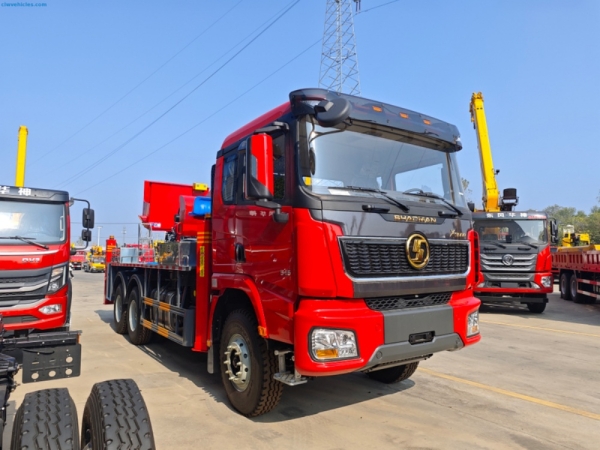

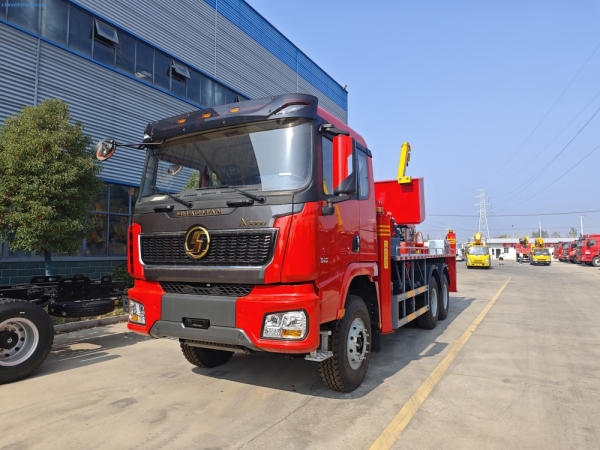

This vehicle is used for high-altitude operations such as emergency repair of electric power, communications and street lights.

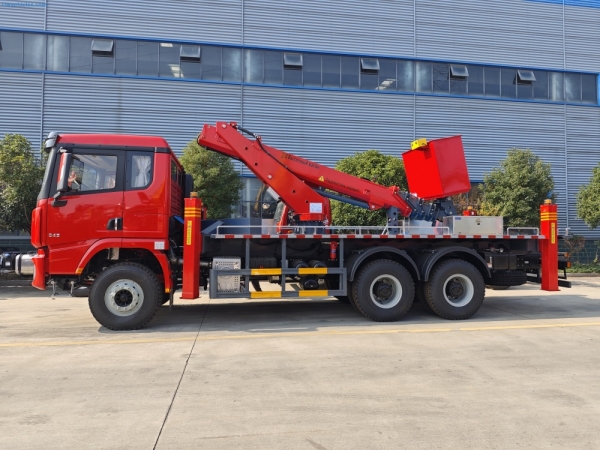

This vehicle is composed of hydraulic mechanisms, booms, turntables, work platforms, outriggers, etc. The work platform can be lifted to the working position by the rotation of the turntable.

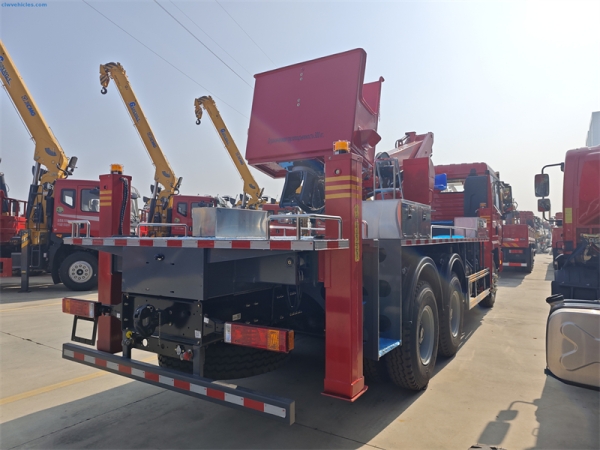

The rear overhang of the vehicle is 500 mm. The material of the side protection is aluminum alloy, and the connection method is bolt connection. The material of the rear protection is Q235, and the connection method is welded connection. The cross-sectional dimension of the rear protection is 150 × 50 mm, and the height of the lower edge from the ground is 440 mm.

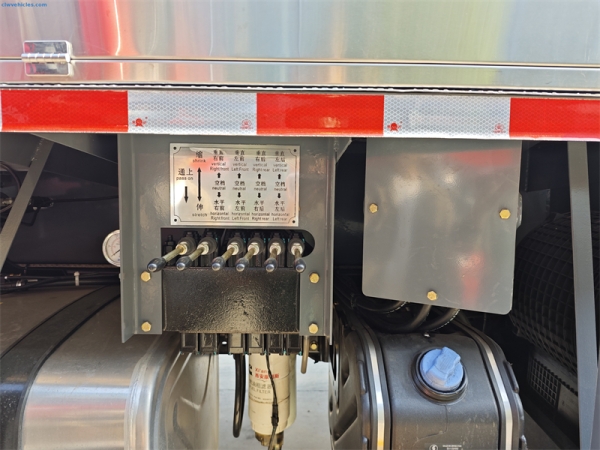

The outriggers are equipped with warning lights for operation, and the booms and baskets are equipped with lighting lamps, which are used for warning and illumination during operations. They can only be used when the vehicle is switched to the working state and cannot be turned on when the vehicle is in the driving state.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand Shacman Aerial Work Platform Truck |
| Driving Type | 6x4 |
| Color | Red or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 25000 |
| Curb Weight(kg) | 22880 |
| Dimensions | |
| Wheelbase(mm) | 4350+1350 |
| Front/Rear Overhang(mm) | 1480/1665 |
| Approach/Departure Angle | 23/15 |
| Overall Dimension(mm) | 9210x2500x3980 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.340E32 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve brake, direct injection,turbocharged and itercooled |
| Rated Torque(Nm) | 1250 |
| Rated Speed(rpm) | 2200 |
| Max.Output(kw) | 250(340hp) |
| Drive Line | |
| Transmission | 10 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 7000/18000/18000 |
| Tire Specification | |
| Tire Specification | 315/80R22.5 18PR; 10+1spare tire |
| Front Wheel Track(mm) | 1965 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 9/10 |
| Upper Body Configuration | |
| Platform Working Height | 24m |
| Maximum Operating Height | 3m |
| Maximum Operating Range | 12m |

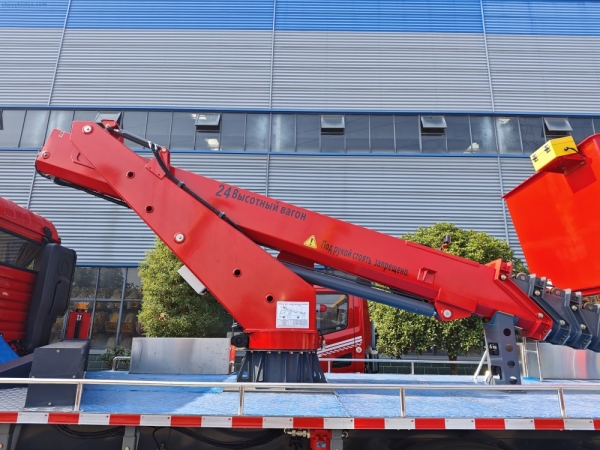

| Boom Type | 4-section hexagonal working arm,synchronous telescopic |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers |
| Span:4200mm horzontal,4000mm vertical | |
| Bucket(kg) | 200 (optional insulation buket) |
| Slewing Device | Two-way 360° continuous slewing |
| 360° slewing bucket | |
| Operating System | Up and down operation both on ground and in bucket |
| Wireless remote control+platform operatio+manual 3 groups of operating | |
| Control Voltage | 12V |
| Maximum Working Wind Speed | Class 4 wind |
| Emergency Device | yes |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
