Product Description：

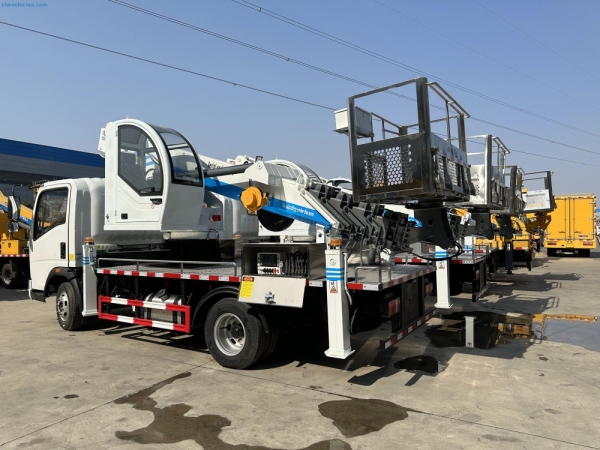

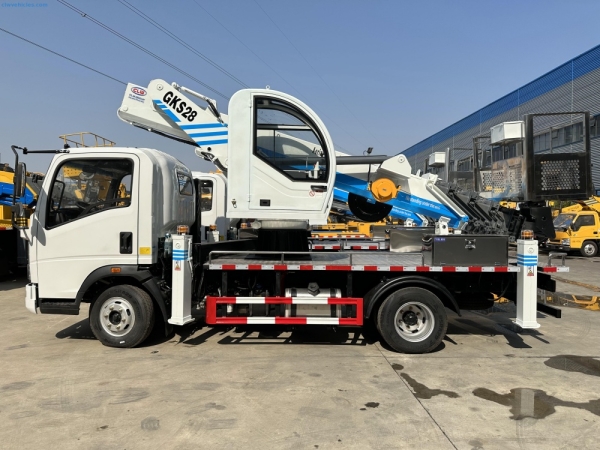

1. This vehicle is composed of hydraulic mechanism, boom, turntable, working platform, outriggers, etc. Through the extension of the boom and the rotation of the turntable, the working platform is lifted to the operating position.

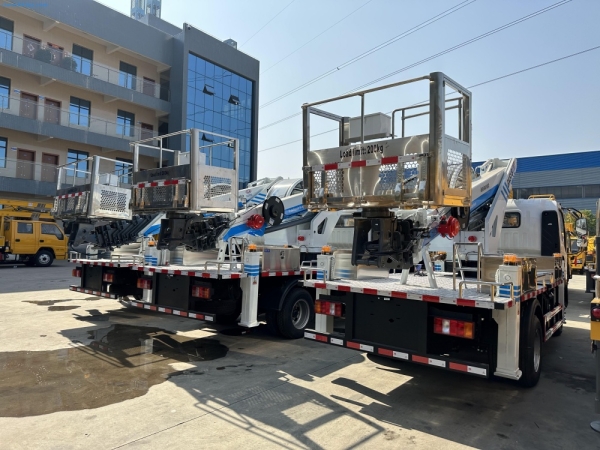

2. The material of the side protection is aluminum alloy, and the connection method is bolt connection. The material of the rear protection is Q235, and the connection method is welding connection. The cross-sectional dimension of the rear protection is 50x120mm, and the ground clearance of the lower edge is 480mm.
3. The outriggers and boom are equipped with operation warning lights, and the boom is equipped with lighting lamps above, which are used for warning and lighting during operation. They can only be used when the vehicle is switched to the operating state and cannot be lit in the driving state.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 14060 | |
| Curb Weight(kg) | 13865 | |
| Overall Dimension(mm) | 8640x2550x3450 | |
| Wheelbase(mm) | 4500 | |
| Axle Load(kg) | 4860/9200 | |
| Top Speed(km/h) | 80 | |
| Chassis Brand | HOWO | |
| Chassis Model | ZZ1147H4515F1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP4.1NQ190E61 |
| HP | 190 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(L/kw) | 4.088/140 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 680 | |
| Maximum Torque Speed(rpm) | 1300-1900 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 255/70R22.5 | |
| Upper Body Configuration | Platform Working Height(m) | 28 |
| Maximum Operating Height(m) | 5 | |
| Maximum Operating Range(m) | 16 | |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic | |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers Span:4200mm horzontal,4000mm vertical | |
| Bucket(kg) | 200 (optional insulation buket) | |
| Slewing Device | Two-way 360° continuous slewing | |
| 360° slewing bucket | ||

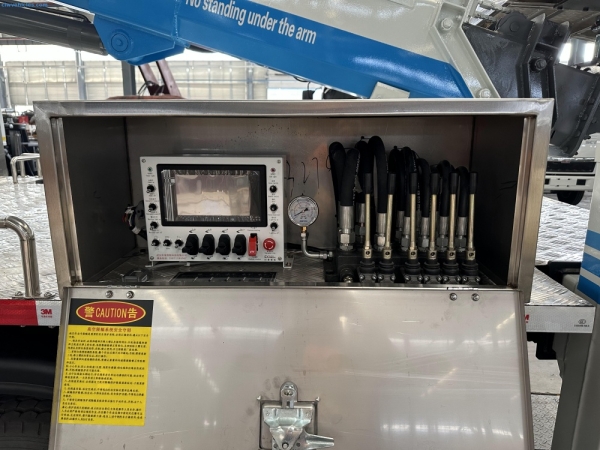

| Operating System | Up and down operation both on ground and in bucket | |
| Wireless remote control+platform operatio+manual 3 groups of operating | ||
| Control Voltage | 12V | |
| Maximum Working Wind Speed | Class 4 wind | |
| Emergency Device | yes | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
