Main technical parameter：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 19000 | |
| Loading Weight(kg) | 6000 | |
| Overall Dimension(mm) | 12000*2550*3900 | |
| Wheelbase(mm) | 3775+1400 | |
| Axle Load(kg) | 9000/16000 | |
| Top Speed(km/h) | 85 | |
| Chassis Brand | Shacman | |
| Chassis Model | SX3165DR442 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.340E32 |
| HP | 340 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 9726/250 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1250 | |
| Maximum Torque Speed(rpm) | 1400-1600 | |
| Gearbox Brand | Fast | |
| Gearbox | 10Forward/1Reverse Gear | |
| Tyre | 12.00R20 | |
| Crane | Crane Model | MSQS300-4 |
| Max. lifting moment(kN·m) | 300 | |
| Max lifting capacity(kg) | 12000 | |
| Max hydaulic outreach(m) | 14.5 | |
| Slewing angle(°) | 360 | |
| Stabilizer spread(mm) | 2310-5700 | |
| Installation space(mm) | 130 | |
| Max operating pressure(MPa) | 26 | |
| Recommended pump capacity(L/min) | 63+40 | |
| Oil tank capacity(L) | 270 | |
| Dead weight(kg) | 4300 | |

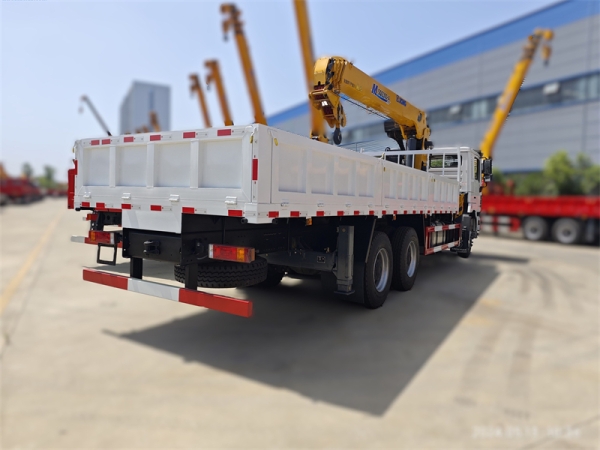

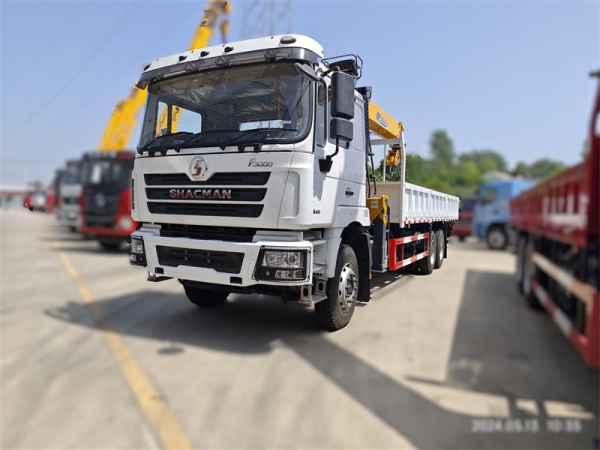

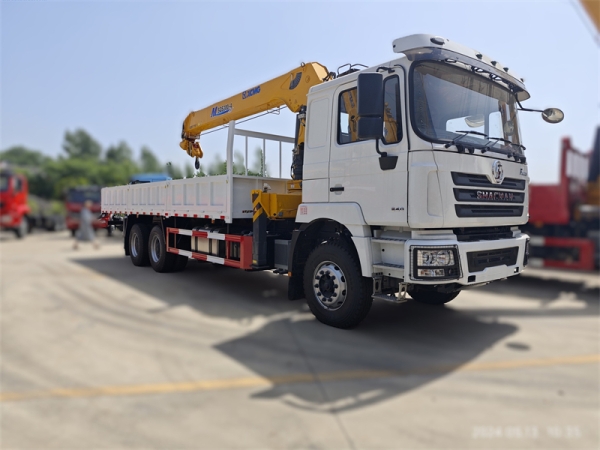

The chassis of this Shacman truck-mounted crane is derived from the Shacman F3000 series and is powered by a Weichai WP10.340E32 engine. The overall dimensions of the vehicle are considerable, with a length, width and height of 12,000 mm, 2,550 mm and 3,900 mm respectively.

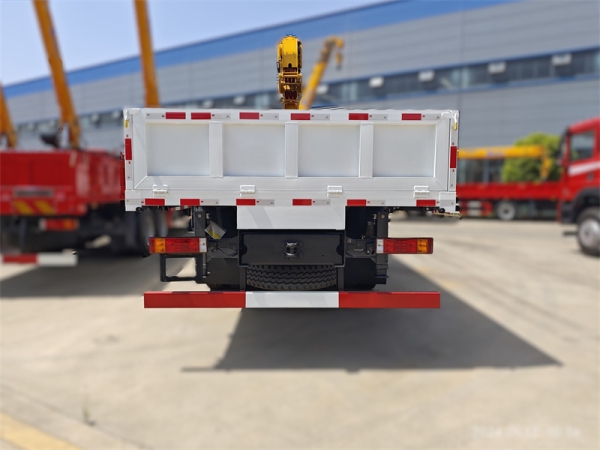

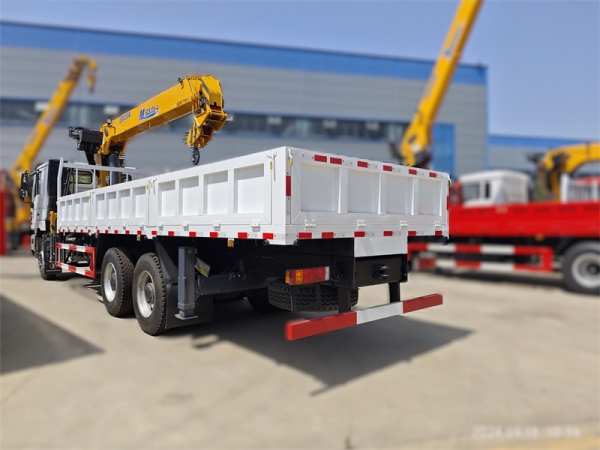

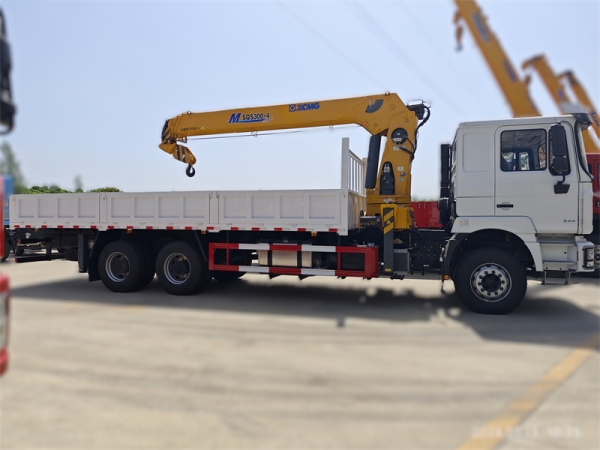

For the upper part, the size of the cargo box is 8,300×2,450×550 mm. The key crane is of XCMG brand, with the model MSQS300-4, which is a design of 12 tons and 4 boom sections.
The maximum working range of this crane is 12.5 meters, the maximum lifting height is 16.3 meters, and the maximum lifting capacity is 12 tons. In the fully extended boom state, the maximum lifting weight is 1.8 tons.
The slewing speed is 2 to 3 revolutions per minute, and the lifting speed is 115 meters per minute.
Whether it is lifting heavy objects at the construction site or handling large equipment in the industrial field, this Shacman truck-mounted crane has excellent operating capabilities and can efficiently complete various lifting tasks.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
