Product Description：

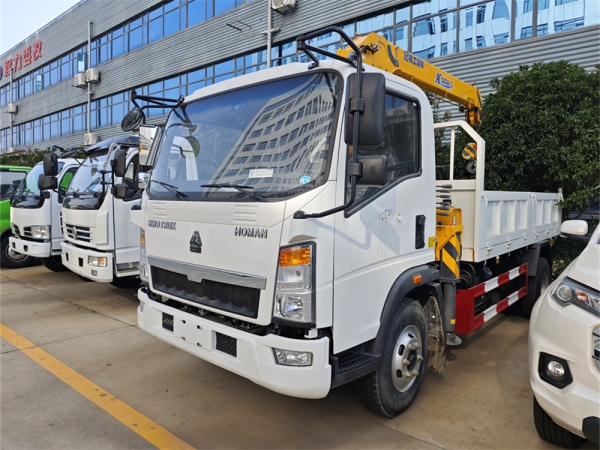

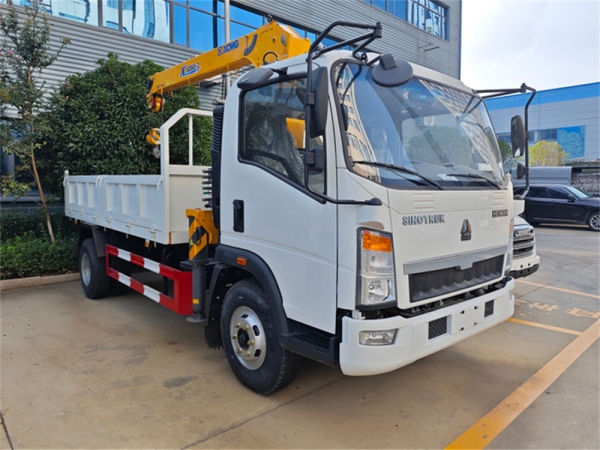

This SINOTRUK 4x2 XCMG 3.2-Ton Telescopic Boom Truck Mounted Crane is equipped with the 4*2 chassis of Haoman H3. The 8.25R20 16PR tires can adapt to various road conditions and provide stable support for vehicle driving. The overall vehicle size is 7120x2420x3500mm, which is relatively flexible when driving on the road.
Its power is provided by the WP6.180E32 engine, with 180 horsepower and a power of 132kW. It has strong power and can meet the needs of various working scenarios.

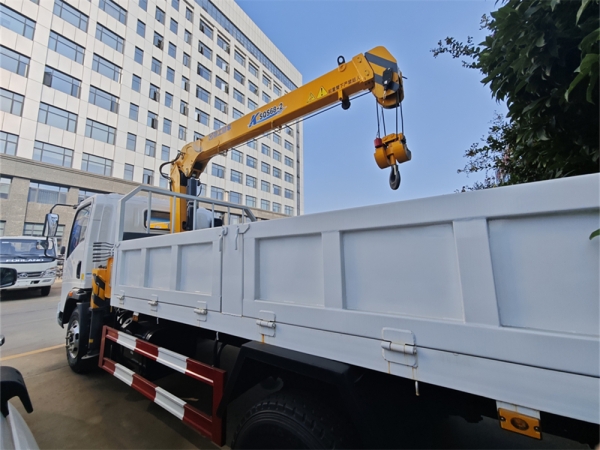

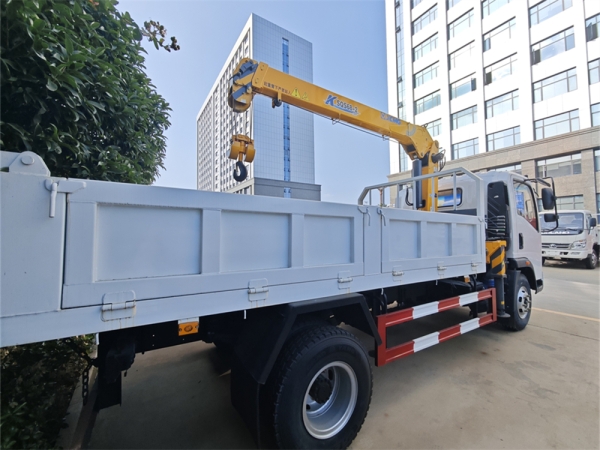

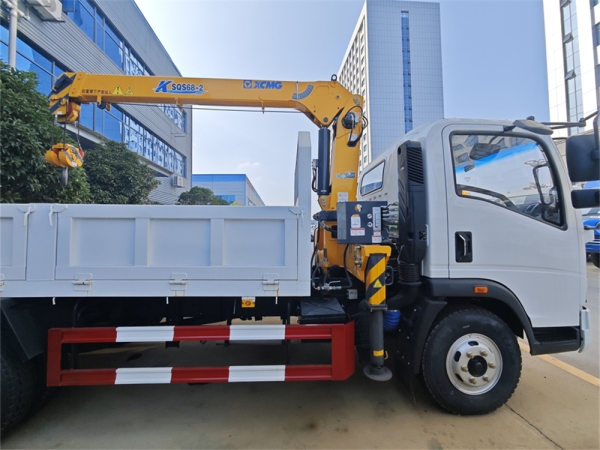

The upper part includes a cargo box and a truck-mounted crane. The cargo box size is 4200x2200x550mm and can load a certain amount of goods. The crane adopts XCMG crane with the model ksqs68-2, and the maximum lifting weight is 3.2 tons. At the same time, users can also choose cranes of other brands according to actual needs. There are cranes of different weight specifications such as 3.2 tons, 5 tons, and 6.3 tons for selection to meet different lifting task requirements. Whether it is lifting construction materials on construction sites or transporting goods in logistics yards, this Sinotruk truck-mounted crane can play an important role.
Main Technical Parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 14060 | |
| Curb Weight(kg) | 4515 | |
| Loading Weight(kg) | 9350 | |
| Overall Dimension(mm) | 7120*2420*3500 | |
| Wheelbase(mm) | 3800 | |
| Axle Load(kg) | 4860/9200 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | SINOTRUK | |
| Chassis Model | ZZ1148G17FB0 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP6.180E32 |
| HP | 180 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 6750/132 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2300 | |
| Maximum Torque Speed(rpm) | 1400-1600 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 8.25R20 16PR | |

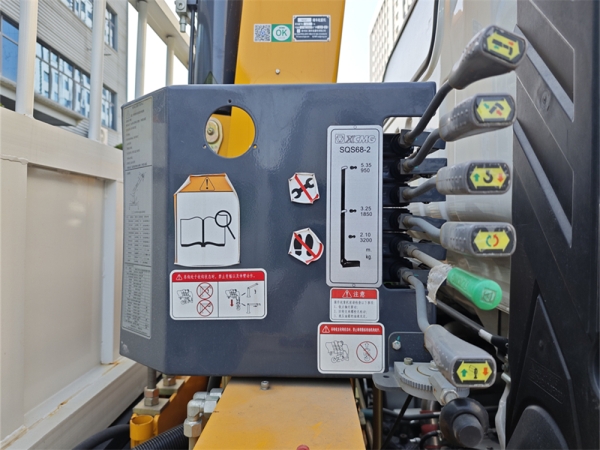

| Crane | Crane Model | KSQS68-2 |
| Max. lifting moment(kN·m) | 67.2 | |
| Max lifting capacity(kg) | 3200 | |
| Recommend Power(kw) | 14 | |
| Max oil flow of hydraulic system(L/min) | 25 | |
| Max pressure of hydraulic system(Mpa) | 20 | |
| Oil tank capacity(L) | 30 | |
| Installation space(mm) | 850 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
