Product Description:
1. Installation of speed limiting device: A speed limiting device is installed, and its speed limit is 89 kilometers per hour.
2. Description of optional configurations: The vehicle can be optionally equipped with a chassis with a wheelbase of 4350+1350 mm, and the tire specification is 315/80R22.5.
3. Details of side and rear protection:
- Side protection: The material is Q235 steel plate, which is connected to the crossbeam of the carriage by bolts.
- Rear protection: The material is SAPH440 steel plate with a thickness of 4.0 mm. The connection method is that the rear protection bracket is connected to the rear end of the longitudinal beam of the vehicle frame by bolts. The cross-sectional dimension of the rear protection is 190×50 mm, and the ground clearance is 495 mm.
4. Parameters of the crane:

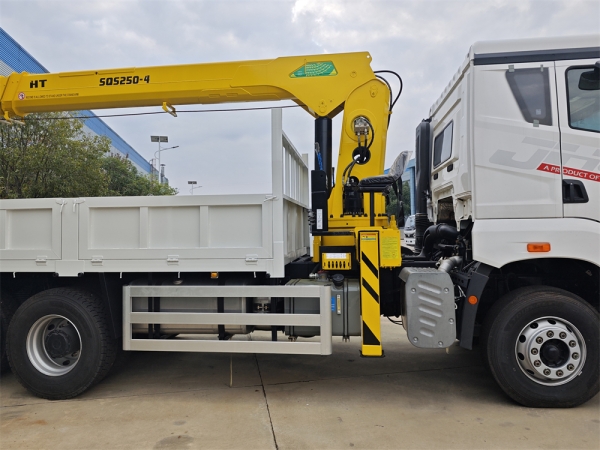

- Model: GSQS250 - 4.
- Mass: 3550 kg.
- Maximum lifting load: 10000 kg.
- Other brands and other tonnage truck-mounted cranes can be optionally installed.

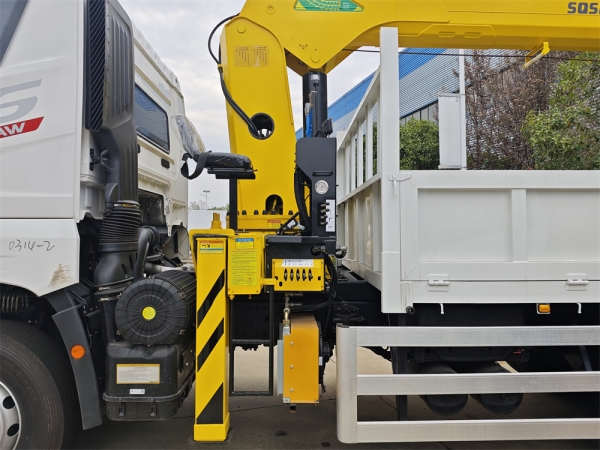

5. Introduction to special functions and devices: The truck-mounted crane is mainly composed of horizontal outriggers, vertical outriggers, a slewing base and a boom, and its main purpose is to lift various items.
Main Technology Parameters:
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU 8x4 13ton Crane Truck |
| Driving Type | 8x4 |
| Color | white or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 32000 |
| Curb Weight(kg) | 12500 |
| Dimensions | |
| Wheelbase(mm) | 1850+4575+1370 |
| Front/Rear Overhang(mm) | 1370/2590 |
| Approach/Departure Angle | 14/15 |
| Overall Dimension(mm) | 11000x2550x3600 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 6WG1-TCG61 |
| Engine Type | Common rail system;EGR+DOC+DPF+SC |
| Rated Torque(Nm) | 2060 |
| Max.Output(kw) | 338(460hp) |
| Drive Line | |
| Transmission | 12 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle(kg) | 7000/13000/13000 |
| Tire Specification | |
| Tire Specification | 315/80R22.5; 12+1spare tire |
| Front Wheel Track(mm) | 2065 |
| Rear Wheel Track(mm) | 1855/1855 |
| Upper Body Configuration | |
| Crane Model | GSQS300-5 |
| Max Lifting Capacity(kg) | 13000 |
| Max Hydaulic Outreach(m) | 18.75 |
| Slewing Angle(°) | 360 |
| Stabilizer Spread(mm) | 2474-7582 |
| Installation Space(mm) | 1300 |
| Max Operating Pressure(MPa) | 26 |
| Recommended Pump Capacity(L/min) | 63+40 |
| Oil Tank Capacity(L) | 270 |
| Dead Weight(kg) | 4528 |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
