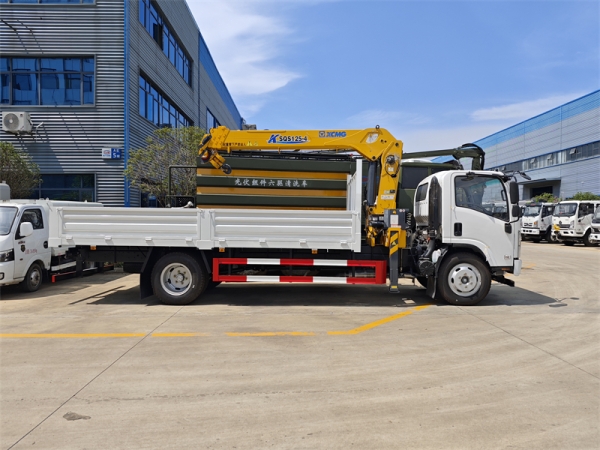

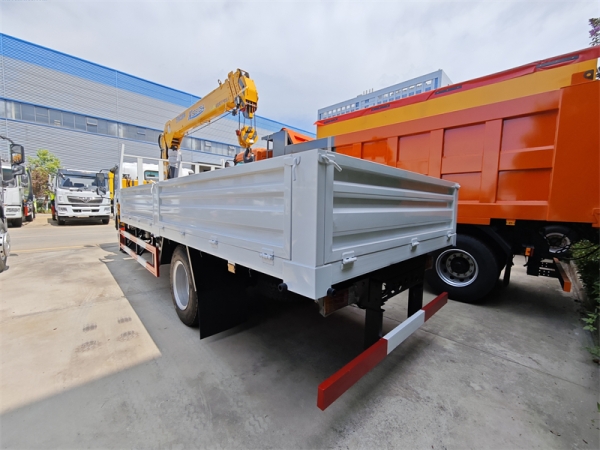

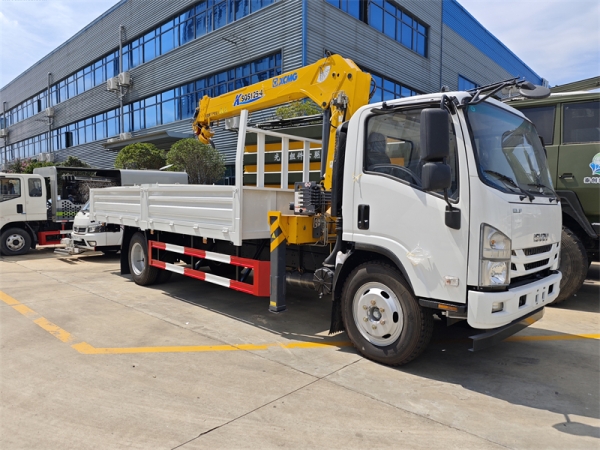

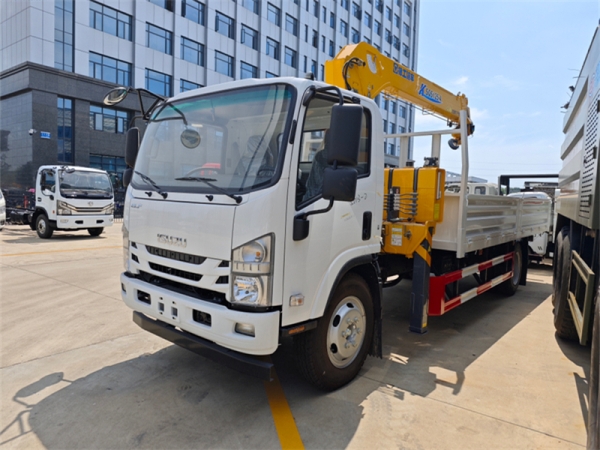

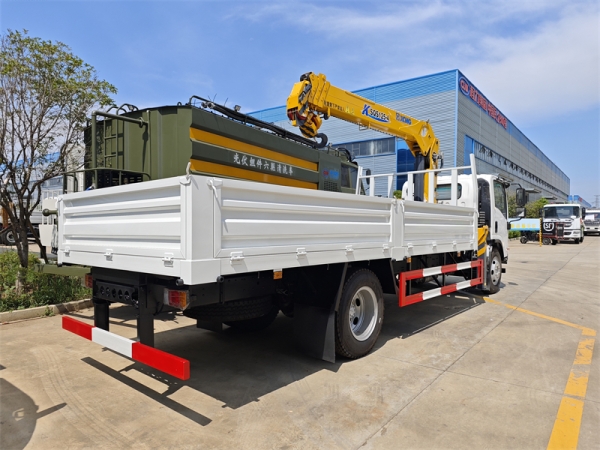

This Isuzu XCMG 5Ton Telescopic Boom Truck Mounted Crane is based on the Isuzu 4x2 chassis and is equipped with 7.25r16lt 14pr tires. The overall vehicle size is 7030×2400×3200mm, and the wheelbase is 3815mm. Its power is provided by the 4hk1-tc51 engine, with a horsepower of 190 and a displacement of 5.913L.

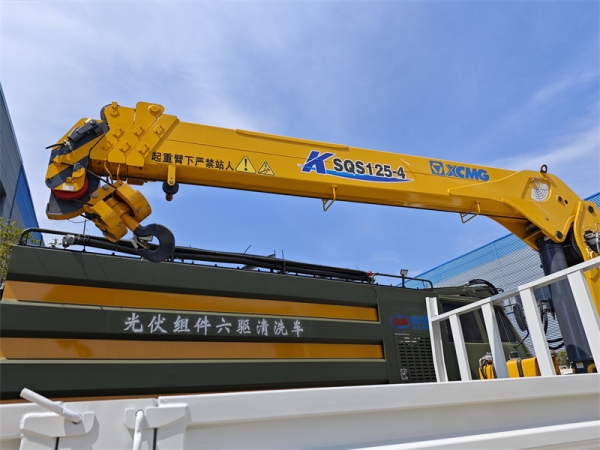

The upper-mounted part mainly includes a cargo box and a crane boom. The size of the cargo box is 4100×2300×550mm, which can provide a certain loading space. The installed crane boom model is ksqs125-4 and has powerful performance. The maximum lifting weight is 5000kg, which can meet the lifting needs of heavier cargo. The maximum lifting height reaches 12.5 meters and can handle operations at higher positions. The rotation angle is 360 degrees, which is flexible in operation and can perform lifting operations in all directions. The installation space is 900mm. The reasonable installation layout ensures the stability of the crane boom's operation. The protective material is Q235b carbon steel, which is connected by welding, strong and durable, and can provide reliable protection for the vehicle during operation.
Main Technical Parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 8280 | |
| Curb Weight(kg) | 4990 | |
| Loading Weight(kg) | 3095 | |
| Overall Dimension(mm) | 7030*2400*3200 | |
| Wheelbase(mm) | 3815 | |
| Axle Load(kg) | 3000/5280 | |
| Top Speed(km/h) | 105 | |
| Chassis Brand | QL | |
| Chassis Model | QL1080BUKAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1-TC51 |
| HP | 190 | |
| Emission Standard | Eu 5 | |
| Displacement/Output(ml/kw) | 5193/141 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 510 | |
| Maximum Torque Speed(rpm) | 1600 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 7.50R16LT 14PR | |
| Crane | Crane Model | KSQS125-4 |
| Max. lifting moment(kN·m) | 125 | |
| Max lifting capacity(kg) | 5000 | |
| Max hydaulic outreach(m) | 11.2 | |
| Slewing angle(°) | 360 | |
| Max operating pressure(MPa) | 22 | |
| Recommended pump capacity(L/min) | 40 | |
| Oil tank capacity(L) | 90 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
