Main Technical Parameters：

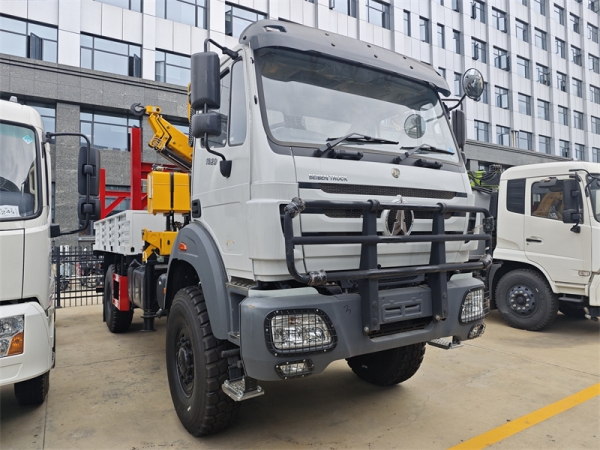

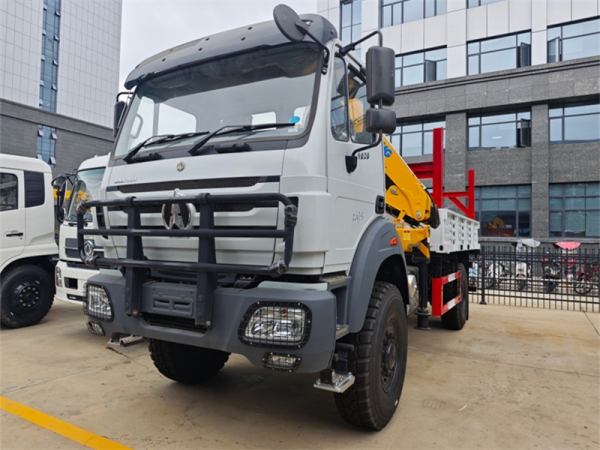

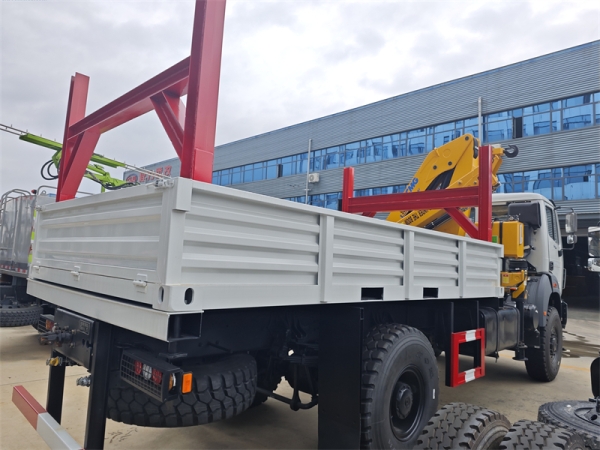

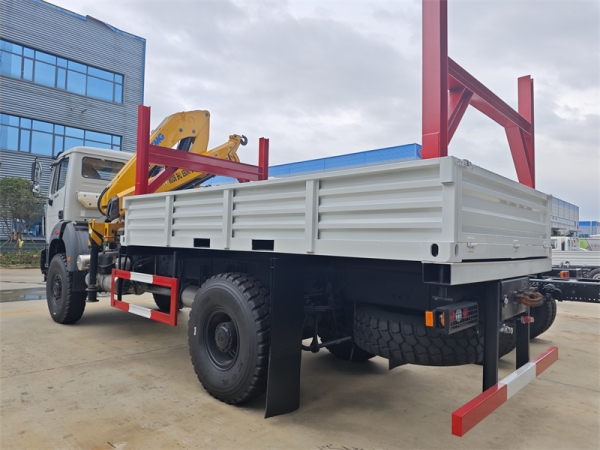

| Beiben crane truck（4x2,240hp）XCMG Sq6.3zk2q 6.3 Ton Knuckle Boom crane mounted on beiben cargo truck | ||
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 8815 | |
| Loading Weight(kg) | 8955 | |
| Overall Dimension(mm) | 9530*2550*3620 | |
| Wheelbase(mm) | 5100 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 80 | |
| Chassis Brand | Beiben | |
| Chassis Model | ND1180AD6J6Z02 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | YC6A240-33 |
| HP | 240 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 7255/177 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2300 | |
| Maximum Torque(N·m) | 900 | |
| Maximum Torque Speed(rpm) | 1400-1600 | |
| Gearbox | 8Forward/2Reverse Gear | |
| Tyre | 295/80R22.5 18PR | |

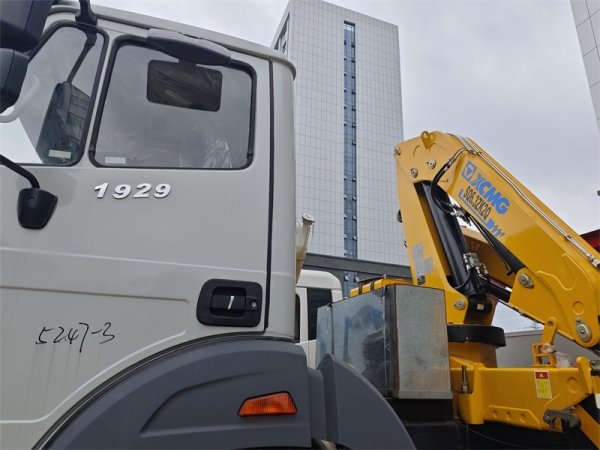

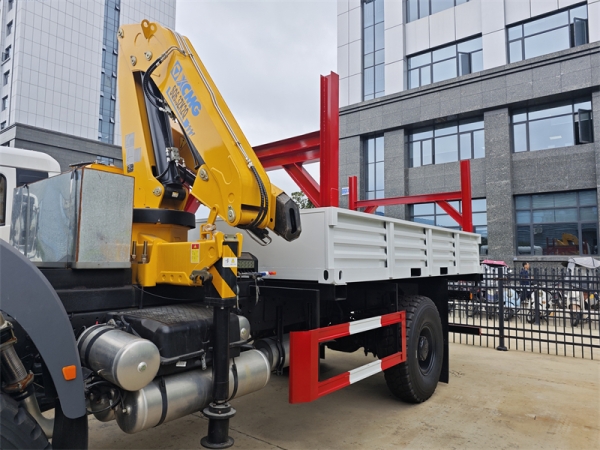

| Crane | Crane Model | Q6.3ZK2Q |
| Max. lifting moment(T.m) | 13.2 | |
| Max lifting capacity(kg) | 6300 | |
| Max hydaulic outreach(m) | 8.01 | |
| Slewing angle(°) | 360 | |
| Rotational moment(T.m) | 0.96 | |
| Outrigger span(mm) | 5210 | |
| Installation space(mm) | 1050 | |
| Transport width(mm) | 2480 | |
| Max operating pressure(MPa) | 28 | |
| Recommended pump capacity(L/min) | 25 | |
Precautions during operation:
1. Operate slowly.
- When operating the folding boom crane Q6.3ZK2Q, operate slowly and smoothly to avoid sudden acceleration or deceleration. Especially when lifting and lowering the suspended object, control the speed well to prevent the object from swaying or falling.
- When operating the extension, contraction and rotation of the boom, also proceed slowly to avoid the boom swaying or colliding with surrounding objects due to too fast movements.
2. Maintain good visibility.
- The operator should always maintain good visibility and be able to clearly see the suspended object and the working condition of the crane. If the line of sight is blocked, stop the operation, adjust the position or take other measures to ensure safe operation.
- During the operation, pay attention to observing the surrounding environment to avoid collisions with other objects or people.
3. Pay attention to safety distance.
- When operating the folding boom crane Q6.3ZK2Q, maintain a safe distance from the suspended object, surrounding buildings and people. Generally speaking, the safety distance should be not less than 1.5 times the height of the suspended object.
- Avoid staying or walking under the boom and the suspended object to prevent accidents. If it is necessary to work under the boom, reliable protective measures such as setting up guardrails or warning signs should be taken.
4. Avoid overloading and uneven loading.
- Strictly abide by the rated lifting weight and working range of the folding boom crane Q6.3ZK2Q, and do not overload or have uneven loading. If it is found that the suspended object is overweight or unbalanced, immediately stop lifting and take corresponding measures for adjustment.
- During the lifting process, always pay attention to the load condition of the crane. If any abnormality is found, immediately stop the operation and conduct inspection and treatment.
5. Pay attention to weather conditions.
- In bad weather conditions such as strong wind, heavy rain and thick fog, stop operating the folding boom crane Q6.3ZK2Q. Strong wind may cause the crane to sway and increase the accident risk; heavy rain and thick fog will affect visibility and reduce operational safety.
- If operating outdoors, pay attention to the weather forecast and take preventive measures in advance. After wind and rain, inspect the crane to ensure that its performance and safety devices are normal.
6. Regular inspection and maintenance.
- Regularly inspect and maintain the folding boom crane Q6.3ZK2Q to ensure that its performance and safety devices are always in good condition. The inspection contents include the wear, damage and looseness of various parts such as the boom, wire rope, hydraulic system and safety device.
- Conduct maintenance according to the specified time and mileage, and replace wearing parts such as lubricating oil and filter elements. If any problem is found, repair or replace it in time and do not operate with faults.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
