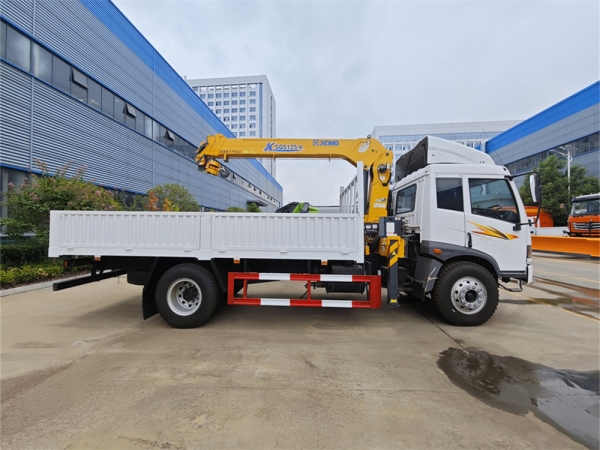

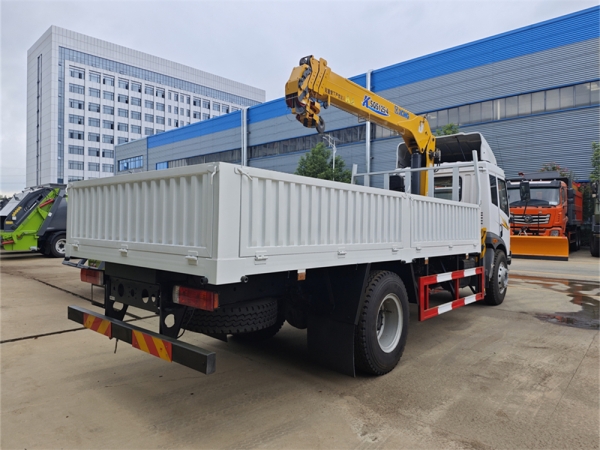

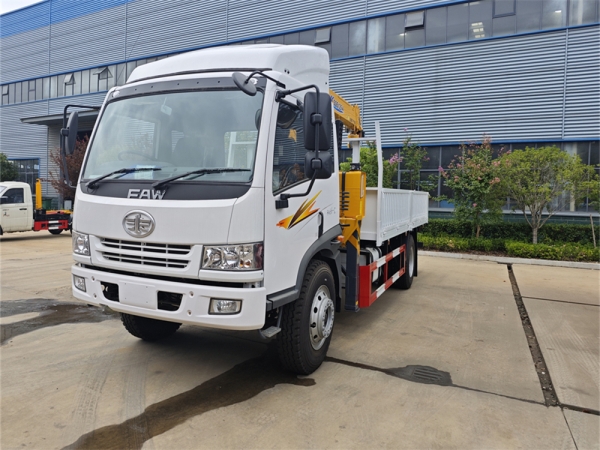

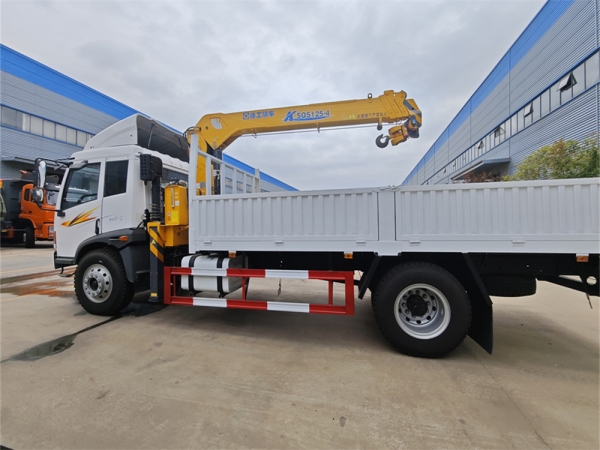

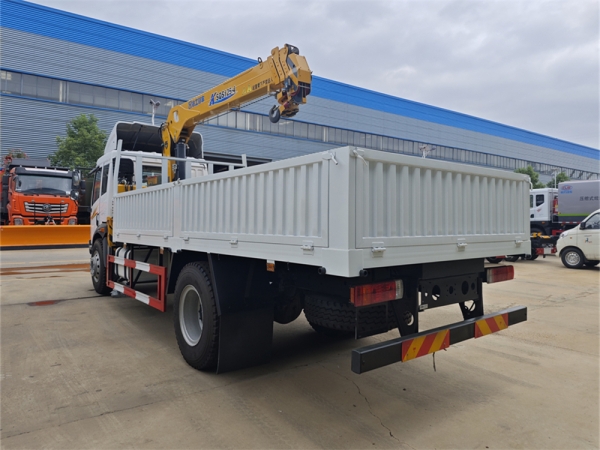

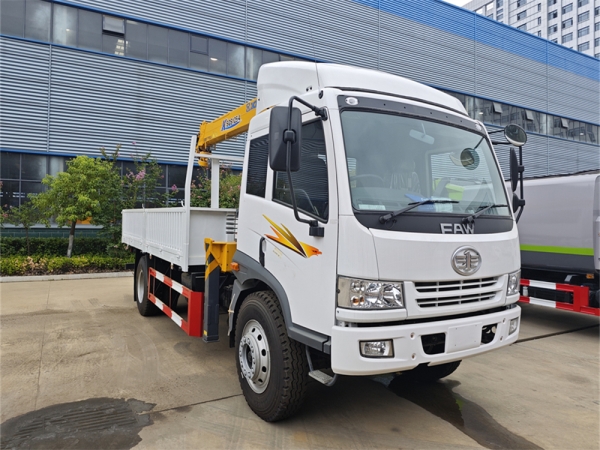

This FAW XCMG 5Ton Telescopic Boom Truck Mounted Crane is based on the FAW 4x2 chassis and is equipped with 825-20R tires. The overall vehicle size is 7550*2490*3350mm, and the wheelbase is 3900mm. Its power is provided by the B190 33 engine, with a horsepower of 190 and a displacement of 5.9L.
The upper-mounted part mainly includes a cargo box and a crane boom. The size of the cargo box is 4500×2200×600mm, which can provide a certain loading space. The installed crane boom model is ksqs125-4 and has powerful performance. The maximum lifting weight is 5000kg, which can meet the lifting needs of heavier cargo. The maximum lifting height reaches 12.5 meters and can handle operations at higher positions. The rotation angle is 360 degrees, which is flexible in operation and can perform lifting operations in all directions. The installation space is 900mm. The reasonable installation layout ensures the stability of the crane boom's operation. The protective material is Q235b carbon steel, which is connected by welding, strong and durable, and can provide reliable protection for the vehicle during operation.
Main Technical Parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 8200 | |
| Curb Weight(kg) | 3050 | |
| Loading Weight(kg) | 5175 | |
| Overall Dimension(mm) | 7550*2490*3350 | |
| Wheelbase(mm) | 3900 | |
| Axle Load(kg) | 3000/5280 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | FAW | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B190 33 |
| HP | 190 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 5900/140 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 640 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 825-20R | |
| Crane | Crane Model | KSQS125-4 |
| Max. lifting moment(kN·m) | 125 | |
| Max lifting capacity(kg) | 5000 | |
| Max hydaulic outreach(m) | 11.2 | |
| Slewing angle(°) | 360 | |
| Max operating pressure(MPa) | 22 | |
| Recommended pump capacity(L/min) | 40 | |
| Oil tank capacity(L) | 90 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
