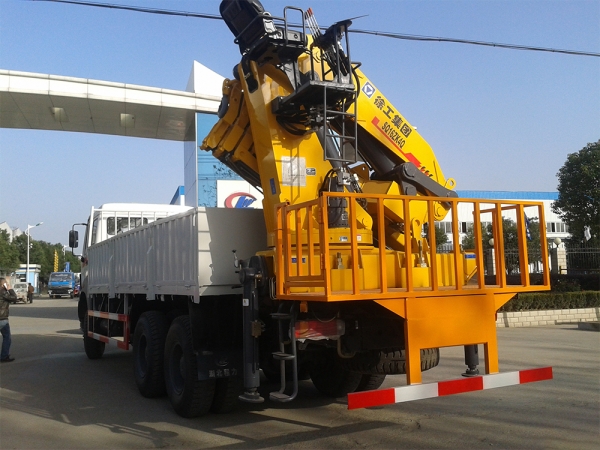

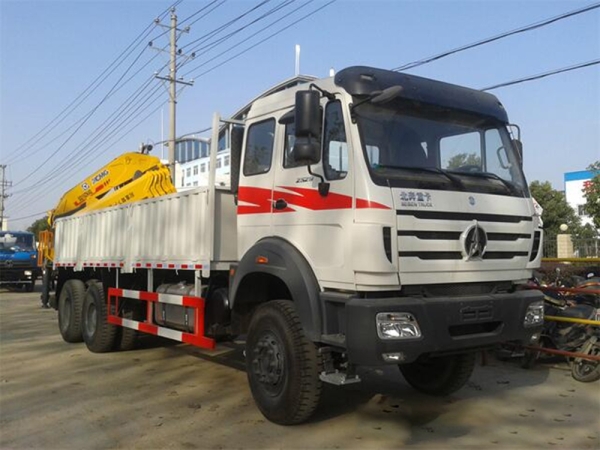

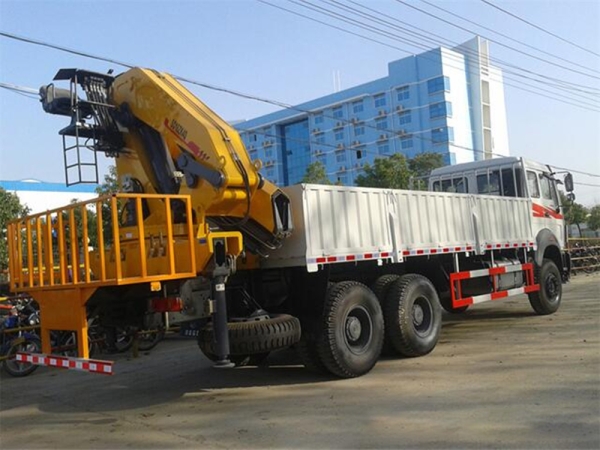

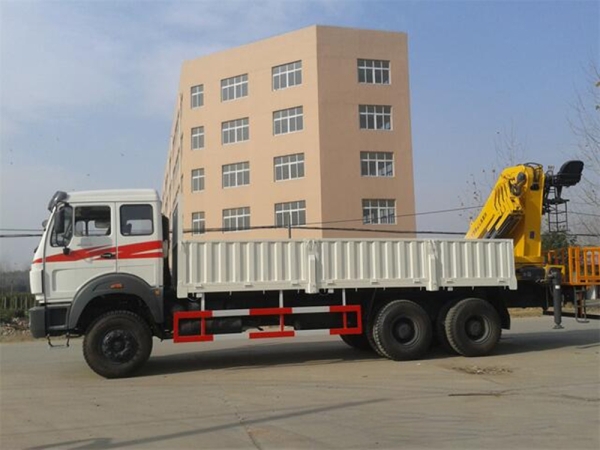

Beiben crane truck（6x4,320hp）XCMG Sq16zk4q 16 Ton Knuckle Boom crane mounted on beiben cargo truck | ||
Emission Standard | EUR 2 | |
Model Name | DTA5250GSS | |
Chassis model | ND5250GGSA50JQ | |
Driving Type | 6×6 or 6x4 | |
Dimensions | ||
Wheelbase(mm) | 5050+1450 | |
Overall Dimension(mm) | 11440x2500x3328 | |
cargo box size(mm) | 7600x2250x1400 | |
Weights | ||
GVW(kg) | 25000 | |
Rated payload weight(kg) | 13520 | |
Curb weight(kg) | 11010 | |
In the quality of the utilization factor | 1.27 | |
Front axle (Mercedes Benz technology) | 7 Ton front axle load capacity, Double shoe disc air break system | |
Rear/middle axle (Mercedes Benz technology) | 13Ton/axle (2 axle combined) Dual-circuit air braking system，driving axle, ductalloy axle cover, with wheel side reducer | |
Front axle span(mm) | 1,940 | |
Rear axle span(mm) | 1847/1847 | |
Front/rear overhang(mm) | 1410/2530 | |
Approach angle(°) | 34 | |
Departure angle(°) | 24 | |
Max speed(km/h) | 80 | |
Engine | ||
Engine model | WD615.44 from Weichai power Co.,Ltd | |
Engine type | 4 stroke water-cooled, overhead camshaft, direct injection, turbo-charge, Intercooling engine | |
No. of cylinders | straight-6 cylinders | |
Displacement(L) | 9.726L | |
Max. output (kw/Ps/rpm) | 235kw(320ps)/2200 rpm | |
Max torque/Speed(N.m/rpm) | 1250 N.m/1400-1600rpm | |
Drive Line | ||
Clutch description | ¢420,dry single plate, hydraulic control booster,mechnical operation with hydraulic assistance | |
Transmission | Transmission model: 5S-111JP 8 forwarder,1 reverse gear,manual operation | |
Braking system | Service brake | Brake gap can be adjusted automatically double circulation air brake system |
Assistant brake | WEVB(Engine exhaust brake) | |
Park brake | Spring brake effect to middle and rear tires | |
Suspension system | ||
Front axle | Semi-elliptic leaf springs shock absorbers | |
Rear axle | Torsion bar semi-elliptic leaf springs | |
Electrical Equipment | ||
Voltage | 24V | |
Batteries | 2X12V/135Ah | |
Starter | 6.2Kw/24V | |
Crane specification
Item | Unit | Parameter |
Max Lifting Capacity | kg | 16000 |
Max Lifting Moment | t.m | 40 |
Recommend Power | kw | 37 |
Max Oil Flow of Hydraulic System | L/min | 63 |
Max Pressure of Hydraulic System | Mpa | 31.5 |
Oil Tank Capacity | L | 250 |
Crane Weight | kg | 5000 |
Installation Space | mm | 1500 |
Rotation Angle | ° | 360°All Rotaion |
Operation notice
1. Working radius on the chart has taken loading deflection into account. So we can calculate the allowed loading weight by this actual working radius.
2. When the length of boom is between two data’s shown in the table, you should take the loading weight data of bigger working radius as a standard value.
3. When crane boom extends longer than 6.5m, the legs should fully stretch out.
4. When crane boom is operated at the front of the supporting leg, the loading weight value on the table decreases to 25% or less.
5. The table on the right does not consider the influence of boom deflection.
6. The maximum total loading weight on the table takes that leg standing on solid level ground as a level ground condition and includes the weight of hook and pulley (40kg).
7. When the ground clearance of the heavy goods is over 300mm, please don’t stretch the arm down or out. But can stretch the cable of the crane.
Attention: This data of the rated lifting load is based on the good stability of crane. When the stability of the crane is insufficient, please reduce the lifting weight properly.
