Main Technology Parameter | |

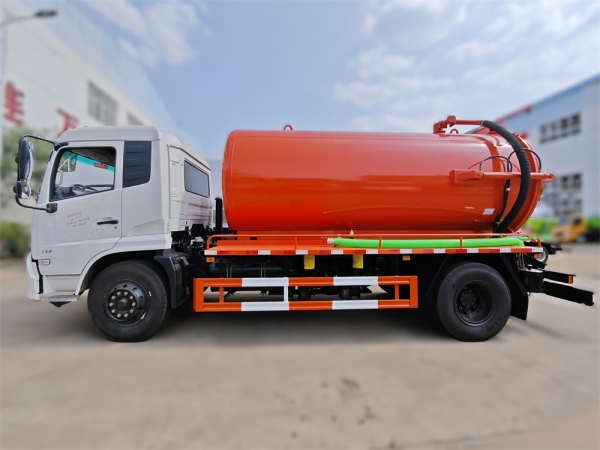

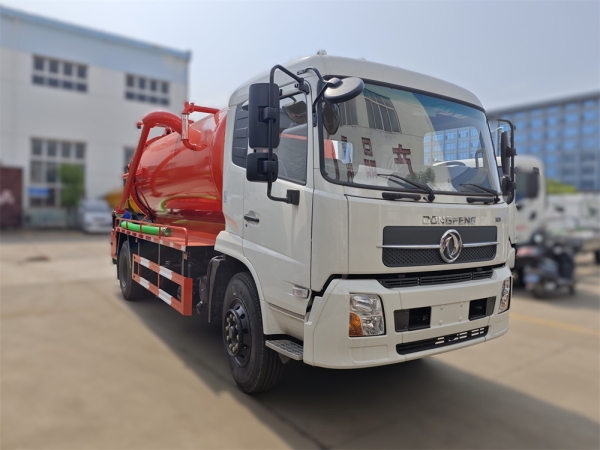

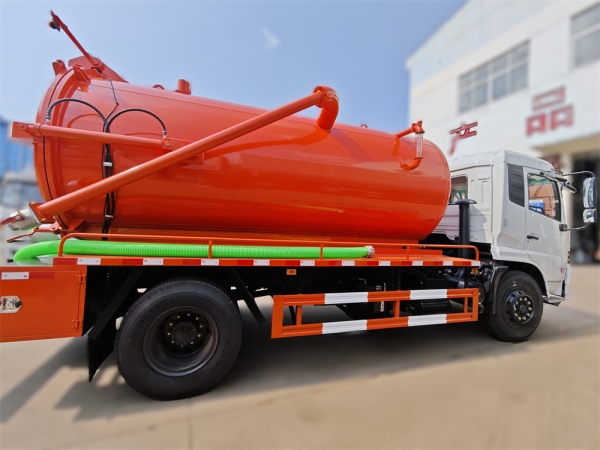

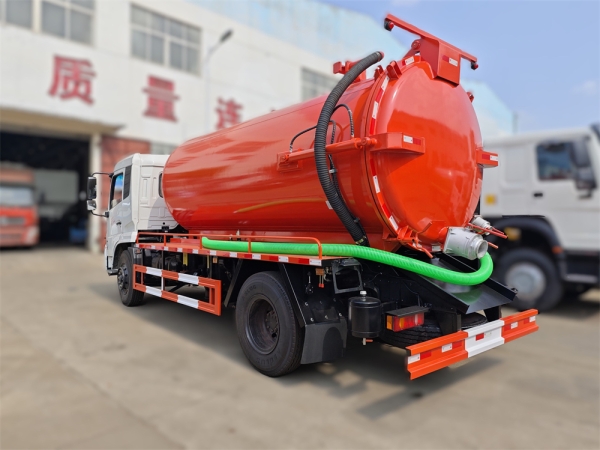

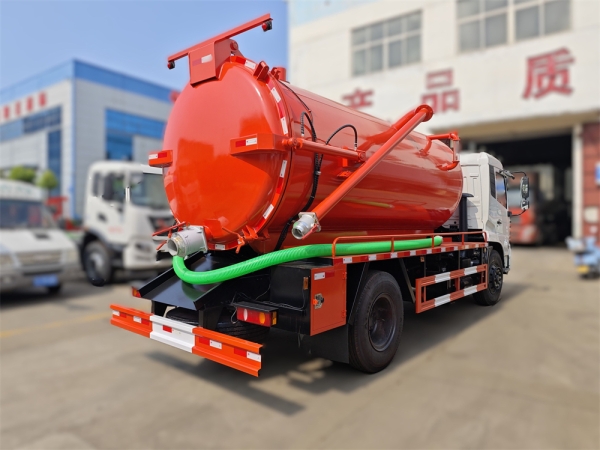

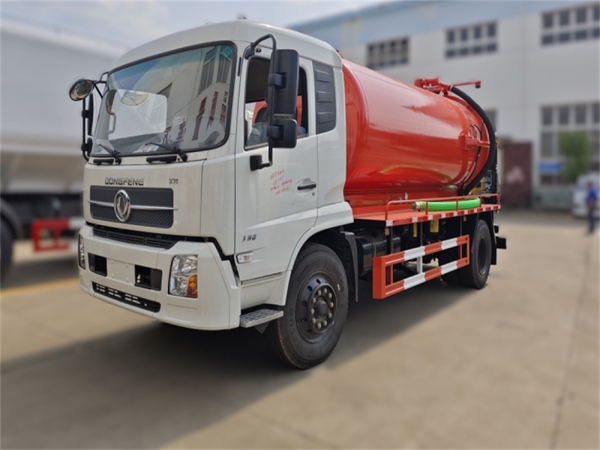

Model Name | CLW(DongFeng) sewage suction truck |
Driving Type | 4x2 |
Cabin | DongFeng KR |
Color | White |
Weights | |
Rated payload weight(kg) | 12000 |
Curb weight(kg) | 8250 |
GVW(kg) | 20250 |
Dimensions | |
Wheelbase(mm) | 4500 |
Overall Dimension(mm) | 7780*2500*3400 |
Max speed(km/h) | 90 |
Engine | |
Engine model | ISD180 50 |
Engine type | Four-stroke,Electronically controlled common rail direct injection,Pressurized intercooler |
No. of cylinders | straight-4 cylinders, diesel |
Displacement(L) | 4.5L |
Max. output (kw) | 132kw (180HP) |
Drive Line | |
Transmission | FAST: 8JS85E；8 forwards,2 reverse gear, manual operation |
Steering | Power steering |
Brake | Oil brake with vacuum pump |
Axle | |
Front axle | 5 tons (MAN technology) |
Rear axle | 10 tons (MAN technology) |
Tire specification | |
Tire specification | 10.00R20 ;standard tire,6 tires+1 spare tire |
Sewage suction tank | |
Loading volume | 10m3 |
Box material | 6mm Q235B |
Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
Other key parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
