Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 20250 | |
| Curb Weight(kg) | 8250 | |
| Overall Dimension(mm) | 7780*2500*3400 | |
| Wheelbase(mm) | 4500 | |
| Axle Load(kg) | 5000/10000 | |
| Top Speed(km/h) | 110 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFH1080B80 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | ISL 380 50 |
| HP | 380 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(ml/kw) | 8900/280 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2100 | |
| Maximum Torque(N·m) | 1700 | |
| Maximum Torque Speed(rpm) | 1300-1400 | |
| Gearbox | 8Forward/2Reverse Gear | |
| Tyre | 265/70R19.5 | |
| Tank Description | Tank Material | Q235A |
| Sewage Tank Volume(m³) | 11.42 | |
| Thickness(mm) | 5 | |
| Pump | Germany brand high quality vacuum pump | |
| Standard Configuration | 60m high-pressure pipe,10 high-pressure sprayers,inspect window,8m suction pipe,otc. | |
| Performance Cofiguration | Suction time ≤5min Effective Suction Range ≥ 9m | |

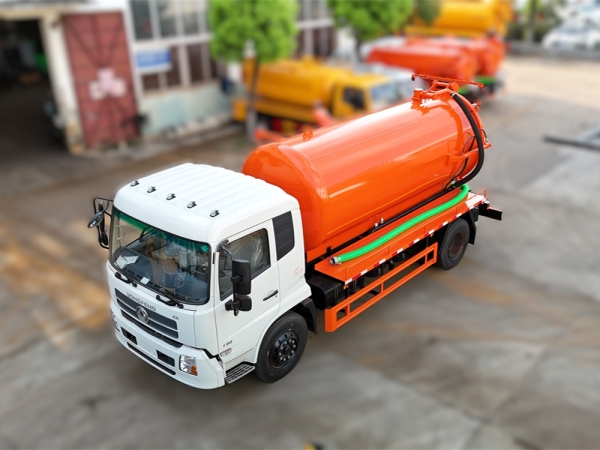

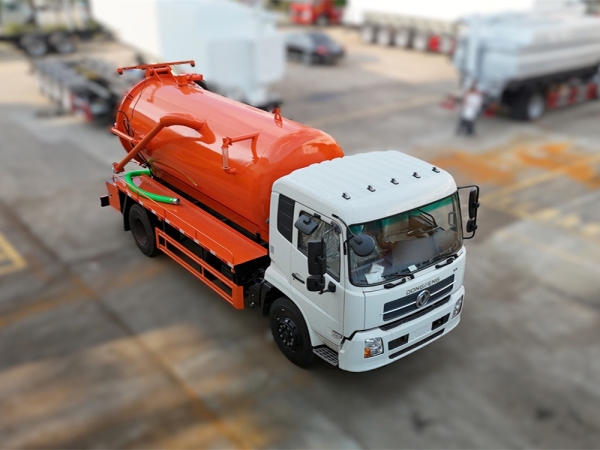

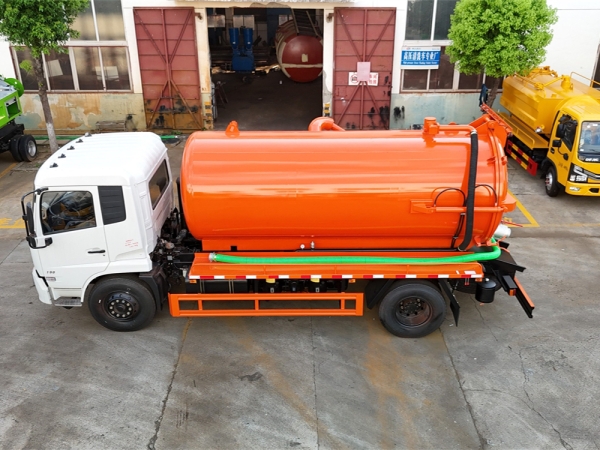

This Dongfeng KR suction sewage truck is built on the dongfeng kr 4x2 chassis and is equipped with 265/70r19.5 tires. The overall vehicle size is 7780×2500×3400mm, and the wheelbase reaches 4500mm. Its power comes from the isl380 50 engine, with a horsepower of up to 380 and a displacement of 8.9L, providing abundant power.

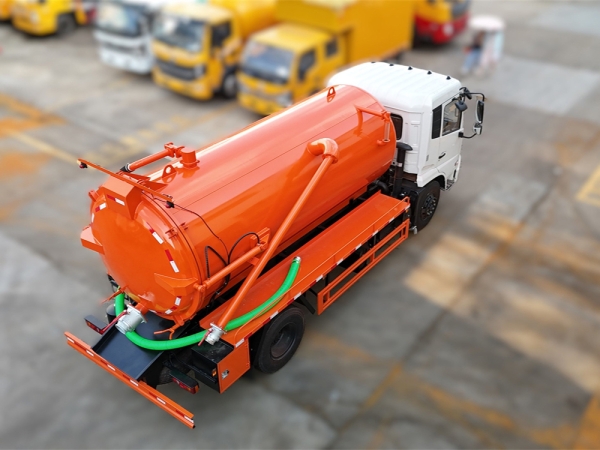

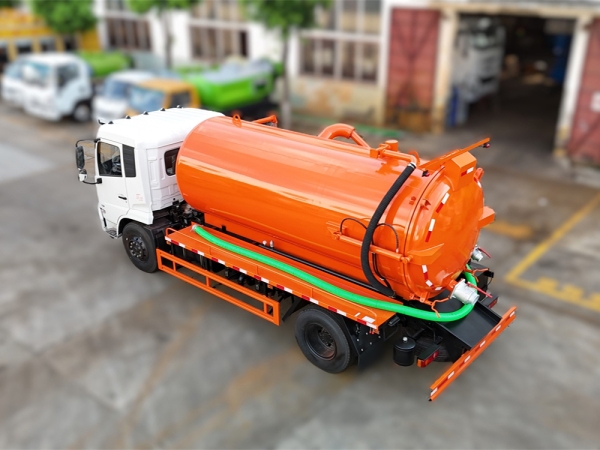

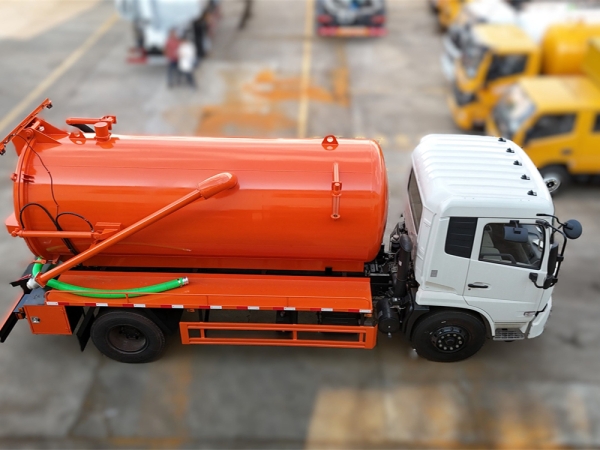

In terms of the upper-mounted part, there is a tank and professional suction sewage devices. The shape size of the sewage tank is (length×diameter) 4900×1800mm, and the tank volume reaches 11.42cbm. The protective material is Q235A carbon steel, which is connected by welding, firm and durable, and can effectively guarantee the stability and safety of the vehicle during the operation process.
Overall, this Dongfeng cleaning and suction sewage truck shows a high level in terms of chassis configuration, power performance and upper-mounted devices, and can meet the needs of various cleaning and suction sewage operations.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
