Main Technical Parameters：
| Main Technical Parameter | |
| Model Name | CLW ISUZU sewage suction truck |
| Driving Type | 6x4 |
| Cabin | ISUZU GIGA |
| Color | White |
| Weight | |
| Rated Payload Weight（kg） | 4200 |
| Curb Weight(kg) | 7600 |
| GVW(kg) | 12000 |
| Dimensions | |
| Wheelbase(mm) | 4565+1370 |
| Overall Dimension(mm) | 10150x2550x3800 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 6HK1-TCG60 |
| Engine Type | Four-stroke,Pressurized intercooler |
| No. of Cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 7.79 |
| Max.Output(KW) | 221kw(301hp) |
| Drive Line | |
| Transmission | 12TX2421TD;12 forwards,4 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front Axle | 7 tons(MAN technology) |
| Rear Axle | 18 tons(MAN Technology) |
| Tire Specification | |
| Tire Specification | 11.00R20 18PR;Standard tire;10 tires+1 spare tire |
| Sewage Suction Tank | |
| Sewage Tank Volume | 9.31m³ |
| Water Tank Volume | 7.45m³ |
| Tank material | 5mm thickness,Q235A |
| Water Tank Material | 5mm thickness,Q235A |

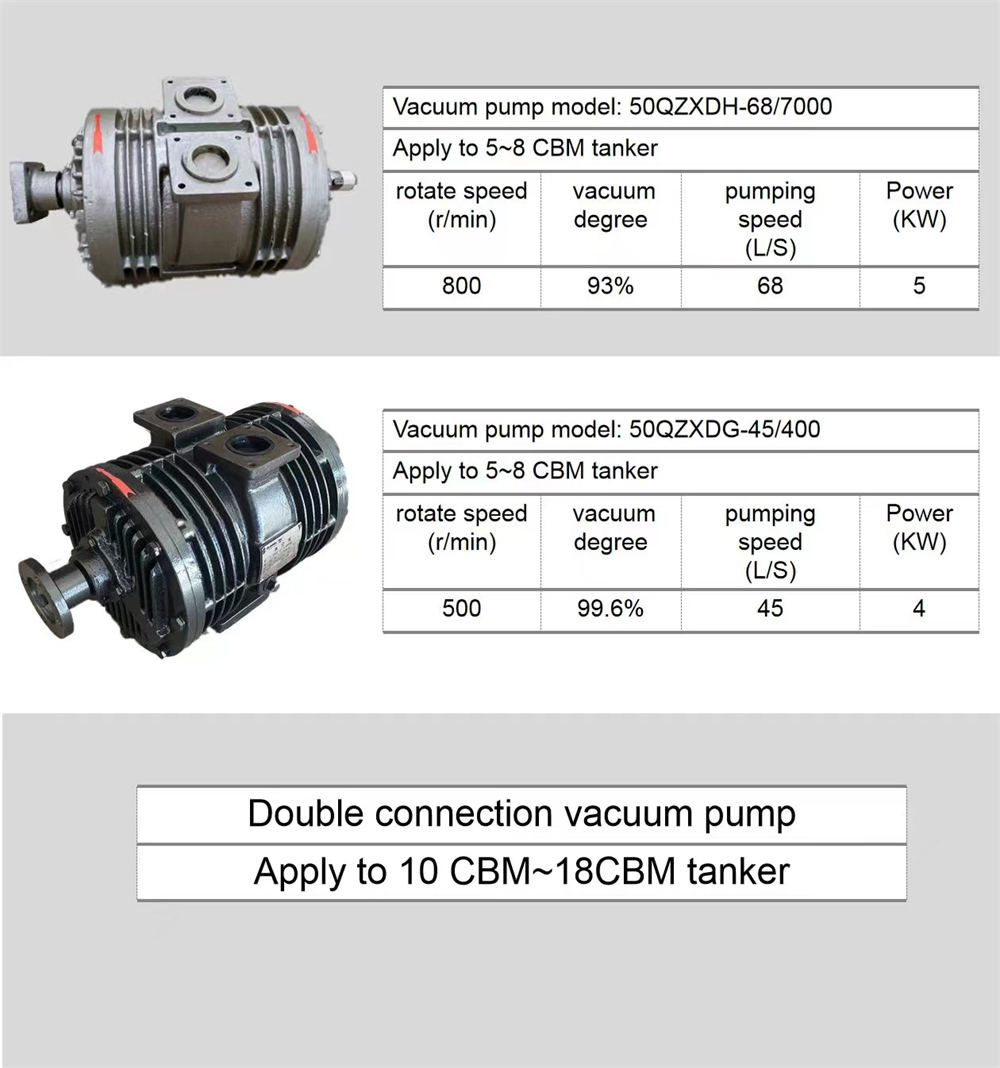

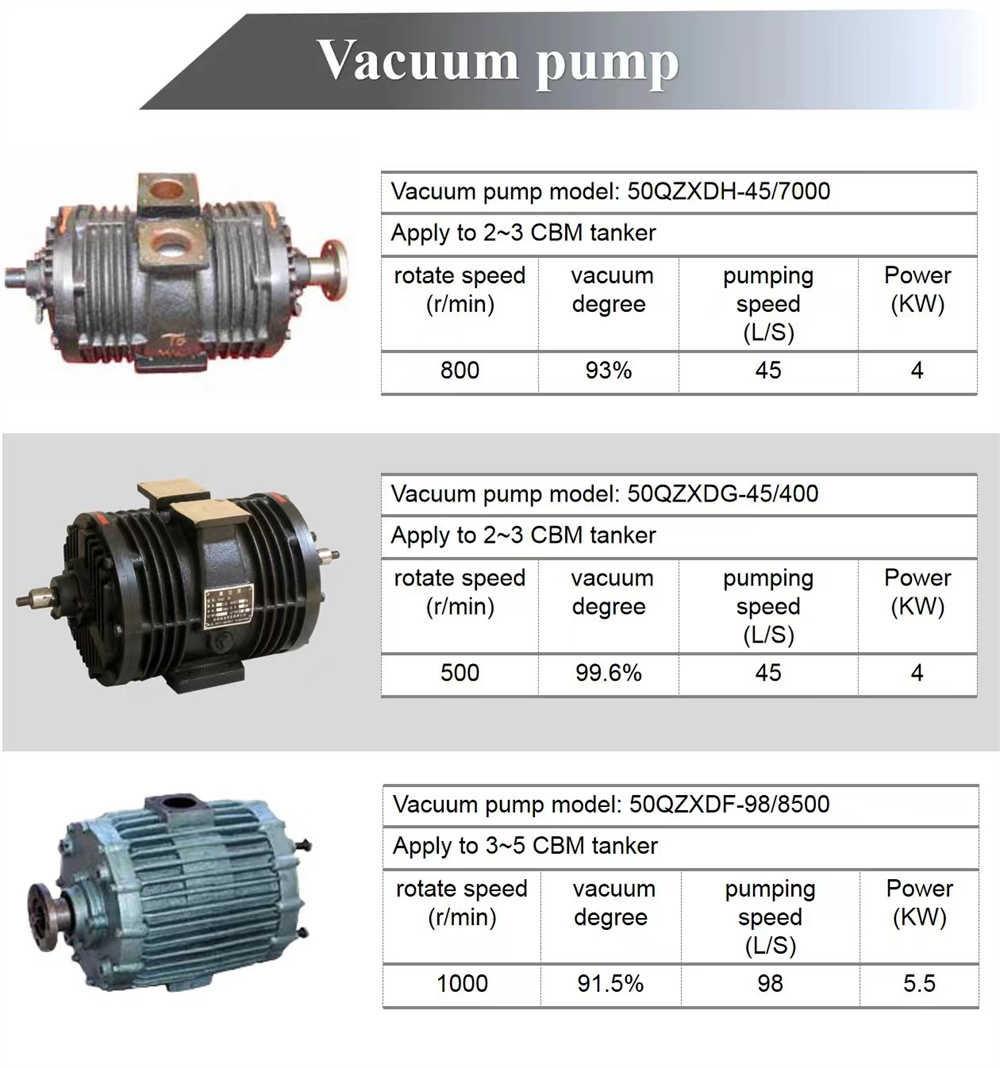

| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |

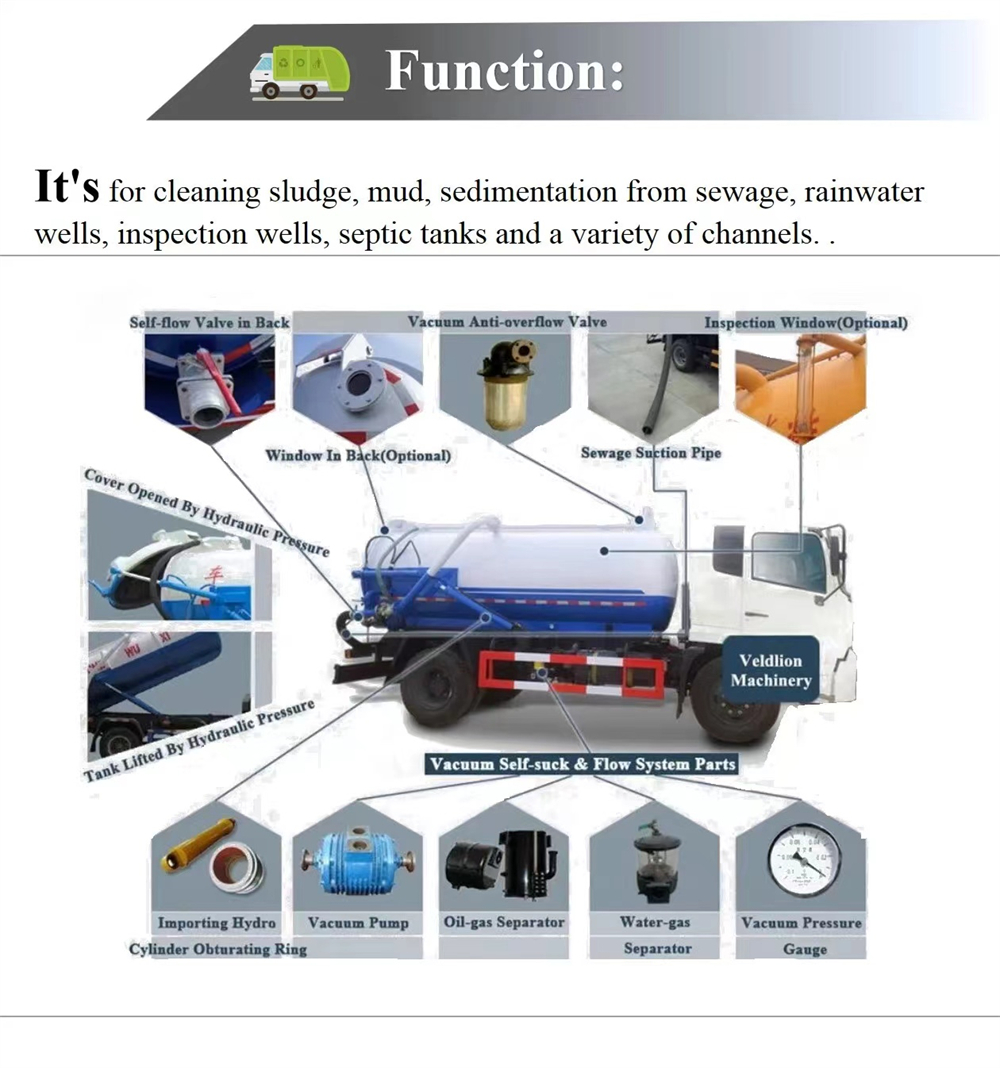

| Other key parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
Product Description:

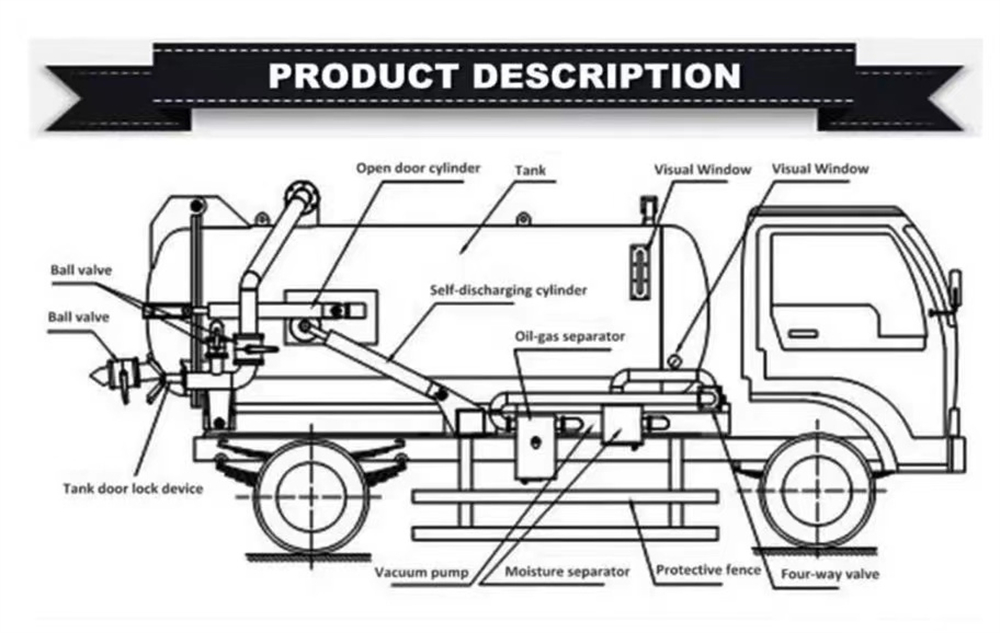

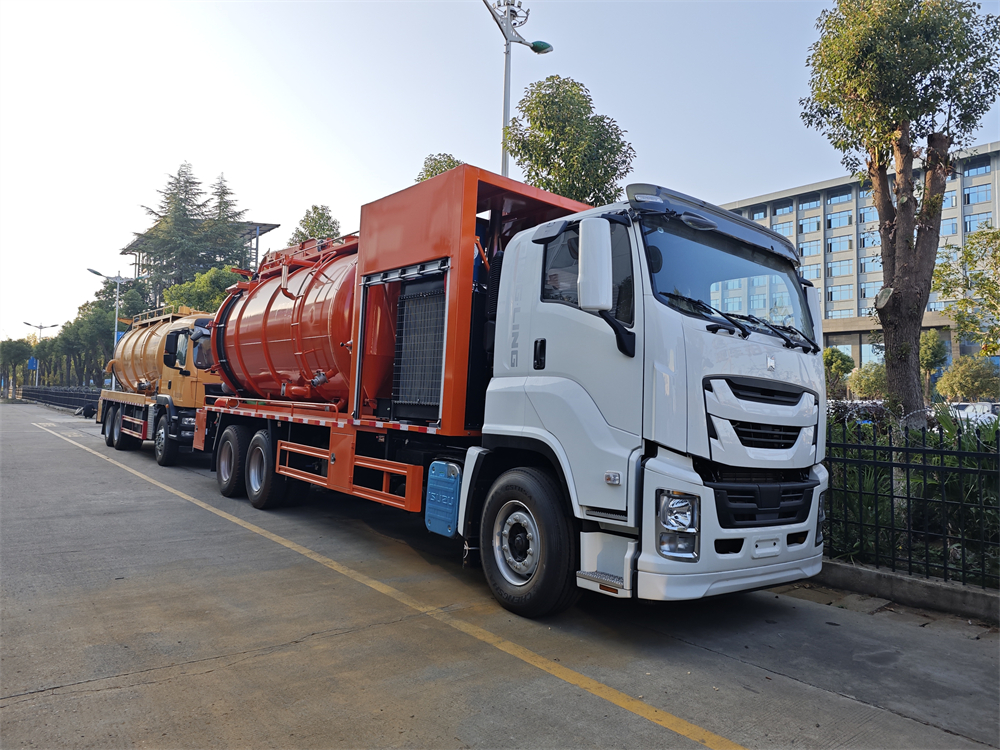

1. This ISUZU GIGA 6x4 9.3cbm Cleaning Sewage Suction Truck is mainly used for sewer cleaning and sewage suction. The main special devices are vacuum pumps and tanks.
2. The materials for side and rear protection are both Q235. The side protection is connected by welding and bolts, and the rear protection is connected by welding. The cross-sectional dimensions of the rear protection (height × width) (mm) are 320×50, and the lower edge is 500mm from the ground.

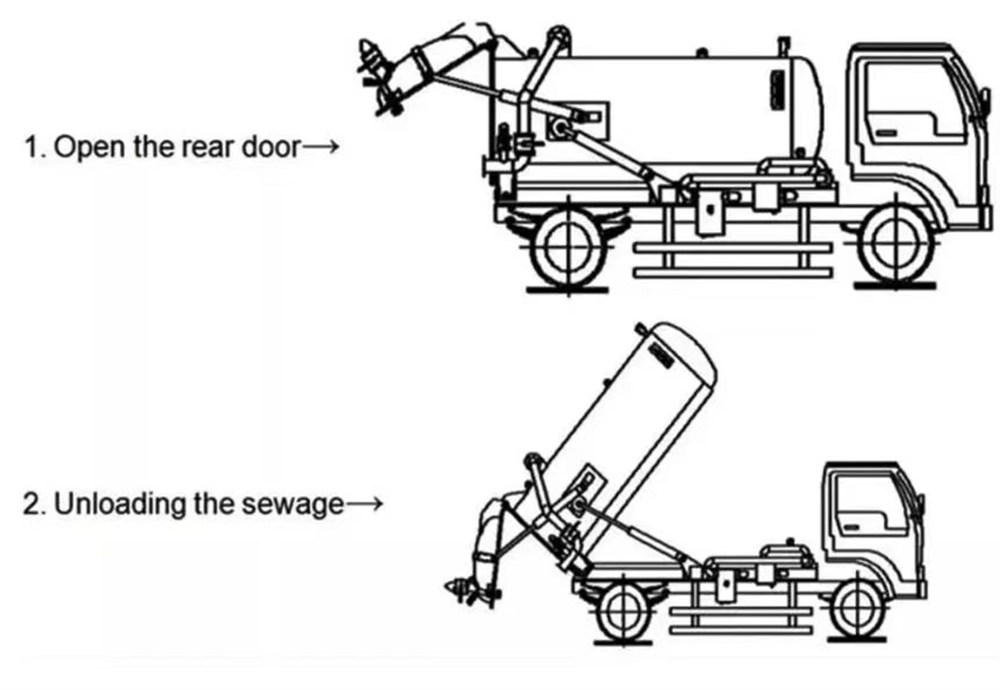

3. The tank's external dimensions are (length × diameter) (mm): 6100 (including a straight section length of 5400) × 2150. The front section of the tank is a clean water tank (with a straight section length of 2400mm); the rear section is a sewage tank (with a straight section length of 3000mm). The total capacity of the clean water tank is 7.82 cubic meters, and the effective volume is 7.45 cubic meters. The medium is water, and the density is 1000 kilograms per cubic meter. The total capacity of the sewage tank is 9.76 cubic meters, and the effective volume is 9.31 cubic meters. The medium is liquid sewage, and the density is 800 kilograms per cubic meter. The two tanks are independent and cannot be fully loaded at the same time. The clean water tank is used for cleaning functions, and the sewage tank is used for sewage suction functions. The tank has a lifting function.
4. Optional tank appearance, optional top tank opening style, optional rear appearance, and optional cover style.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
