Main Technical Parameters：
| Main Technical Parameter | |
| Model Name | CLW DongFeng sewage suction truck |
| Driving Type | 4x2 |
| Cabin | DongFeng Captain |
| Color | White |
| Weight | |
| Rated Payload Weight（kg） | 6485 |
| Curb Weight(kg) | 7380 |
| GVW(kg) | 14060 |
| Dimensions | |
| Wheelbase(mm) | 3800 |
| Overall Dimension(mm) | 6870x2360x3150 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | B170 33 |
| Engine Type | Four-stroke,Pressurized intercooler |
| No. of Cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9L |
| Max.Output(KW) | 125kw(170hp) |
| Drive Line | |
| Transmission | FAST:6J85TA,6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front Axle | 4.86 tons(MAN technology) |
| Rear Axle | 9.2 tons(MAN Technology) |
| Tire Specification | |
| Tire Specification | 8.25R20 16PR;Standard tire;6 tires+1 spare tire |
| Sewage Suction Tank | |
| Sewage Tank Volume | 8.1m³ |
| Tank material | 4mm thickness,Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |

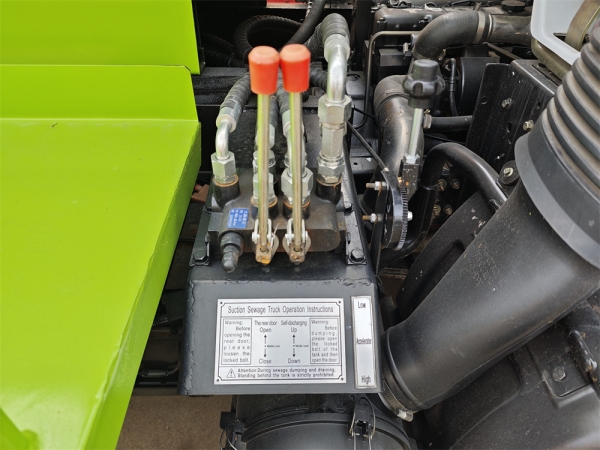

| Other key parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
Product Description:
1. Only using a chassis with a length of 3800mm, this vehicle is mainly used for suctioning, fishing out, and loading and unloading sludge in sewers. The main special devices are the tank body and the sewage suction assembly.
2. The total capacity of the tank is 8.36 cubic meters. The effective volume is 8.10 cubic meters. The medium is liquid dirt with a density of 800 kilograms per cubic meter. The tank body dimensions (length × diameter) (mm): 4600 (including a straight section length of 4000) × 1700. The tank body has a lifting function.
3. The materials for side and rear protection are both Q235. Both side and rear protections are connected by welding. The cross-sectional dimensions of the rear protection (height × width) (mm) are 120 × 50. The ground clearance of the lower edge of the rear protection is 470mm.
4. Optional tank appearances on the side and rear. Optional installation positions for air reservoirs and urea tanks as chassis accessories. Optional cabs according to the chassis.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
