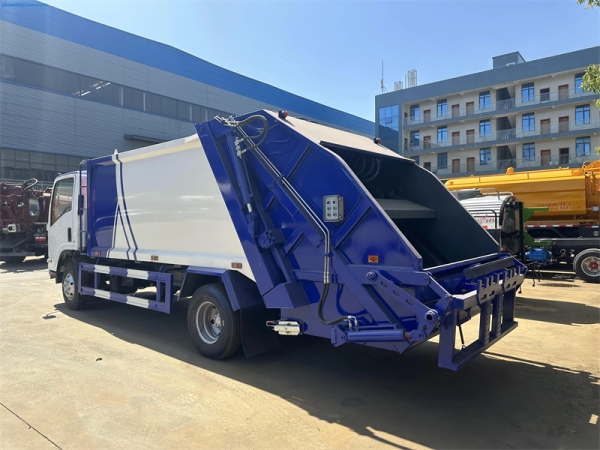

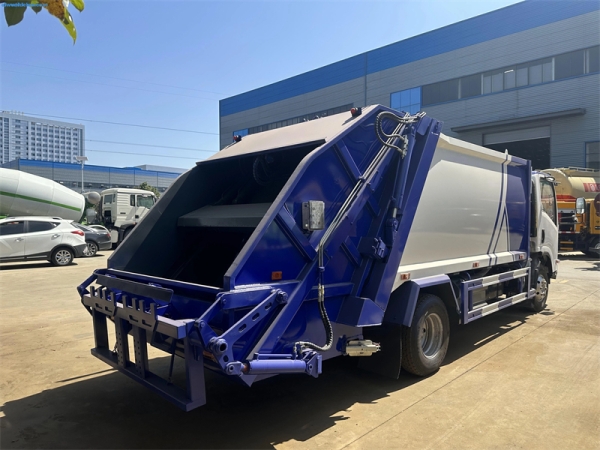

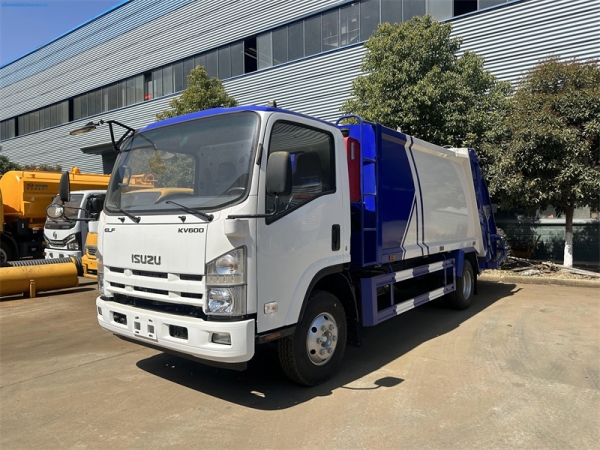

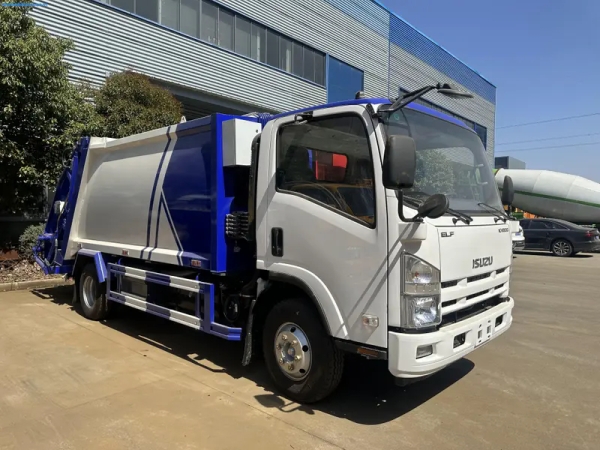

Technical Specifications of the CLW ISUZU 6cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand Isuzu 4x2 6cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 8280 |
| Rated Payload Weight(kg) | 2635 |
| Curb Weight(kg) | 5450 |
| Dimensions | |
| Wheelbase(mm) | 3365 |
| Front/Rear Overhang(mm) | 1120/1950 |
| Approach/Departure Angle | 23/12 |
| Overall Dimension(mm) | 6715x2200x2380 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | 4KH1CN6HB |
| Emission Standard | Euro 3 |
| Engine Type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of Cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 2.999 |
| Max. Output (kw) | 97(132hp) |
| Drive Line | |
| Transmission | 5 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front Axle | Dena 3 tons |
| Rear Axle | Dena 5.28 tons |
| Tire Specification | |
| Tire Specification | 7.50R16LT 14PR |
| Front Wheel Track(mm) | 1640, 1690 |
| Rear Wheel Track(mm) | 1655 |
| Number of Leaf Springs | 6/6+6 |
| Garbage Compactor Box | |
| Volume | 6 cbm |
| Raw Material | Q235, side is 4mm, and bottom is 5mm. |

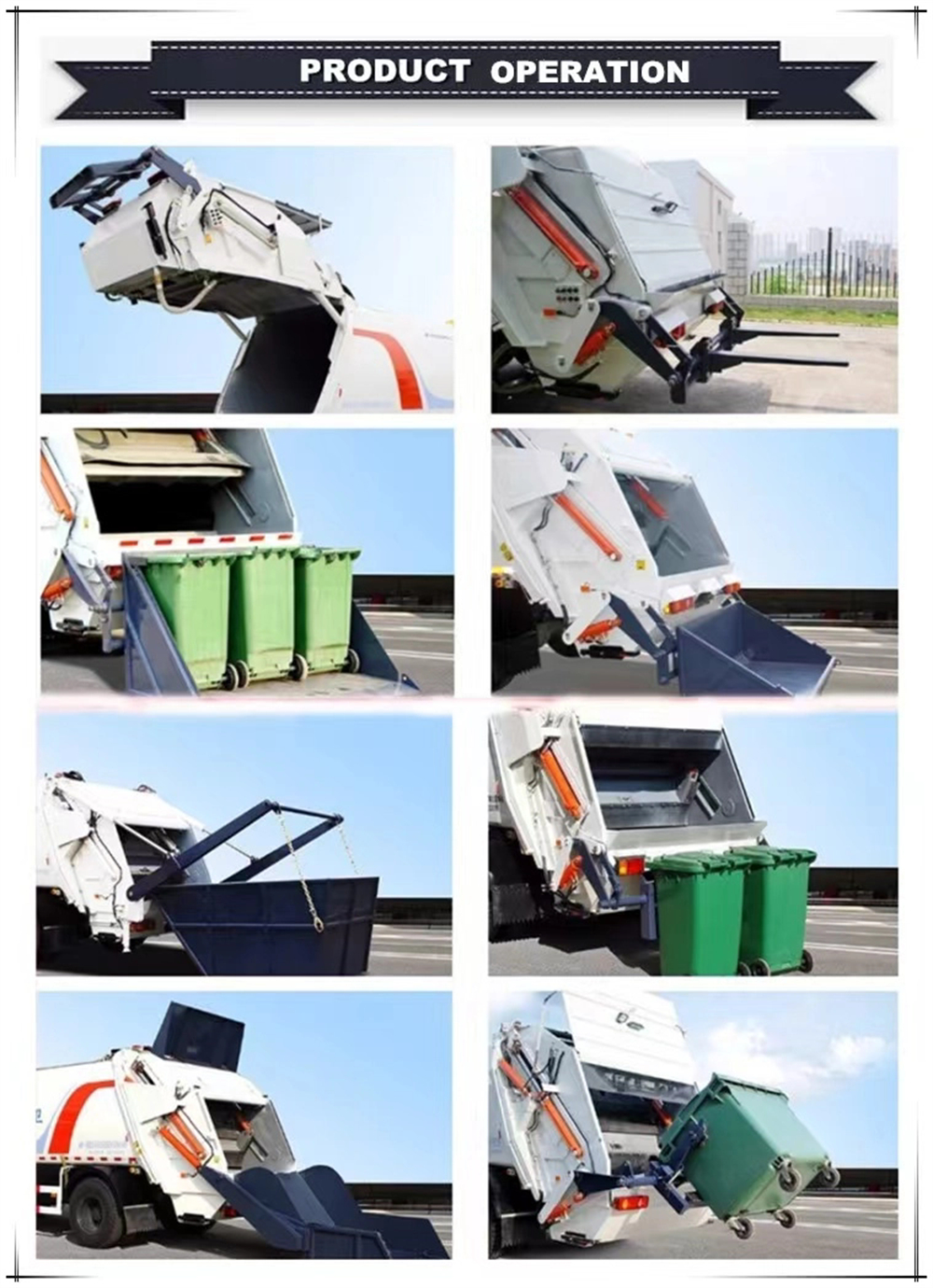

| Loading Method | 1.Optional rear-mounted bucker tipping mechanism(120L,240L,360L,660L nad 1100L) 2.Optional garbage hopper tipping mechanism |

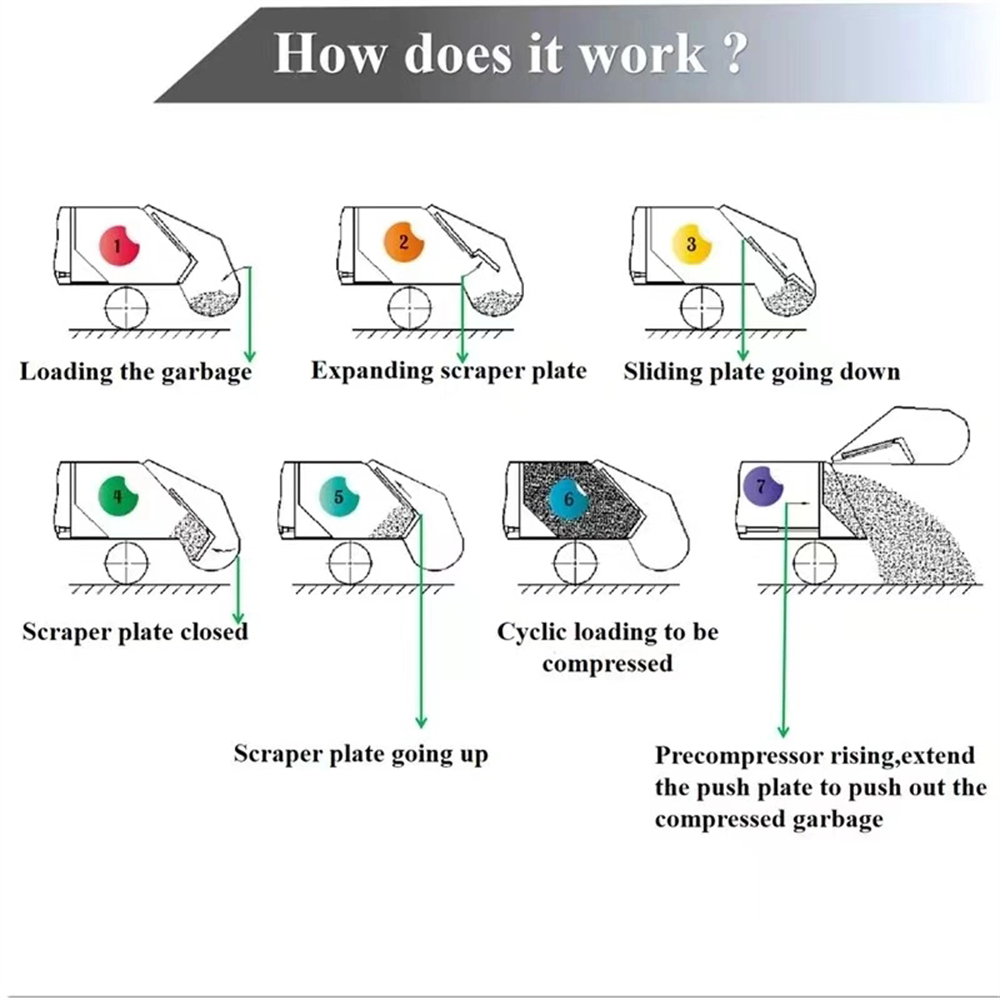

| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |

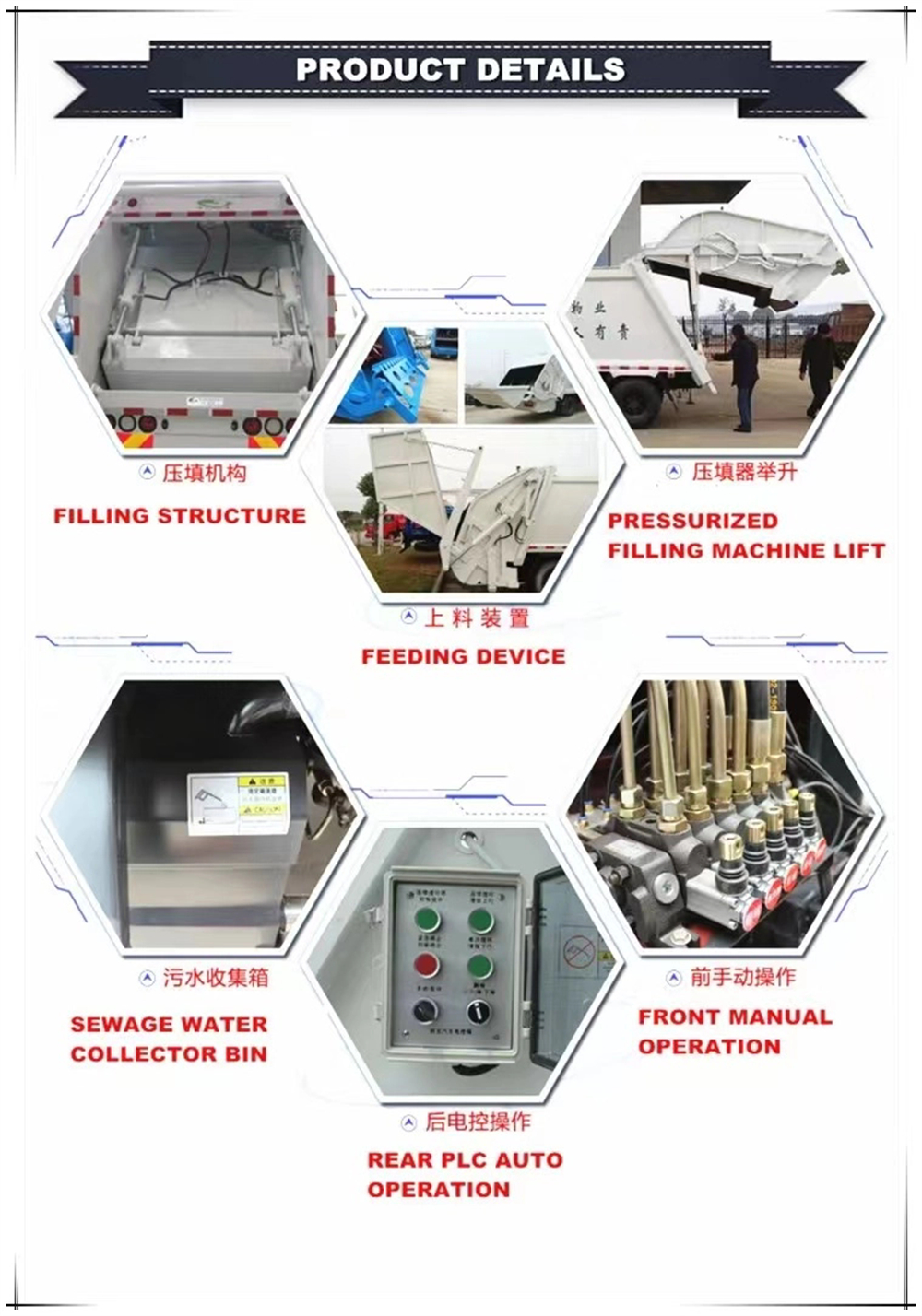

| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：

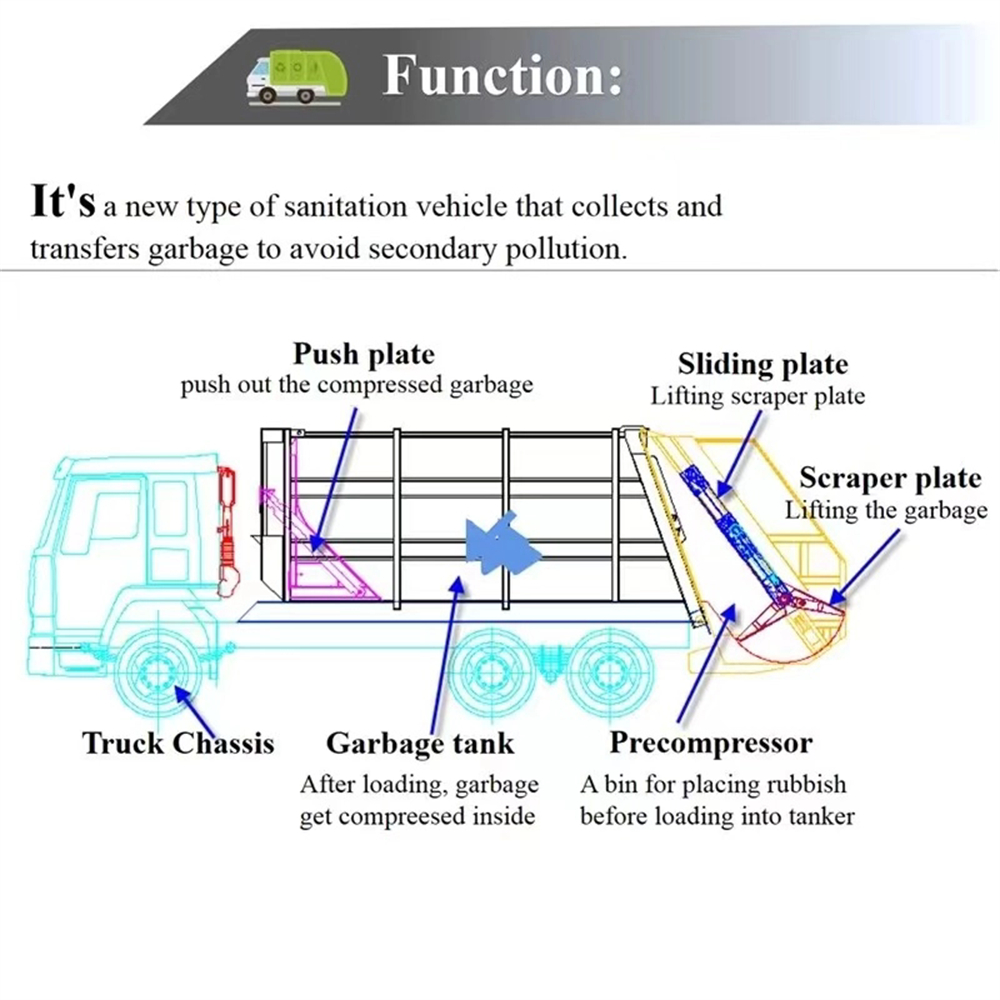

This vehicle is mainly used for the compression and transfer of domestic waste. The special device is a waste compression device.
When equipped with a flipping bucket device, its overall length is 7120mm with a rear extension of 685mm, and the curb weight is 5500kg. When equipped with a bucket device, its overall length is 6715mm with a rear extension of 280mm, and the curb weight is 5450kg.
Side protection material: aluminum alloy. Connection method: bolt connection. The rear protection is replaced by a special device. The ground clearance is 350mm.
Optional rear lamps. Oprional license plate installation position for flipping bucket types.
