Technical Specifications of the CLW 16cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand FAW JK6 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 18000 |
| Rated payload weight(kg) | 7305 |
| Curb weight(kg) | 10500 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8530x2550x3300 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | B210 33 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9 |
| Max. output (kw) | 155(210hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 6.5 tons |
| Rear axle | Dena 11.5 tons |
| Tire specification | |
| Tire specification | 10.00R20 18PR |
| Garbage compactor box | |
| Volume | 12 cbm |
| Raw material | T700L, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 160L and 1 unit 280L waste bins |

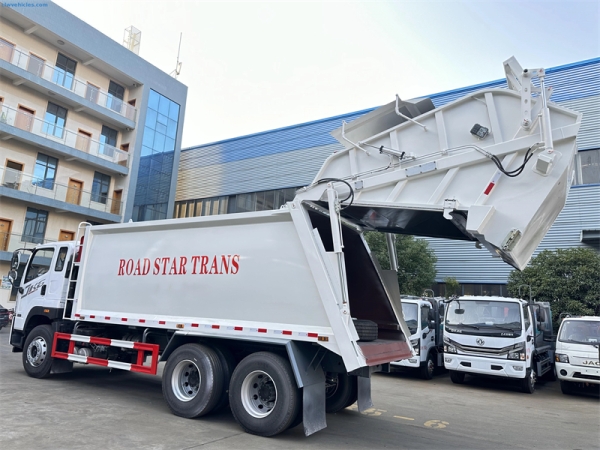

| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：
Optional cab can be selected according to the chassis. Optional box styles, flip bucket device, fully sealed cover structure, fully sealed bucket structure, semi-sealed bucket structure, swing arm device structure, structure without feeding device, and pneumatic cover structure can be selected. The side protection of this garbage compactor truck is made of cold-formed steel/Q235-B and connected by bolts. The rear protection is replaced by the rear flipping garbage bucket. The lower edge is 480mm from the ground. The cab of faw compressed garbage truck can be extended according to the chassis.
The compression mechanism is composed of a pressing plate welded by steel plates and channel steels, guide wheels, and an oil cylinder seat. Under the push of the oil cylinder, the garbage in the hopper is compressed into the carriage body. Compression cycle time: 25 - 30 seconds. Compression density: 0.6 - 0.8 tons/cubic meter. The discharging mechanism is composed of a discharging oil cylinder and a discharging push plate. The discharging push plate is welded by steel plates and brackets, positioned by a guide groove, and the garbage is discharged by the extension of the oil cylinder to push the discharging push plate. Garbage discharging time: 40 seconds.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
