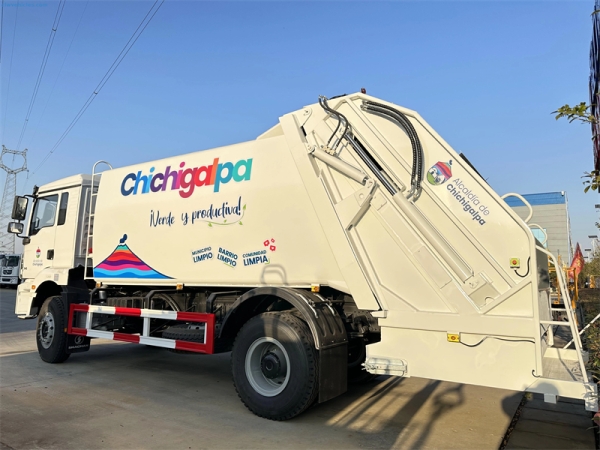

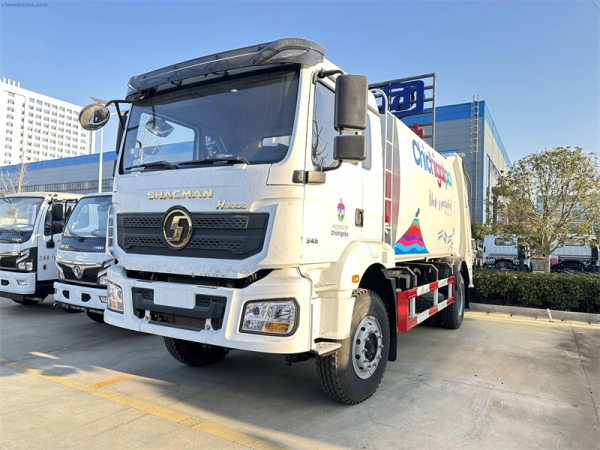

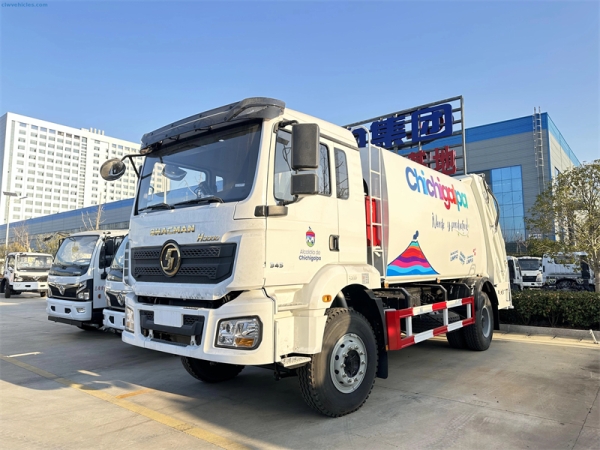

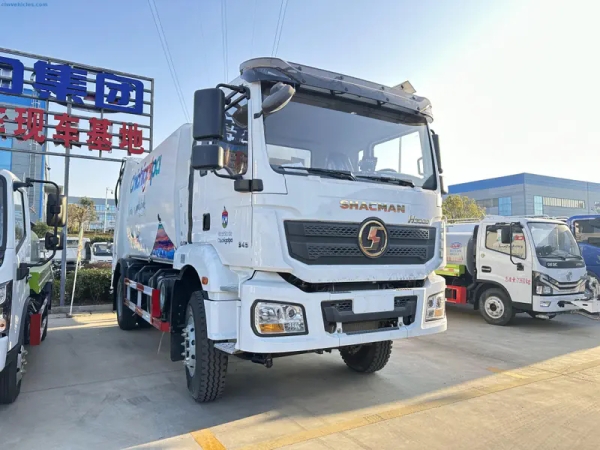

Technical Specifications of the CLW 12cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand Shacman H3000 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 18000 |
| Rated payload weight(kg) | 6955 |
| Curb weight(kg) | 10850 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8780*2550*3500 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | WP6.210E32 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 6.2 |
| Max. output (kw) | 155(210hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 6.5 tons |
| Rear axle | Dena 11 tons |
| Tire specification | |
| Tire specification | 10.00R20 18PR |
| Garbage compactor box | |
| Volume | 12 cbm |
| Raw material | T700L, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：
1. The main special devices of this vehicle consist of a box body and a compression system, and are used for the collection and transportation of domestic waste. Only leaf spring suspension is used. This vehicle can optionally be equipped with different box body appearances, a flip bucket device with different styles of sealing covers, a flip bucket device, a swing arm device, a dump device, and a fully sealed bucket.
2. The side protection material is Q235 and is connected by bolts and welding. The rear protection is replaced by special devices. The height from the lower edge to the ground is 420mm.
3. Install a tachograph with satellite positioning function. Optional cab appearance of the same series along with the chassis.
4. A work light is optionally installed at the rear. This light only serves for illumination when working at night and cannot be lit during driving.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
