Technical Specifications of the CLW 16cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW brand 16cbm garbage compactor truck |
| Driving Type | 4×2, |
| Color | White color or based on client's request. |
| Weights | |
| Rated payload weight(kg) | 13000 |
| Curb weight(kg) | 5000 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8900*2480*3100 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | B190 33 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9L |
| Max. output (kw) | 140 (190HP) |
| Drive Line | |
| Transmission | DF brand: 6S900;6 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front axle | Dena 6 tons |
| Rear axle | Dena 10 tons |
| Tire specification | |
| Tire specification | 10R20 standard tire,6 tires+1 spare tire |
| Garbage compactor box | |
| Volume | 16 cbm |
| Raw material | Q345 carbon steel, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 660L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 01:00.8 |
| Crushing Force | 13 tons |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
| Others | The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box. |
| Camera | 2 units; one is for reverse image, and one is for checking the working condition. |

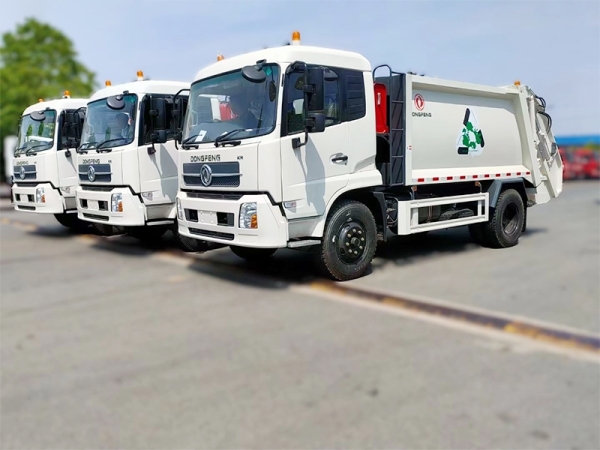

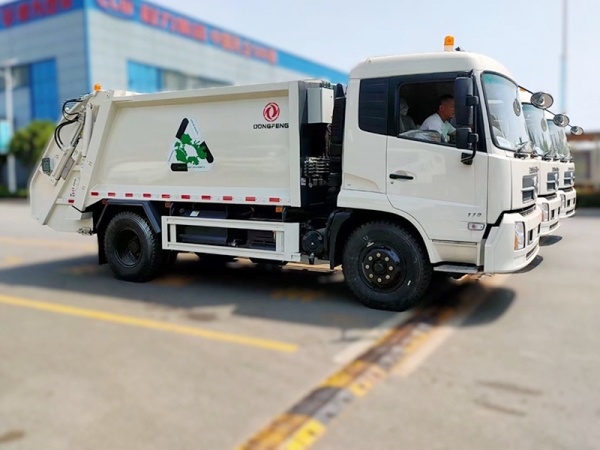

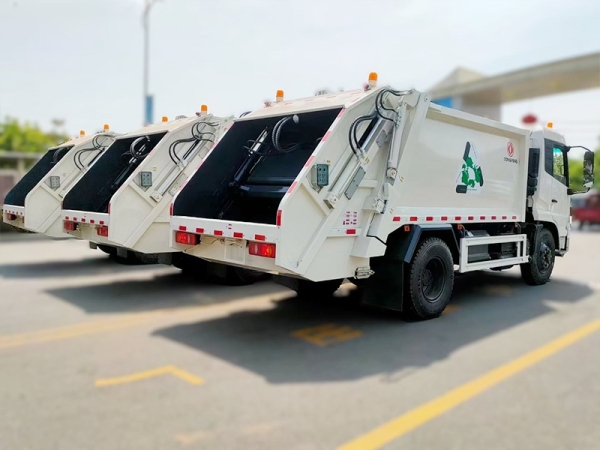

The upper part of this Dongfeng garbage compression truck is exquisitely and practically designed.
The volume of the garbage bin reaches 16cbm, providing ample space for garbage collection and transportation.
The tank is made of Q345 carbon steel, which has relatively high strength and toughness and can withstand the pressure and impact during the garbage compression process. The thickness of the side of the tank is 4 mm and the bottom is 5 mm. Such a thickness design ensures the firmness and durability of the tank.
In terms of compression performance, the compaction ratio of this vehicle is 1:0.75, meaning that it can efficiently compress garbage, significantly improving transportation efficiency and reducing transportation costs. The powerful compression force of 13 tons can tightly compact the garbage, increasing the amount of garbage transported in a single trip.
In addition, the vehicle is also equipped with a sewage tank, which is specifically used to collect the sewage generated during the garbage compression process to prevent secondary pollution caused by sewage leakage, further enhancing the environmental protection performance of the vehicle.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
