Technical Specifications of the CLW 16cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW brand 5.5cbm garbage compactor truck |
| Driving Type | 4×2 |
| Color | White color or based on client’s request. |
| Weights | |
| Rated payload weight(kg) | 7420 |
| Curb weight(kg) | 4380 |
| Dimensions | |
| Wheelbase(mm) | 3390 |
| Overall Dimension(mm) | 7003*2350*2750 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | D25TCIF1 |
| Emission standard | Euro 6 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 2.499 |
| Max. output (kw) | 110 (150HP) |
| Drive Line | |
| Transmission | WLY Brand;5 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 3.715 tons |
| Rear axle | Dena 8.28 tons |
| Tire specification | |
| Tire specification | 8.25R20 14PR |
| Garbage compactor box | |
| Volume | 5.5 cbm |
| Raw material | T700L, side is 3mm, and bottom is 3mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 660L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.75 |

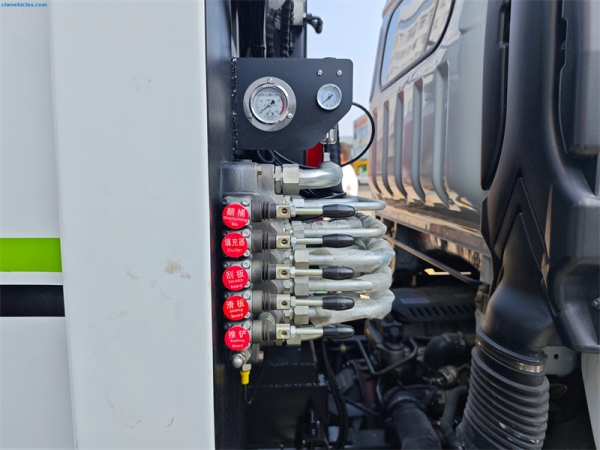

| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Advantages of 5.5cbm garbage compactor truck:
I. Efficient collection and compression
1. Moderate volume: The volume of 5.5 cubic meters can not only meet the garbage collection needs in a certain area, but also will not be limited in action on narrow roads or in small communities due to the excessive size of the vehicle. It can flexibly shuttle through the streets and alleys of the city and in old communities and other places with relatively cramped spaces, improving the efficiency of garbage collection.
2. Powerful compression: It can effectively compress garbage. The compaction ratio is considerable, which can greatly reduce the volume of garbage, increase the amount of garbage transported in a single trip, reduce the number of transports, and reduce operating costs.
II. Energy conservation and environmental protection
1. Good sealing performance: Good sealing performance can prevent the emission of garbage odors and sewage leakage, avoid secondary pollution to the surrounding environment, and protect the quality of urban air, soil and water sources.
2. Low fuel consumption: Relatively small vehicle body usually means lower fuel consumption. In the long-term use process, it can reduce energy consumption and carbon emissions, meeting the requirements of energy conservation and environmental protection.
III. Convenient operation
1. Simple control system: The operation control system of the vehicle is designed humanely and is easy to use. Operators can master it proficiently after simple training, improving work efficiency.
2. Low maintenance cost: The structure is relatively simple, and maintenance is more convenient. The replacement cost of parts is relatively low, saving later maintenance costs for users.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
