Product Description:

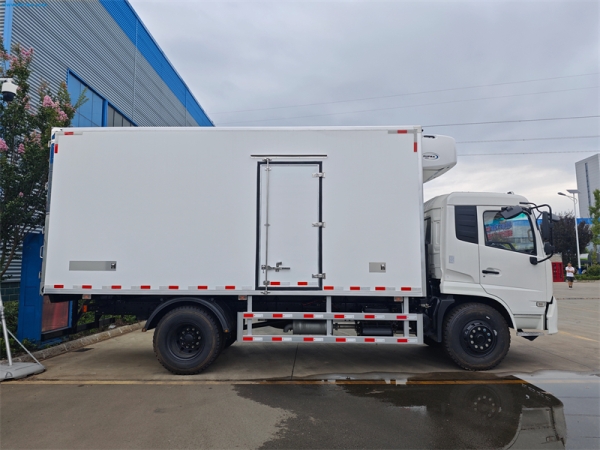

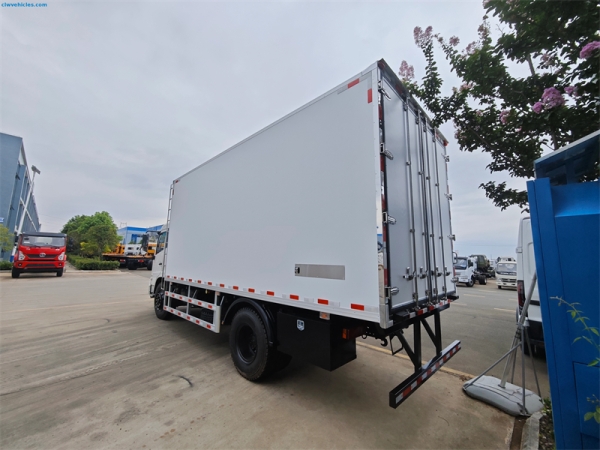

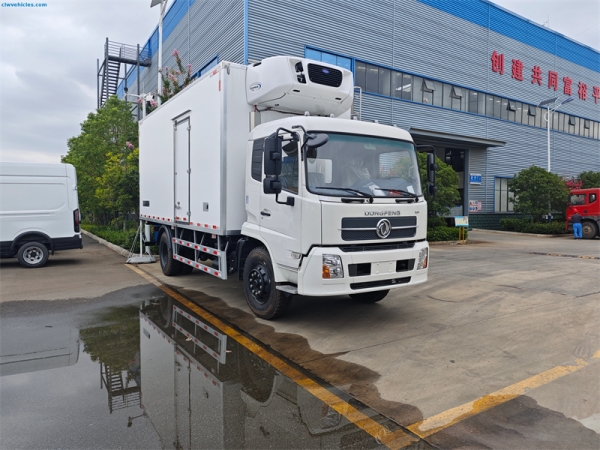

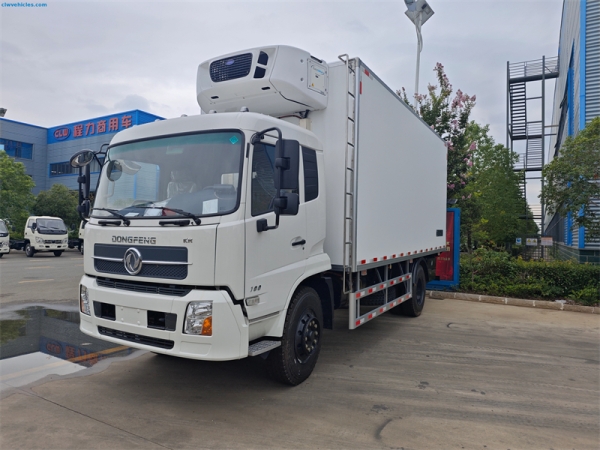

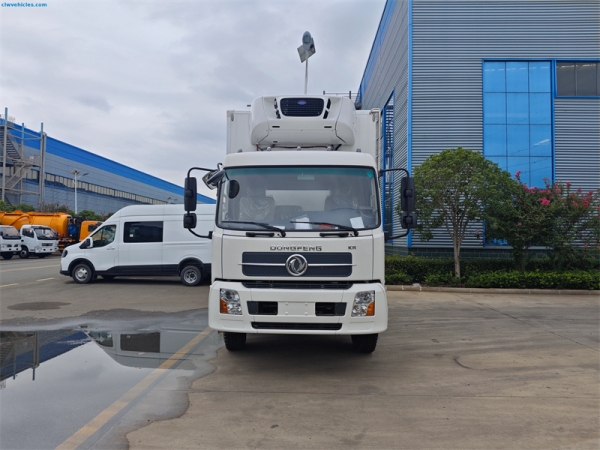

This reefer truck is based on the Dongfeng KR 4x2 chassis and is equipped with 10.00r20 18pr tires. The overall vehicle size is 8450×2600×3700mm, and the wheelbase reaches 4500mm. Its power is provided by the b190 33 engine, with 190 horsepower and a displacement of 5.9L.
The upper-mounted part mainly includes a cargo box and a refrigeration unit. The size of the cargo box is 6080×2440×2450mm, providing a large refrigerated space.
This refrigerator truck has a variety of optional configurations. For example, side doors can be optionally installed to facilitate the loading, unloading, and taking and placing of goods and improve the convenience of operation.
A tailgate can also be optionally installed. The weight of the tailgate is 550kg, which can effectively reduce the labor intensity of loading and unloading goods and improve work efficiency.
The refrigeration unit uses Carrier supra850, with a refrigeration capacity of 7800w and an air supply volume of 2500cmh. It can quickly and effectively reduce the temperature inside the cargo box to ensure that the goods are always in a suitable low-temperature environment during transportation and ensure the freshness and quality of the goods. In short, this Dongfeng KR 4*2 refrigerated truck is relatively excellent in performance and configuration and can meet the needs of various refrigerated transportation.
Main Technical Parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 7880 | |
| Loading Weight(kg) | 9925 | |
| Overall Dimension(mm) | 8450*2600*3700 | |
| Wheelbase(mm) | 4200 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFH1180BX2 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B190 33 |
| HP | 190 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 5900/140 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 640 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 10.00R20 18PR | |
| Van | Box Size(mm) | 6080*2440*2450 |
| Material | Fiberglass | |
| Insulating Layer | 8cm Polyrethane Foam | |
| Refrigerator | Brand | Carrier |
| Applicable Temperature | -18°~0° | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Optional tailgate：
The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
