Product Description:

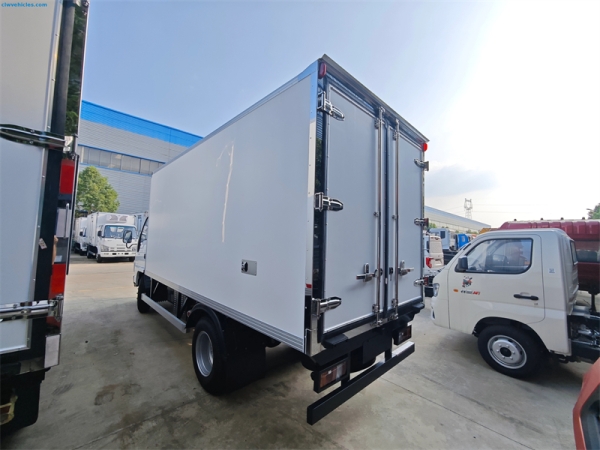

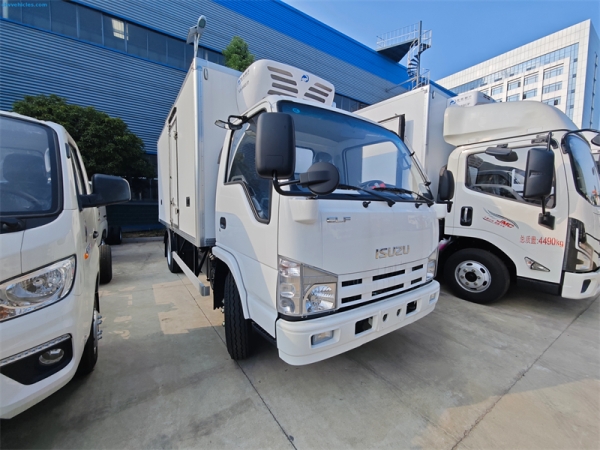

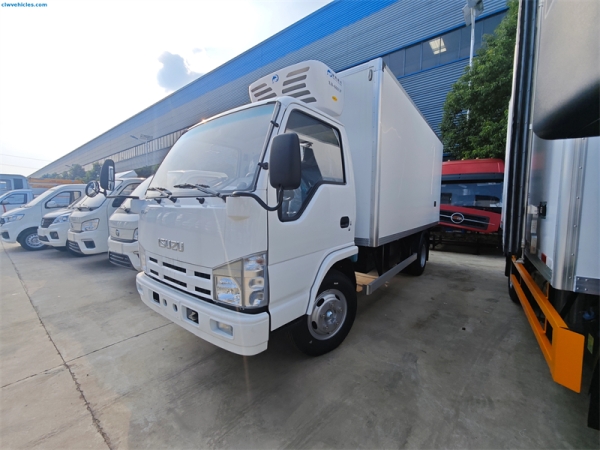

This ISUZU ELF 4x2 Cooling Reefer Truck is based on the reliable Isuzu ELF chassis and has excellent stability. The equipped 8.25R20 14PR tires can adapt to various road conditions and provide strong support for vehicle driving. The overall vehicle size is 8970x2260x3210mm, which is relatively flexible when driving on the road.
Its power comes from the 4KH1-TCG61 engine, which has strong power of 190 horsepower and a power of 139kW. With abundant power, it can meet various needs of refrigerated transportation.

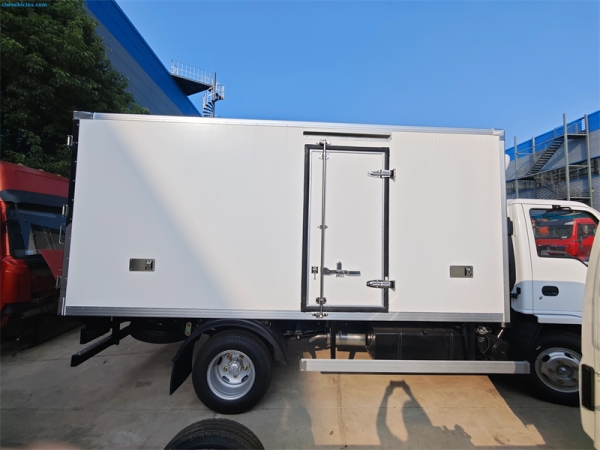

The cargo box size of the upper part is 6860x2100x2000mm, providing a large storage space for goods. The top of the carriage is closed and cannot be opened, ensuring the stability of the refrigerated environment. The protective material is Q235A carbon steel, with firm and reliable connection. The left and right sides are connected to the bottom of the box body by bolts, and the rear protection is also connected to the frame by bolts.
The rear protection cross-section size is 140×50mm, and the height of the rear protection from the ground is 460mm, providing good protection for the vehicle. In addition, a side door can be optionally installed to facilitate the loading and unloading of goods. The height of 3410mm or 3210mm can be optionally installed for the subframe of the chassis, and the cab color can be optionally installed according to the chassis. When the engine 4HK1-TCG61 is selected, the fuel consumption value is 17.8L/100km.
Refrigeration units of other models with equivalent power can also be optionally installed to meet the personalized needs of different users. Whether transporting fresh food or pharmaceutical products, etc., this Isuzu refrigerated truck can provide safe and reliable refrigerated transportation services.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 10550 | |
| Curb Weight(kg) | 5805 | |
| Loading Weight(kg) | 4550 | |
| Overall Dimension(mm) | 8970*2260*3210 | |
| Wheelbase(mm) | 3815 | |
| Axle Load(kg) | 3500/7050 | |
| Top Speed(km/h) | 105 | |
| Chassis Brand | ISUZU | |
| Chassis Model | QL1110ANPAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1-TCG61 |
| HP | 190 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(ml/kw) | 5193/139 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 640 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 8.25R20 14PR | |
| Van | Box Size(mm) | 6860x2100x2000 |
| Material | Fiberglass | |
| Insulating Layer | 8cm Polyrethane Foam | |

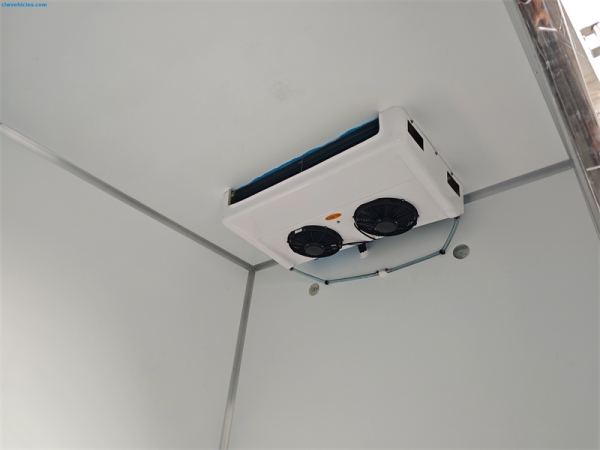

| Refrigerator | Model | XH-660UP |
| Applicable Temperature | -15°~15° | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Optional tailgate：
The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
