Product Description:

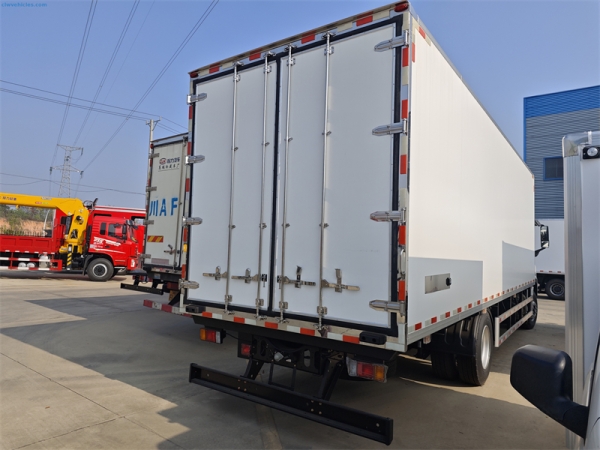

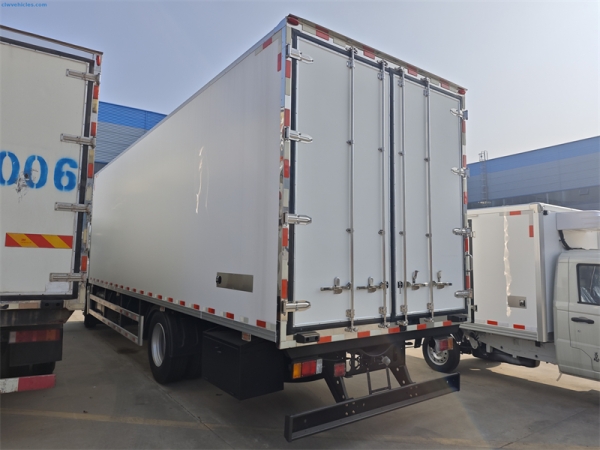

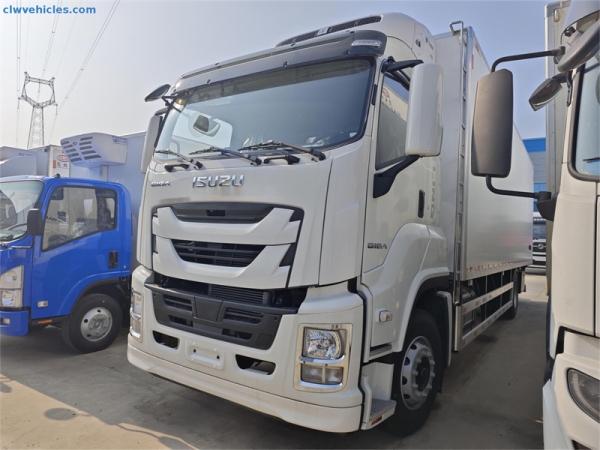

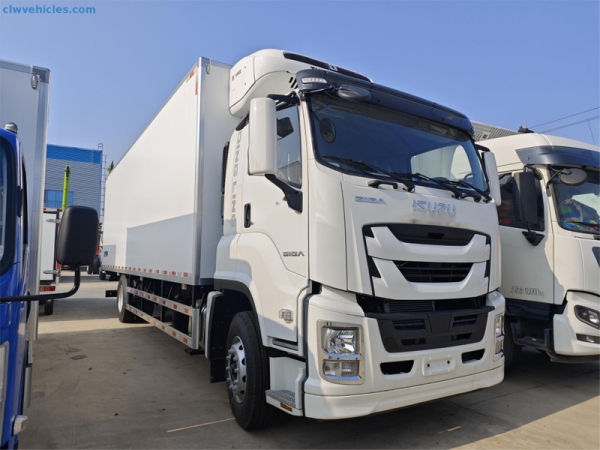

This ISUZU 4x2 Refrigerator Truck has the following characteristics:
The main special devices are the compartment body and the refrigerating unit.
The top of the cargo compartment is closed and cannot be opened. The cab can be optionally installed according to the chassis. External markings, bumper styles and after-treatment protective covers can be optionally installed. The types of side compartment doors can be optionally installed. The styles of the rear door can be optionally installed. Refrigeration units with the same refrigeration capacity can be optionally installed.
A hydraulic tailgate can be optionally installed. When the rear hydraulic tailgate is in the retracted state, its length is 280 mm, and the total mass of the hydraulic tailgate is 450 kilograms. When the hydraulic tailgate is installed, the rear protection adopts cold-formed steel/Q235-B, with welded connection. The diameter of the rear protection is 120 mm, and the height of its lower edge from the ground is 500 mm. The side protection adopts cold-formed steel/Q235-B, with bolted connection. When there is no hydraulic tailgate, the rear protection adopts cold-formed steel/Q235-B, with welded connection. The height dimension of the cross-section of the rear protection is 120 mm, the width dimension of the cross-section is 50 mm, and the height of its lower edge from the ground is 420 mm.
A speed-limiting device can be optionally installed, with a speed limit of 89 km/h.
Main Technical Parameters:
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU 4x2 Cooling Reefer Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 18000 |
| Rated Payload Weight(kg) | 9905 |
| Curb Weight(kg) | 7900 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Front/Rear Overhang(mm) | 1335/3115 |
| Approach/Departure Angle | 15/13 |
| Overall Dimension(mm) | 9200x2550x3950 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 4HK1-TCG60 |
| Engine Type | In-line, four cylinders, turbocharged with intercooler |
| Rated Torque(Nm) | 647 |
| Rated Speed(rpm) | 2600 |
| Max.Output(kw) | 5193(205hp) |
| Drive Line | |
| Transmission | 6 forwards,1 reverse gear,MLD-6Q |
| Steering | Power steering |
| Axle | |
| Axle | 6500/11500 |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1990 |
| Rear Wheel Track(mm) | 1855 |
| Number of Leaf Springs | 7/7+7, 3/4+4 |
| Upper Body | |
| Van Box Size(mm) | 6800x2410x2500 |
| Box Material | Fiberglass |
| Insulating Layer | 8cm polyurethane foam |
| Refrigerator Brand | Thermo King |
| Applicable Temperature | -20~+30°C |
| Air Volume(m³/h) | 3000 |
| Air Speed(m/s) | 3.3 |
| Remark | Part Optional:Ventilation Slot |
| Hook | |
| External power supply | |
| Side Door | |
Optional tailgate：
The roof of the carriage is closed and cannot be opened. The front mask, front combination lamps, front bumper can be selected according to the chassis. Mirrors and a one-and-a-half-row cab can be selected. A deflector and side doors can be selected. The side door can be a single door, double door or no door, and a built-in refrigeration unit can be selected. Insulated composite panels can be selected. Door locks can be selected as 2 bars and 2 locks or 4 bars and 4 locks.

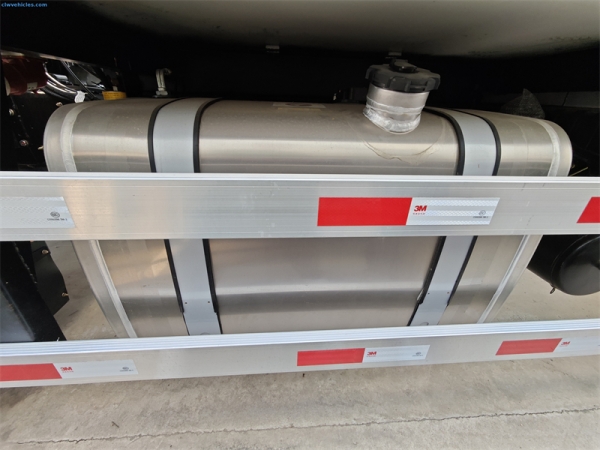

Fuel tanks, batteries, urea tanks, and air storage cylinders can be selected for left and right installation positions according to the chassis. A hydraulic tailgate can be selected. The horizontal length of the retracted state is 290mm, and the mass of the hydraulic tailgate is 450kg. The materials of the side and rear lower protective devices are Q235 and are connected to the frame by bolts. The cross-sectional dimensions of the rear lower protective device (mm): 120×60. Ground clearance: 450mm. When a hydraulic tailgate is selected, the rear protection is three-segmented and welded to the frame. Other models of refrigeration units with equivalent power can be selected.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
