Product Description:

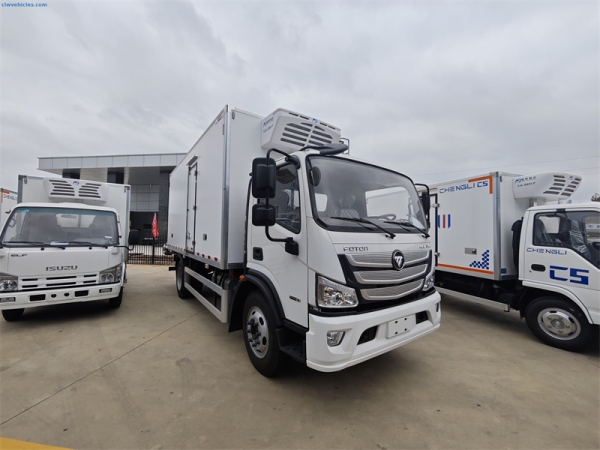

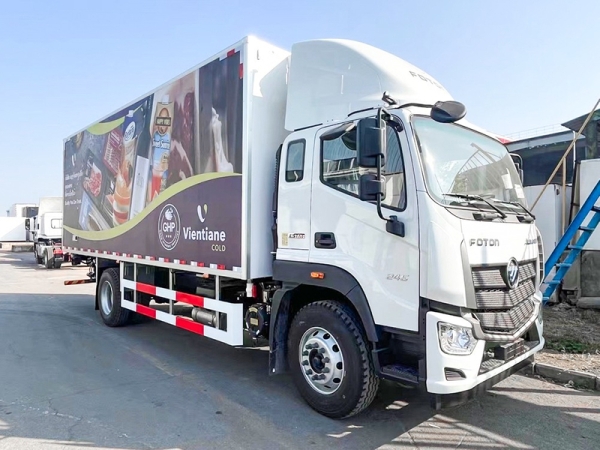

This Foton Aumark 4x2 Cooling Reefer Truck has the following characteristics:
1. Cargo Compartment Configuration:

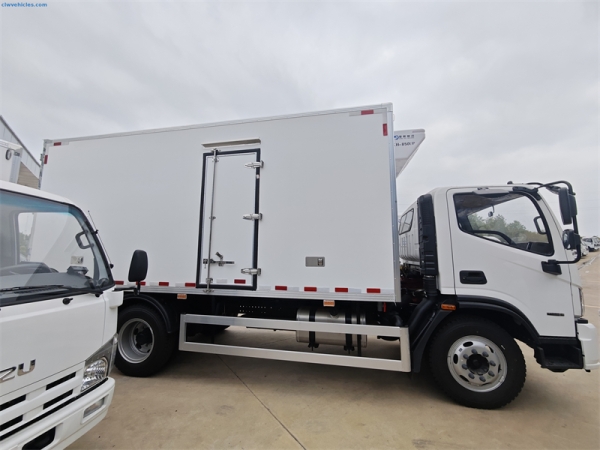

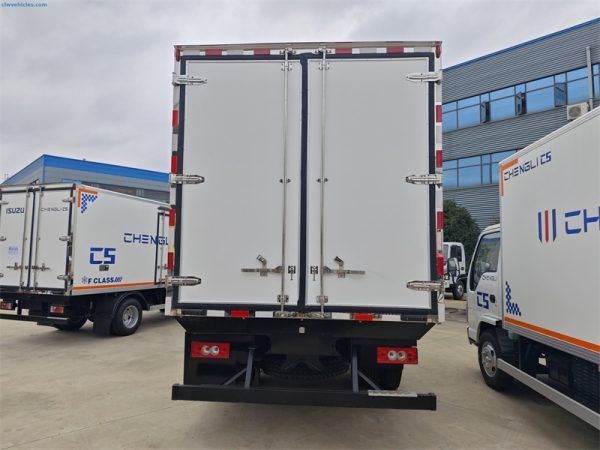

- The top of the cargo compartment is closed and non-openable. Side door options include single, double, or no side doors on both sides. Independent double-row doors are also available as an option. Rear three-opening doors can be selected. Refrigeration units with the same power are available optionally, with potential variations in appearance and shape. Cab enclosure styles and side protection styles are also available for selection.
2. Protection Structure Details:
- The side protection is connected to the crossbeam of the cargo box by bolts. The material of the side protection is cold-rolled sheet B-1.5-GB/T 708. The rear protection is connected to the longitudinal beam of the vehicle frame by bolts. The material of the rear lower protection device is 510L.
3. Rear Protection Specifications:
- The cross-sectional dimension of the rear protection device is 120 mm × 60 mm. The height of the rear protection from the ground of the vehicle can be 410 mm, 430 mm, 450 mm, 470 mm, or 480 mm. A circular tube cold-rolled - Q235B - 6.0 option is available for the rear protection. The connection method is bolt connection. In one specific option, the cross-section of the rear protection device has a diameter of 120 mm and a height from the ground of 480 mm.
4. Optional Equipment:
- A left fuel tank is available as an option. A hydraulic tailgate can be selected. The mass of the tailgate is 550 kg. The horizontal length of the hydraulic tailgate in the retracted state is 280 mm. New front lamp styles, integrated rear-view mirrors, LOGO markings, and different fuel tanks are also available optionally.
Main Technical Parameters:
| Main Technology Parameter | |
| Model Name | CLW Brand Foton 4x2 Cooling Reefer Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 9990 |
| Rated Payload Weight(kg) | 4995 |
| Curb Weight(kg) | 4800 |
| Dimensions | |
| Wheelbase(mm) | 4200 |
| Front/Rear Overhang(mm) | 1225/2370 |
| Approach/Departure Angle | 19/10 |
| Overall Dimension(mm) | 7470x2370x3540 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | YCS04200-68 |
| Engine Type | In-line, four cylinders, turbocharged with intercooler |
| Rated Torque(Nm) | 720 |
| Rated Speed(rpm) | 2300 |
| Max.Output(kw) | 4160(200hp) |
| Drive Line | |
| Transmission | 6 forwards,1 reverse gear,MLD-6Q |
| Steering | Power steering |
| Axle | |
| Axle | 6500/11500 |
| Tire Specification | |
| Tire Specification | 6+1spare tire;10R22.5 16PR |
| Front Wheel Track(mm) | 1795 |
| Rear Wheel Track(mm) | 1800 |
| Number of Leaf Springs | 7/7+7, 3/4+4 |
| Upper Body | |
| Van Box Size(mm) | 5100x2200x2200 |
| Box Material | Fiberglass |
| Insulating Layer | 8cm polyurethane foam |
| Refrigerator Brand | HanXue |
| Applicable Temperature | ·-20~+30°C |
| Air Volume(m³/h) | 2600 |
| Air Speed(m/s) | 3 |
| Condenser Dimension(mm) | 1300x540x465 |
| Evaporator Dimension(mm) | 1376x622x253 |
| Remarks | Part Optional:Ventilation Slot |
| Hook | |
| External power supply | |
| Side Door | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
