Product Description:

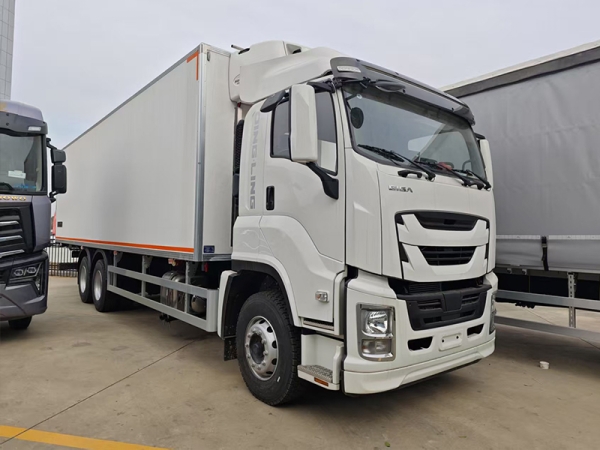

This ISUZU 6x4 Refrigerator Truck has the following characteristics:
The top of the cargo compartment is enclosed and non - openable. The cab can be selected according to the chassis. External signs, bumper styles, and after - treatment protective covers can be optionally installed. The types of side box doors and rear door styles can also be selected.
Refrigeration units with the same cooling capacity can be selected.
A hydraulic tailgate can be optionally installed. When the rear hydraulic tailgate is retracted, its length is 280mm, and the total mass of the hydraulic tailgate is 450 kg. When installing the hydraulic tailgate, the rear protection is made of cold - formed steel / Q235 - B and connected by welding. The diameter of the rear protection is 120mm, and the height of the lower edge from the ground is 500mm.
The side protection is made of cold - formed steel / Q235 - B and connected by bolts. When there is no hydraulic tailgate, the rear protection is made of cold - formed steel / Q235 - B and connected by welding.
The cross - sectional height of the rear protection is 120mm, the cross - sectional width is 50mm, and the height of the lower edge from the ground is 420mm.
A speed - limiting device can be optionally installed, with a speed limit of 89 km/h.
The main special devices are the compartment body and the refrigeration unit.
Main Technical Parameters:
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU 4x2 Cooling Reefer Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 13370 |
| Curb Weight(kg) | 11410 |
| Dimensions | |
| Wheelbase(mm) | 5700+1370 |
| Front/Rear Overhang(mm) | 1370/3500 |
| Approach/Departure Angle | 17/15 |
| Overall Dimension(mm) | 12000x2595x3920 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 6HK1-TCG60 |
| Engine Type | Exhaust gas turbocharging, air-to-air intercooling |
| Max.Output(kw) | 221(301hp) |
| Drive Line | |
| Transmission | 8 forwards,2 reverse gear,ZF8S2030TO |
| Steering | Power steering |
| Axle | |
| Axle | 7000/18000 |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR |
| Front Wheel Track(mm) | 2060 |
| Rear Wheel Track(mm) | 1855/1855 |
| Number of Leaf Springs | 7/10 |
| Upper Body | |
| Van Box Size(mm) | 9600x2440x2550 |
| Box Material | Fiberglass |
| Insulating Layer | 8cm polyurethane foam |
| Refrigerator Brand | Carrier |
| Applicable Temperature | ·-20~+30°C |
| Capacity on engine power 0°C (W) | 7800 |
| Capacity on engine power -20°C (W) | 4900 |
| Capacity on electrical stand by 0°C (W) | 6450 |
| Capacity on electrical stand by -20°C (W) | 4240 |
| Diesel High speed 18°C/-18°C (W) | 3360 |
| Standby 18°C/-18°C (W) | 1765 |
| (AMCA 21085) m3/hr | 2500 |
| Dimensions(WxHxD) (mm) | 888 x 1823 x 629 |
| Remark | Part Optional:Ventilation Slot |
| Hook | |
| External power supply | |
| Side Door | |
Optional tailgate：
The roof of the carriage is closed and cannot be opened. The front mask, front combination lamps, front bumper can be selected according to the chassis. Mirrors and a one-and-a-half-row cab can be selected. A deflector and side doors can be selected. The side door can be a single door, double door or no door, and a built-in refrigeration unit can be selected. Insulated composite panels can be selected. Door locks can be selected as 2 bars and 2 locks or 4 bars and 4 locks.

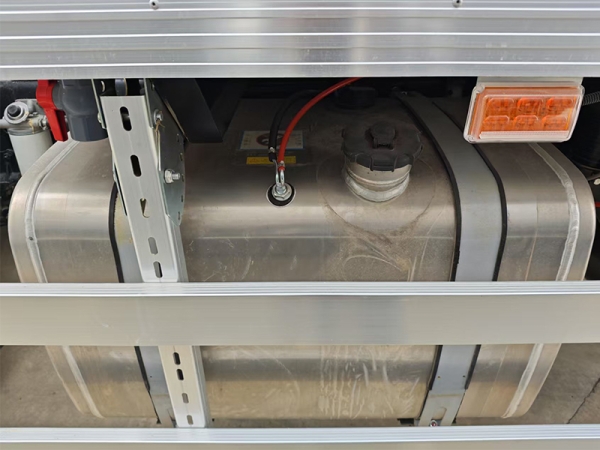

Fuel tanks, batteries, urea tanks, and air storage cylinders can be selected for left and right installation positions according to the chassis. A hydraulic tailgate can be selected. The horizontal length of the retracted state is 290mm, and the mass of the hydraulic tailgate is 450kg. The materials of the side and rear lower protective devices are Q235 and are connected to the frame by bolts. The cross-sectional dimensions of the rear lower protective device (mm): 120×60. Ground clearance: 450mm. When a hydraulic tailgate is selected, the rear protection is three-segmented and welded to the frame. Other models of refrigeration units with equivalent power can be selected.
