Product Description:

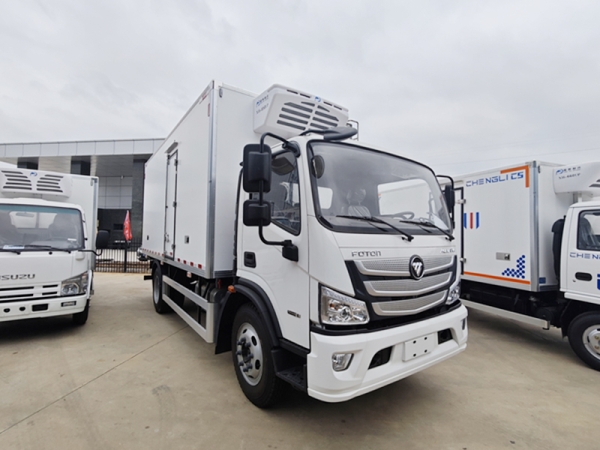

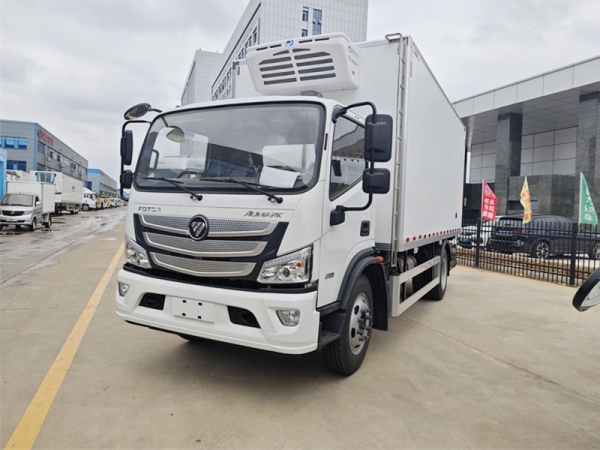

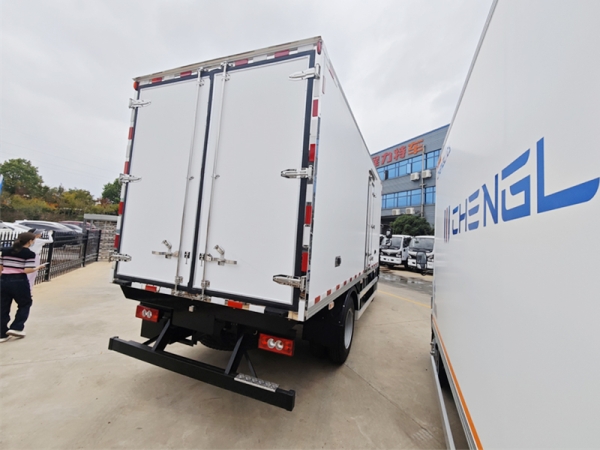

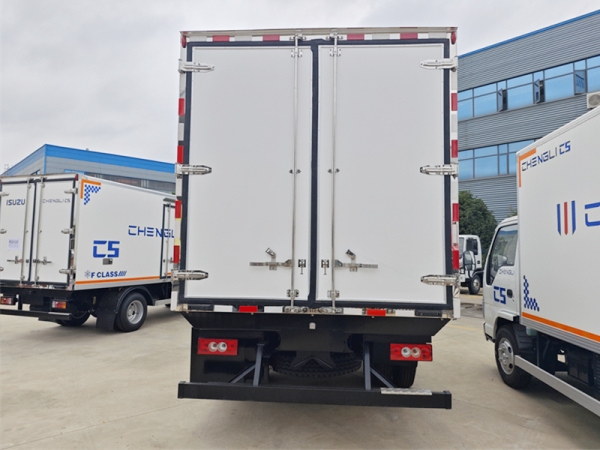

Foton Aumark 4x2 Cooling Reefer Truck:
The chassis adopts Foton Aumark 4x2 chassis. The tires used are 7.00r16lt 8pr. The overall vehicle size is 5995x2260x3150mm, with a wheelbase of 3360mm. The engine is f3.8ns6b156, with a horsepower of 156 and a displacement of 3.8L.
Upper-mounted device: Refrigeration unit and refrigerated box. The box size is 4080x2300x2300mm. The material of the bottom plate is fiberglass plate + insulation layer, with a thickness of 75mm; the material of the side plate is fiberglass plate + insulation layer, with a thickness of 80mmm.
The refrigeration unit is xh-850up. Refrigeration units of other models with the same power can be optionally installed.
Optional front surround style, optional front lamp style, optional urea tank and battery position. Optional rearview mirror. Optional air deflector; optional semi-cab; optional cargo box styles such as no side door, single side door and double side doors. Optional refrigeration units of the same power with different appearance shapes. Connection method of side protection device: bolt connection. The material of side protection device is cold plate B-1.5-GB/T 708. Optional side protection style. The materials of side protection device can be aluminum alloy 6061-T6 or FRP fiber composite material. The connection method of rear protection is bolt connection with the longitudinal beam of the frame. The material of the lower rear protection device is tube Q345A. The cross-sectional dimension of the rear protection device is a circle with a diameter of 100mm.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 4490 | |
| Curb Weight(kg) | 3200 | |
| Loading Weight(kg) | 1095 | |
| Overall Dimension(mm) | 5995*2260*3150 | |
| Wheelbase(mm) | 3360 | |
| Axle Load(kg) | 1570/2920 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | Foton | |
| Chassis Model | BJ1048V9JEA-FM6 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | F3.8NS6B156 |
| HP | 156 | |
| Emission Standard | Euro 6 | |
| Displacement/Output(ml/kw) | 3800/115 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 550 | |
| Maximum Torque Speed(rpm) | 1100-1900 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 7.00R16LT 8PR | |
| Van | Box Size(mm) | 4080*2300*2300 |
| Material | Fiberglass | |
| Insulating Layer | 8cm polyurethane foam | |
| Refrigerator | Brand | XH-850UP |
| Applicable Temperature | `-5~18°C | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Optional tailgate：
The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
